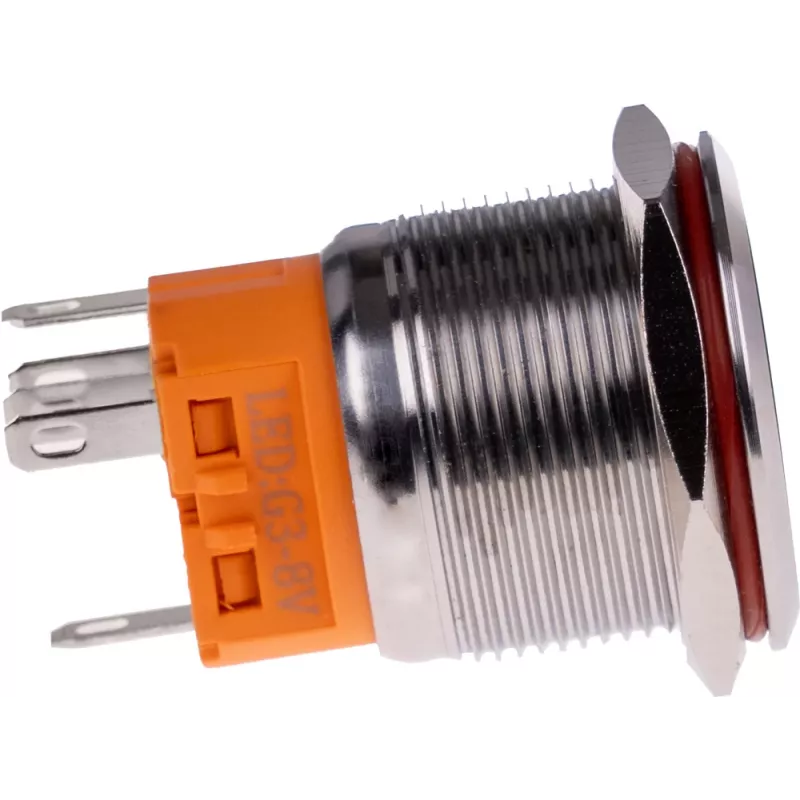

JOY-IT BUTTON22A-L-RD aretovaný tlačidlový spínač, 250 V AC, 3 A, SPST-NO, červený, IP67, IK10

In industrial control panels, a pushbutton that fails after a few hundred operations or lets in dust and moisture can bring a machine to a halt. The JOY-IT BUTTON22A-L-RD is a latching pushbutton switch built for reliable on/off control in demanding environments. Its 22 mm mounting cutout fits standard panel openings, while the red actuator provides clear visual status.

Who is it for

Panel builders, machine integrators, and maintenance technicians who need a robust, sealed switch for control circuits, operator stations, or equipment enclosures.

Main features

• Latching (maintained) action: press to switch on, press again to switch off.
• SPST-NO contact configuration: one normally open circuit.
• Rated for 250 V AC and 3 A, suitable for many control applications.
• IP67 rated: dust-tight and protected against temporary immersion.
• IK10 impact resistance: withstands high mechanical shock.
• Compact design: 24.80 mm overall diameter, 35 mm height.

Specifications

• Switch type: Pushbutton switch
• Switching action: Latching
• Contact configuration: SPST-NO
• Number of poles: 1
• Rated voltage (AC): 250 V
• Rated current (AC): 3 A
• Actuator colour: Red
• Mounting cutout diameter: 22 mm
• Overall diameter: 24.80 mm
• Overall height: 35 mm
• Ingress protection rating: IP67
• Impact protection rating: IK10
• Illumination: Non-illuminated
• Series: BUTTON22A

Tips

For a clean installation, use a 22 mm hole saw and ensure the panel surface is flat. The latching mechanism means no external holding circuit is required for maintained operation.
