JULTEC JAP307TSD anténna zásuvka 7 dB odbočná zásuvka programovateľná 1

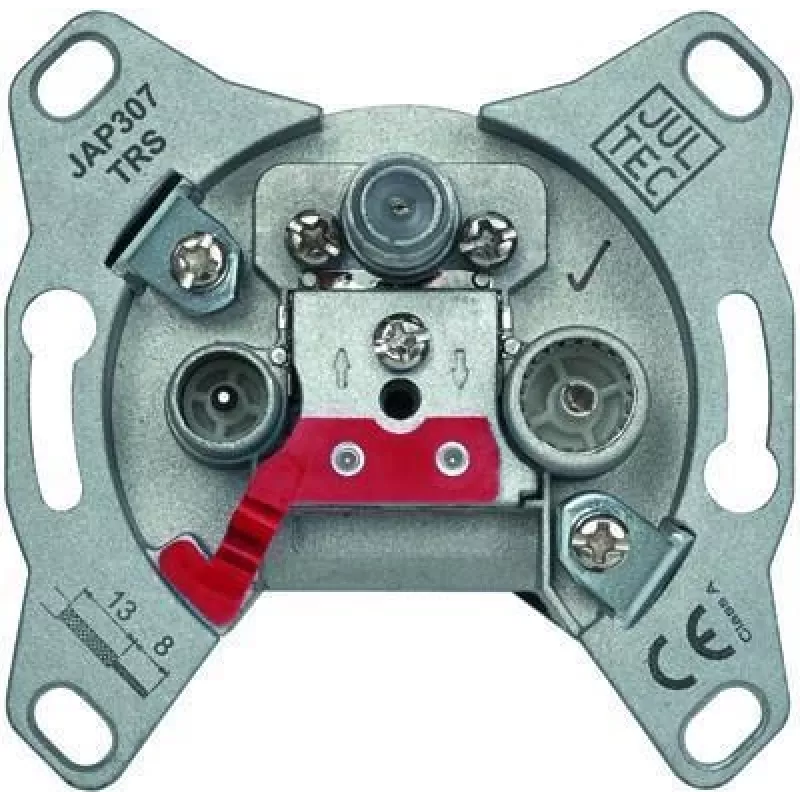

The JULTEC JAP307TSD is a high-performance antenna socket designed for modern multimedia installations. As a tap-off (Stichdose) socket, it provides three outputs for TV, Radio, and SAT signals, ensuring reliable signal distribution in flush-mount setups. With programmable return path attenuation and 7 dB SAT output attenuation, this socket offers flexibility for customizing signal levels. It supports return path frequencies from 5 to 65 MHz and DC pass on the SAT output up to 500 mA, making it suitable for powering external LNBs. The socket meets Class A shielding standards (EN 50083-2) for excellent interference protection.

Advantages

Programmable return path attenuation allows precise adjustment for optimal signal quality. The 7 dB SAT tap-off ensures minimal signal loss for satellite reception. Class A shielding guarantees robust performance in environments with high electromagnetic interference. DC pass capability simplifies powering of active components directly through the SAT output.

Suitable for

• Satellite (SAT-ZF) and terrestrial (DVB-T/T2) TV systems
• Digital cable (DVB-C) and radio distribution
• Multimedia and home networking installations requiring flush-mount sockets

Key specifications

• Product Type: Antenna Socket
• Socket Type: Tap-off (Stichdose)
• Number of Outputs: 3 (TV, Radio, SAT)
• SAT Output Attenuation: 7 dB
• TV/Radio Output Attenuation: 7.5 dB
• Frequency Range TV/Radio: 5 - 862 MHz
• Frequency Range SAT: 950 - 2400 MHz
• Return Path: Yes (5 - 65 MHz)
• Programmability: Yes (Return Path Attenuation)
• DC Pass on SAT: Yes (max. 500 mA)
• Shielding Class: Class A (EN 50083-2)
• Impedance: 75 Ohm
• Installation Type: Flush-mount (Unterputz)
• Connectors: F-type (SAT), Coaxial IEC (TV/Radio)

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. The programmable feature allows fine-tuning of return path attenuation to match specific installation requirements. Ideal for professional installers and DIY enthusiasts seeking reliable signal distribution.
