JULTEC JRM0912M multiswitch 9/12 kaskáda

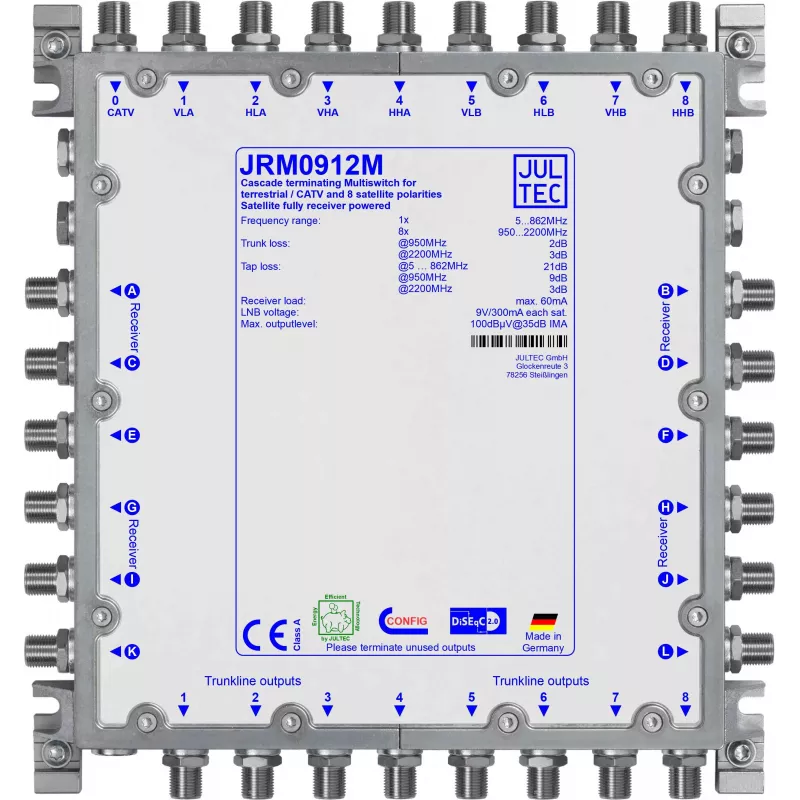

The JULTEC JRM0912M is a professional multiswitch designed for distributing satellite and terrestrial signals in multi-dwelling units. With 9 inputs (8 satellite, 1 terrestrial) and 12 subscriber outputs, it supports cascading for larger installations. The unit features active terrestrial path for subscriber outputs, ensuring optimal signal quality. Ideal for modern satellite TV distribution systems.

Advantages

High isolation between SAT and terrestrial paths (>30 dB) prevents interference. Supports DiSEqC 2.0 control and external power supply via JPS series or remote trunk. Compact design with low power consumption.

Suitable for

• Multi-dwelling units (apartments, hotels)
• Small to medium satellite distribution systems
• Installations requiring cascading of multiple multiswitches

Key specifications

• Inputs: 8 SAT (2 positions) + 1 terrestrial
• Outputs: 12 subscriber + 9 cascade (8 SAT, 1 terrestrial)
• SAT frequency range: 950-2150 MHz
• Terrestrial forward path: 47-862 MHz
• Terrestrial return path: 5-65 MHz
• Trunk loss: typ. 2 dB (SAT and terrestrial)
• Subscriber output gain: typ. 0 dB
• LNB supply voltage: 18V
• Control: DiSEqC 2.0, 13/18V, 0/22kHz
• Operating temperature: -20 to +50 °C

Recommendations

For optimal performance, use with JULTEC JPS series power supply. Ensure proper grounding and cable shielding. Suitable for indoor installation only.
