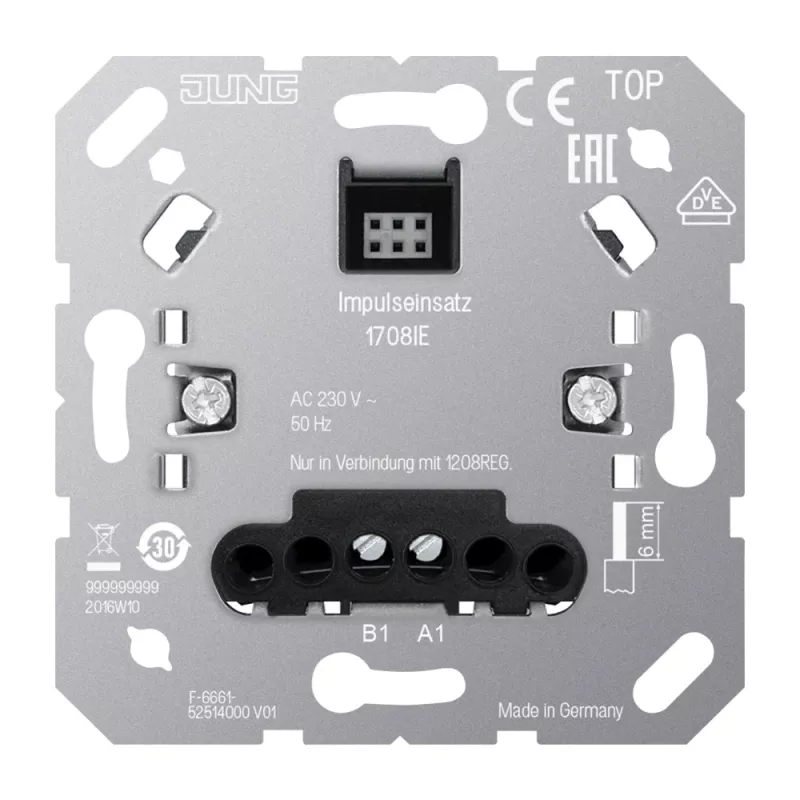

JUNG 1708IE impulzný spínač - vložka

Impulse switch insert for momentary contact control of lighting, blinds, door openers, and other devices. Provides a single normally open (NO) contact rated for 250 V AC and 10 A, making it suitable for a wide range of switching applications.

Advantages

Flush-mounted design with screw terminals for secure wiring. Compatible with Gira System 55, E2, Event, Esprit, Standard 55, and ClassiX switch ranges, allowing integration into existing installations.

Suitable for

• Controlling lighting circuits
• Operating blinds and shutters
• Activating door openers
• Any application requiring a momentary electrical pulse

Key specifications

• Contact type: 1 NO (normally open)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection: screw terminals, 1.5–2.5 mm²
• Mounting: flush-mounted
• Installation depth: approx. 32 mm
• Material: thermoplastic
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C

Recommendations

Combine with a compatible rocker or push-button cover from the listed ranges to complete the installation.
