JUNG 240° Pohybový senzor na omietku, biely alpská BM240S1AWW

With a wide 240° detection angle and a range of up to 12 metres, this motion detector covers large areas from a single mounting point. It switches lighting loads up to 2300 W for incandescent or halogen lamps, or 400 W for LED lamps, directly at 230 V AC.

Overview

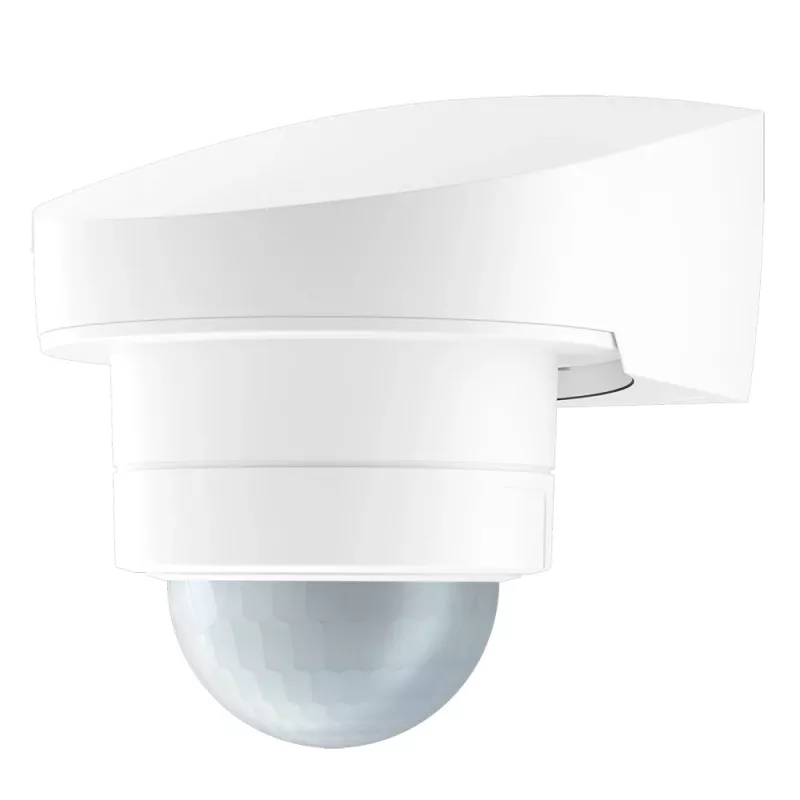

The JUNG BM240S1AWW is a surface-mounted passive infrared motion detector in alpine white. It is designed for indoor and outdoor use, with an IP55 rating protecting against dust and water jets. The detector includes an integrated acoustic sensor that can be deactivated, and an anti-creep zone to prevent false triggers from small animals.

What stands out

• 240° detection angle with 12 m range
• High switching capacity: 2300 W incandescent / 400 W LED
• Adjustable time and brightness thresholds, plus teach-in function
• IP55 rated for outdoor use
• Extension input for up to 5 external push-buttons or units

Technical details

• Sensor type: Passive infrared (PIR)
• Mounting type: Surface-mounted
• Rated voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W (incandescent/halogen), 400 W (LED), 400 VA capacitive
• Detection range: approx. 12 m at 2.5 m mounting height
• Recommended mounting height: 1.10 – 2.20 m (optimal 2.5 m)
• Time setting: approx. 10 s to 30 min, plus short-term operation
• Brightness threshold: approx. 5 to 1000 lux, plus teach-in function
• Ingress protection: IP55
• Operating temperature: -20 °C to +45 °C
• Housing material: UV-stabilized thermoplastic
• Integrated acoustic sensor: Yes, deactivatable
• Anti-creep zone: Yes
• Extension input: Yes, for up to 5 extension units

Our verdict

A versatile motion detector with broad coverage and robust switching capacity, suitable for both residential and commercial applications.
