JUNG A 1520-18 C SCHUKO zásuvka 16 A s USB nabíjačkou (JUNG Quick Charge) 1 x Type-C, Safety Plus, séria AS, biela (ivory)

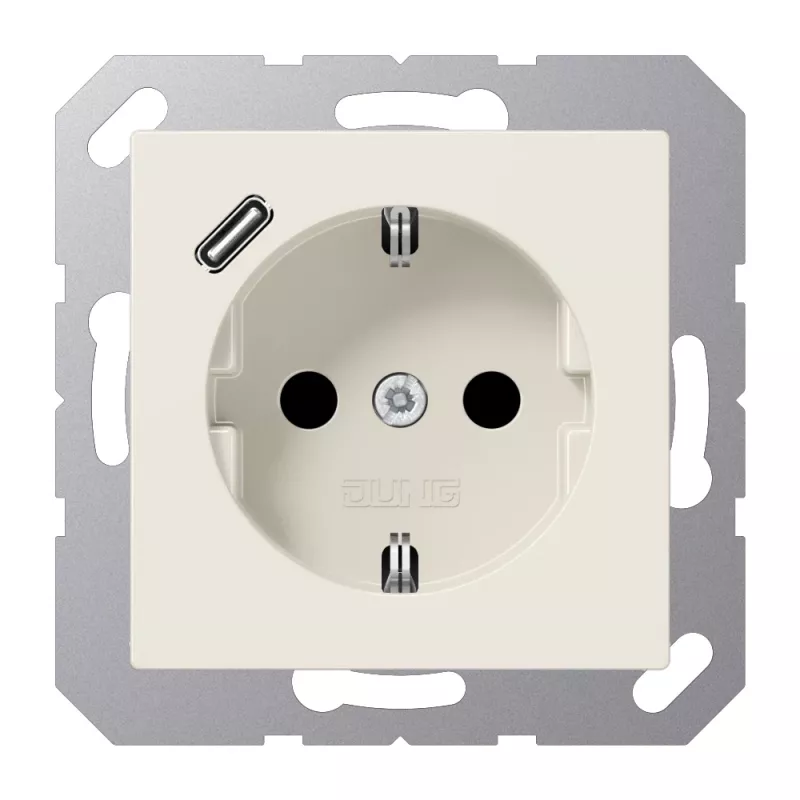

The JUNG A1520-18C is a flush-mounted SCHUKO (Type F) socket with an integrated USB Type-C charging port, designed for the JUNG A series. It combines a standard 16A power outlet with a 20W USB-C Power Delivery 3.0 and Quick Charge 4+ port, enabling fast charging for smartphones, tablets, and other USB-C devices. The socket is made from break-proof, UV-resistant thermoplastic in Alpine White and features screw terminals for secure installation. It includes overload, short-circuit, and overtemperature protection, with a standby power consumption of less than 0.1 W.

Advantages

Integrated USB-C port eliminates the need for separate chargers, saving space and reducing cable clutter. Fast charging with up to 20W supports Power Delivery 3.0 and Quick Charge 4+ for compatible devices. High-quality thermoplastic material ensures durability and long-lasting appearance. Flush-mounted design blends seamlessly with modern interiors.

Suitable for

• Residential and commercial installations requiring both power and USB charging at the same location
• Kitchens, living rooms, bedrooms, offices, and hotel rooms
• Integration with JUNG A series switch ranges (A creation, A 500, A flow, A plus)

Key specifications

• Socket type: SCHUKO (Type F)
• Rated voltage: 250 V AC
• Rated current: 16 A
• USB port: 1x USB Type-C
• USB output: max. 20 W (5V/3A, 9V/2.25A, 12V/1.67A)
• USB standards: Power Delivery 3.0, Quick Charge 4+
• Mounting: flush-mounted (screw terminals)
• Material: thermoplastic, break-proof, UV-resistant
• Colour: Alpine White
• Protection class: IP20
• Halogen-free: Yes
• Standby power: < 0.1 W

Recommendations

For optimal performance, use with USB-C cables that support Power Delivery. Ensure proper installation by a qualified electrician. Compatible with JUNG A series frames and covers.
