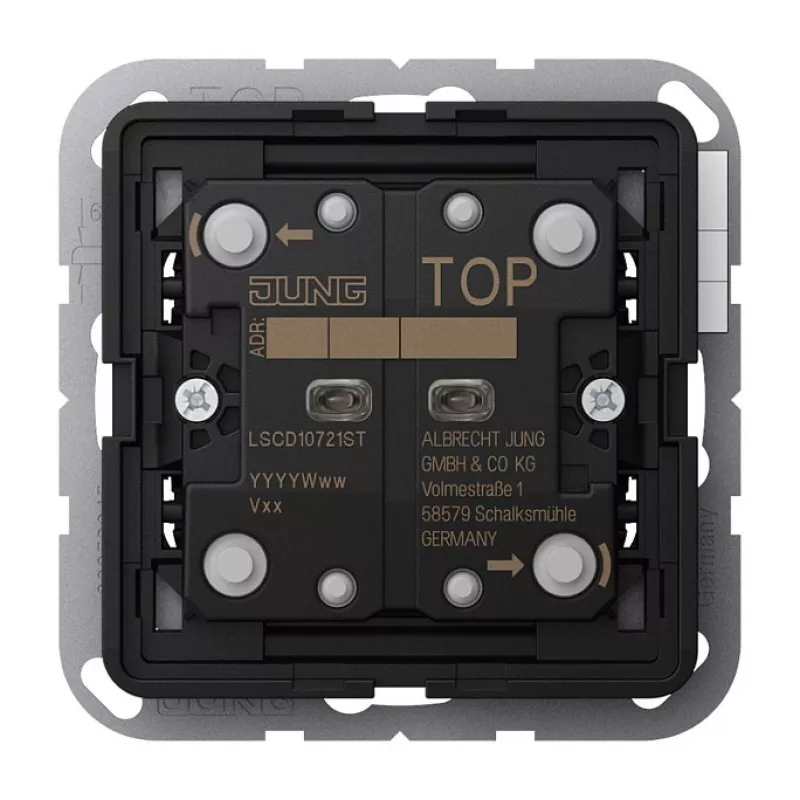

Jung LSCD10721ST KNX tlačidlo Standard, 2-násobné

The Jung LSCD10721ST is a KNX push-button standard with two gangs, designed for controlling consumers such as lights, dimming, blinds, brightness values, temperatures, and light scenes. It is intended for installation in a device box according to EN 60670-1 and is suitable for indoor use.

Key features

• Product type: push-button, 2-gang
• Intended use: operating consumers, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
• Mounting in device box according to EN 60670-1
• KNX medium: TP 256
• Operating concept (rocker or button) adjustable for each operating area
• Button evaluation (single-area or two-area operation) adjustable
• One or two functions per operating area
• Integrated bus coupler
• One status LED per operating area – red
• KNX Data Secure compatible from ETS 5.7.3
• Housing material: plastic
• Suitable for indoor use

Specifications

• Brand: Jung
• MPN: LSCD10721ST
• Operating temperature: -5 to 45 °C
• Storage temperature range: -25 to 70 °C
