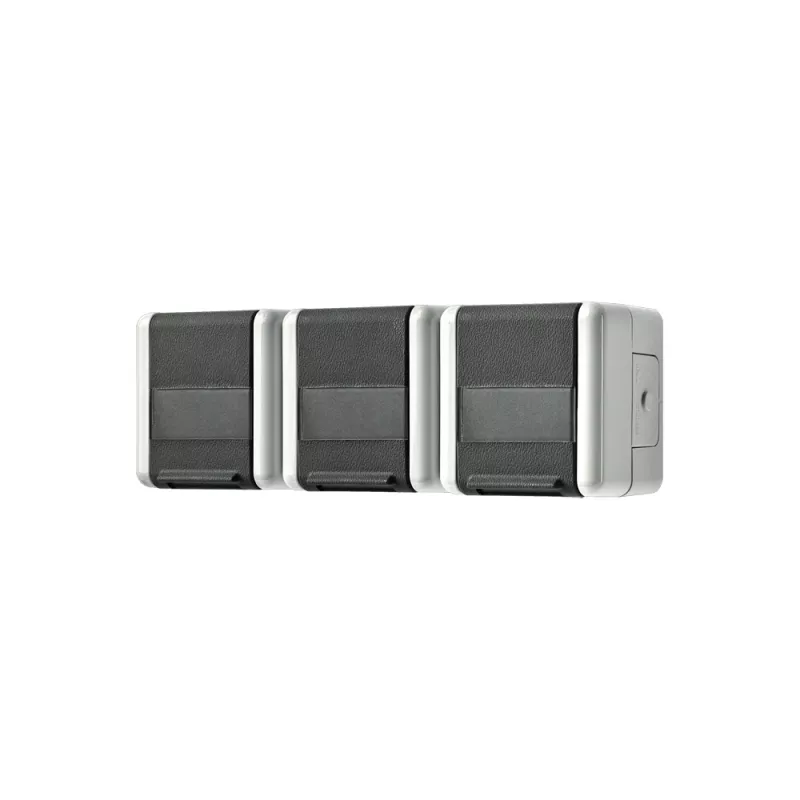

JUNG SCHUKO zásuvka 3-násobná 16A 250V 8230 NAW Alpine White

The JUNG 8230 NAW is a high-quality SCHUKO socket outlet with three sockets, designed for flush-mounted installation. It features a hinged cover for added safety and dust protection. Rated at 16A and 250V, this outlet is suitable for a wide range of household and commercial applications. The Alpine White (RAL 9010) finish matches the JUNG AS / A range of switches and sockets.

Advantages

This socket outlet offers reliable performance with screw terminals for secure wiring. The hinged cover protects sockets when not in use, reducing the risk of accidental contact. The thermoplastic material is halogen-free and impact-resistant (IK05), ensuring long-lasting durability.

Suitable for

• Flush-mounted installations in residential and commercial buildings
• Use with JUNG AS / A range design lines
• Applications requiring multiple SCHUKO sockets in one location

Key specifications

• Product Type: SCHUKO Socket Outlet
• Number of Sockets: 3
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting Type: Flush-mounted
• Connection Type: Screw terminals
• Colour: Alpine White (RAL 9010)
• Material: Thermoplastic
• With hinged cover: Yes
• Protection Class: IP20
• Terminal Capacity: up to 2.5 mm²
• Halogen-free: Yes
• Operating Temperature: -5 to +40 °C
• Impact Resistance: IK05
• Certification: VDE

Recommendations

For best results, install with compatible JUNG frames and use appropriate wiring. Ensure compliance with local electrical regulations.
