Kábel DeLOCK Mini SAS HD SFF-8643 na 4xSATA 0,5m

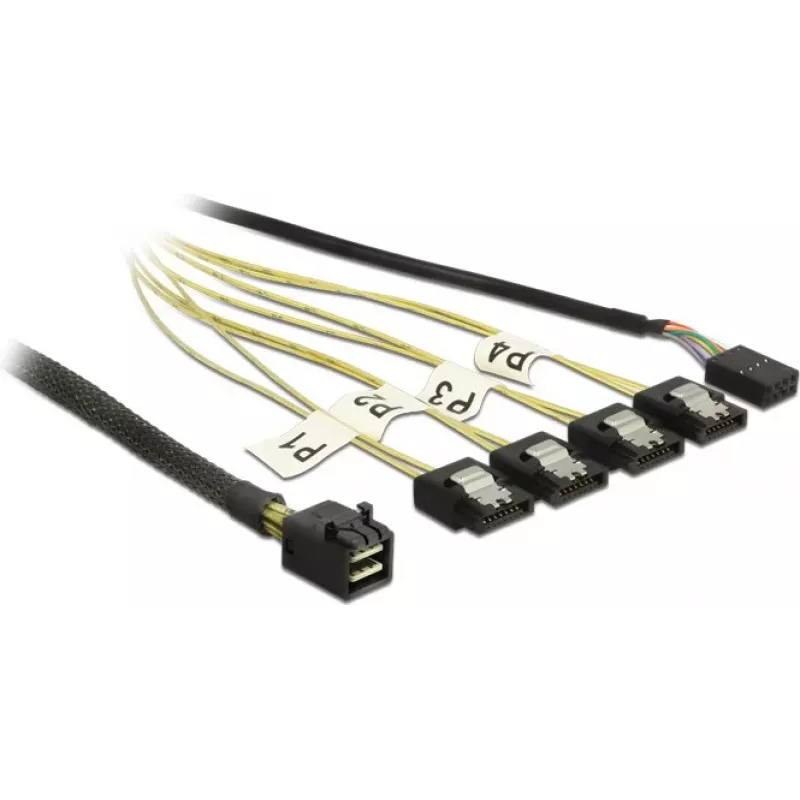

This Delock reverse breakout cable allows connection of internal SAS devices with a Mini SAS HD (SFF-8643) interface to a controller or backplane with four SATA ports. The 0.5 m cable supports high-speed data transfer and is intended for server and storage environments where multiple SATA drives need to be accessed from a single Mini SAS HD link.

Advantages

The cable provides a compact 0.5 m connection from a single Mini SAS HD SFF-8643 plug to four SATA 7-pin connectors, enabling straightforward wiring in rackmount and chassis installations. Metal clips on each SATA connector ensure a secure snap-in connection to drives or backplanes. Construction and connector types are matched for internal PC and server use, offering reliable signal routing for multi-drive configurations.

Suitable for (tasks / use cases)

• Connecting an HDD/SSD backplane with Mini SAS HD SFF-8643 to a controller with four SATA ports
• Server storage expansions and rackmount chassis wiring
• Internal cabling in NAS, DAS or enterprise storage systems

Key specifications

• Cable length: 0.5 m
• Connector 1: Mini SAS HD SFF-8643
• Connector 2: 4 × SATA 7p
• Product colour: Black, Silver, Yellow
• Brand: DELOCK, MPN: 83320, EAN: 4014619671830

How to use

Connect the Mini SAS HD SFF-8643 plug to the corresponding port on the controller or backplane, then attach the four SATA 7-pin connectors to the individual SATA drives or drive slots. Ensure each SATA connector is fully seated and that the metal clip engages for a firm snap-in connection. Route the cable inside the chassis to avoid obstructing fans or other components and secure it as needed to prevent strain on the connectors.

Recommendations

Use this cable only for internal, low-voltage server or PC installations. Do not bend the cable sharply near the connectors; maintain gentle curves to preserve signal integrity. Verify compatibility of the controller and backplane with Mini SAS HD SFF-8643 to 4×SATA breakout functionality before installation.
