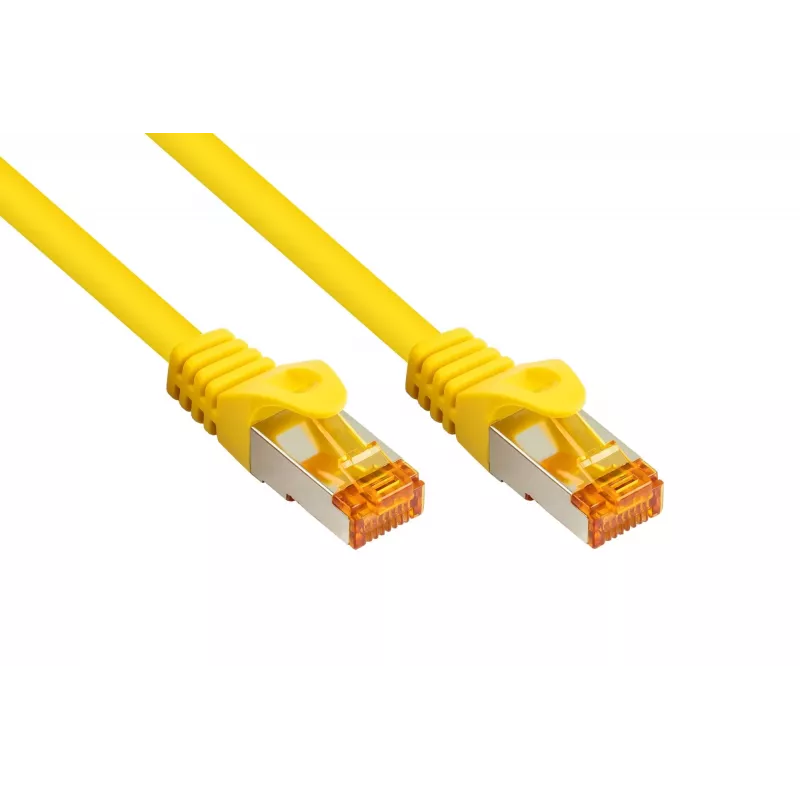

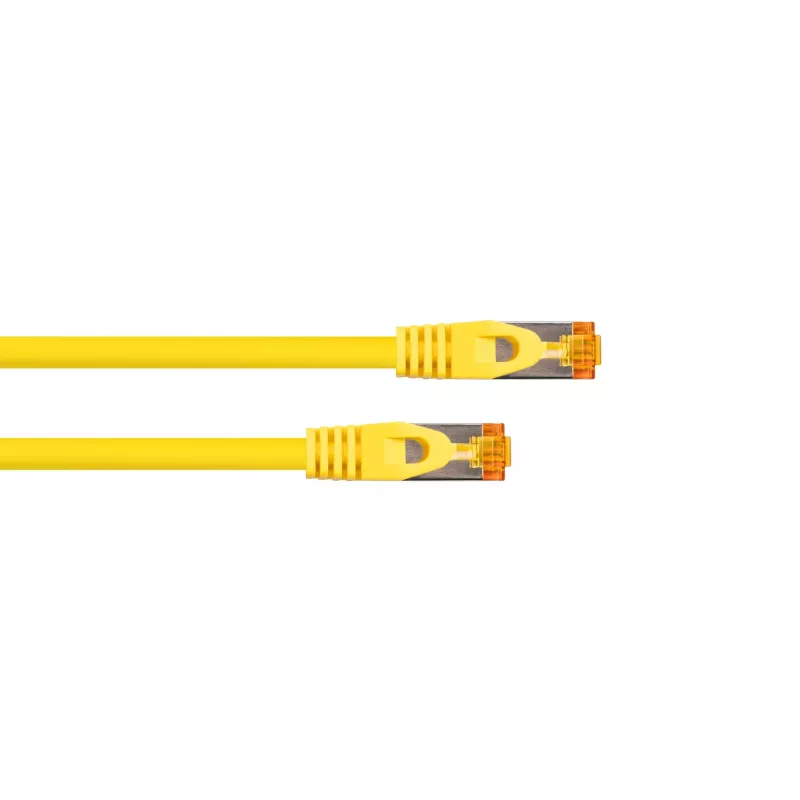

KABELMEISTER Cat.7 S/FTP patch kábel, RJ45, TPE, bezhalogénový, žltý, 0,15 m

For short-range 10 Gigabit links where flexibility and safety matter, this KABELMEISTER patch cable pairs a Category 7 raw cable with a soft TPE jacket that stays pliable even in tight server racks. Unlike stiff PVC alternatives, the halogen-free sheath bends easily behind patch panels and network equipment without kinking, while full S/FTP shielding keeps crosstalk and EMI far below critical thresholds. At just 0.15 metres, it is ideal for neat, high-density patching between adjacent ports.

Highlights

• Cat. 7 raw cable with 600 MHz bandwidth for 10GBASE-T Ethernet
• S/FTP shielding: braided screen plus foil-wrapped pairs for maximum noise immunity
• Highly flexible TPE jacket – halogen-free and LSZH for safe indoor use
• Stranded 26 AWG copper conductors for repeated flexing without breakage

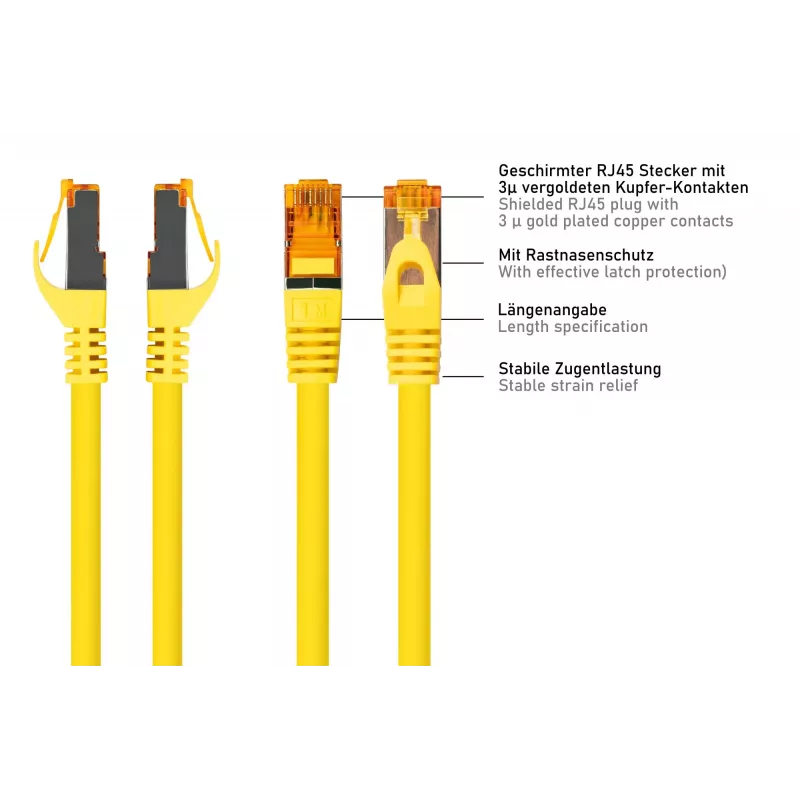

• Moulded RJ45 connectors with gold-plated contacts, wired to TIA/EIA-568B
• Ultra-short 0.15 m length reduces clutter in cabinets and wall outlets

In daily use

This yellow patch cord is built for patch panels, switches, routers, and wall sockets where space is limited. The TPE outer sheath resists oils and abrasion, and its low-smoke, zero-halogen formulation meets strict fire safety requirements in offices, data centres, and industrial environments. Because the cable is so short, signal attenuation is negligible, ensuring full 10 Gbps throughput with minimal latency. The stranded copper core allows the cable to be bent and repositioned many times without performance loss.

Full specifications

• Product type: Patch Cable
• Cable standard: Cat. 7 (Category 7)
• Length: 0.15 m
• Colour: Yellow
• Jacket material: TPE (Thermoplastic Elastomer)
• Jacket properties: Highly flexible
• Environmental compliance: Halogen-free (LSZH)
• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Shielding type: S/FTP (Screened Foiled Twisted Pair)
• Data rate support: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 600 MHz
• Conductor material: Copper
• Conductor construction: Stranded
• Conductor gauge: 26 AWG
• Wiring scheme: TIA/EIA-568B
• Application: Local Area Network (LAN)
• Certifications: RoHS, REACH

Final note

When every centimetre counts, this ultra-short, halogen-free Cat.7 patch cable delivers 10 Gigabit performance with the flexibility to fit the tightest spaces.
