kabelmeister Jumper Wire 40-Pin oddeľovacie vodiče pre Arduino, Raspberry Pi atď., samec na samicu

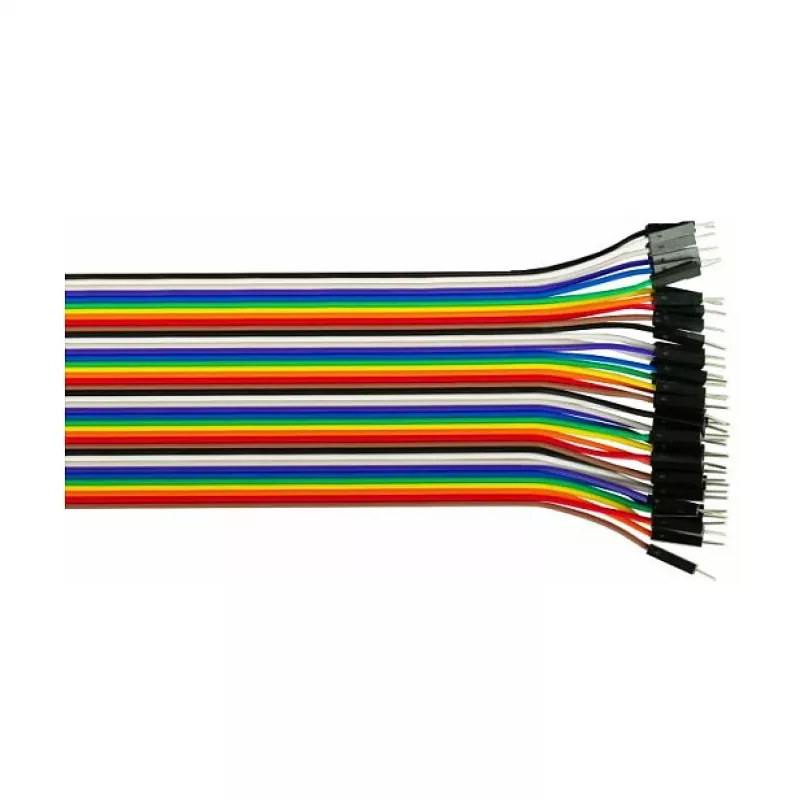

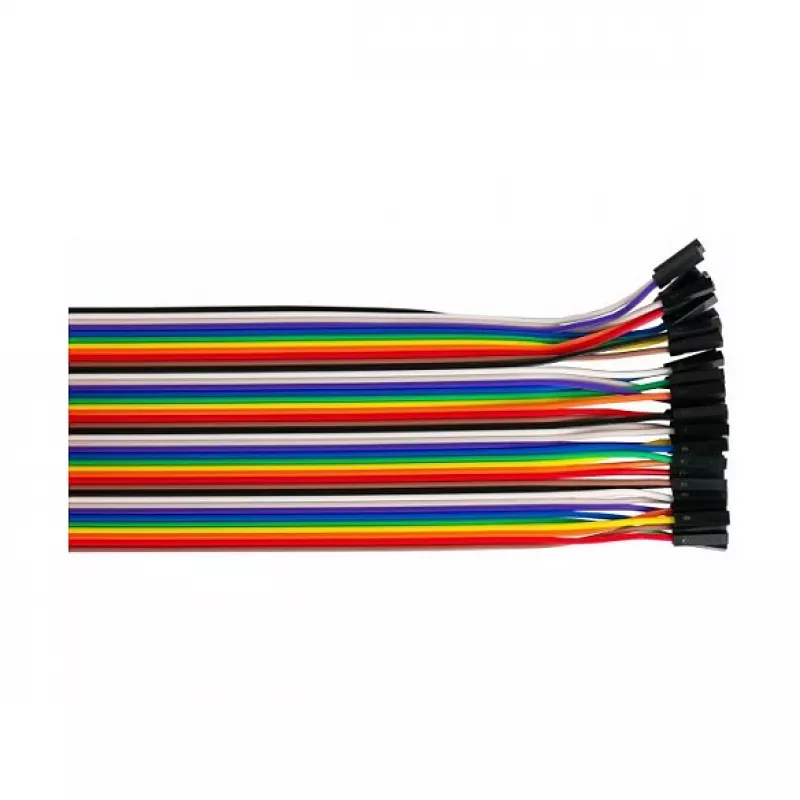

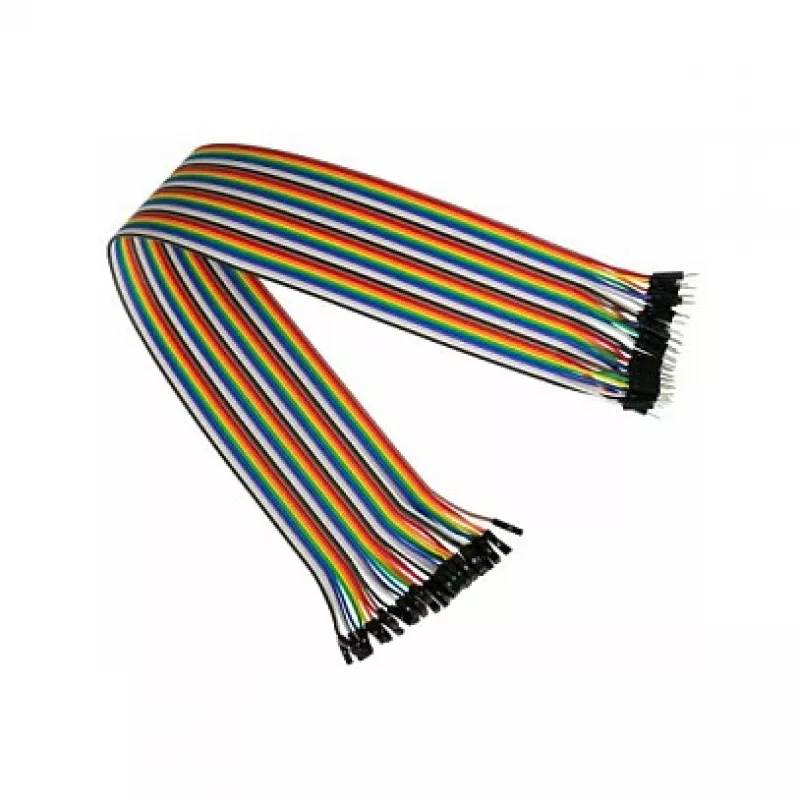

The kabelmeister Jumper Wire 40-Pin set is a versatile and essential component for electronic prototyping. Designed for use with Arduino, Raspberry Pi, breadboards, and other microcontrollers, these separable wires allow you to create custom connections with ease. Each wire features a male pin on one end and a female socket on the other, making them ideal for bridging components without soldering.

Advantages

These jumper wires offer flexibility and convenience for both beginners and experienced makers. The 40-pin ribbon can be easily separated into individual wires or smaller groups, allowing you to adapt to various project requirements. The 24 AWG tinned copper conductors ensure reliable signal transmission, while the PVC insulation provides durability and protection. With a length of approximately 20 cm and 2.54 mm pin spacing, they are compatible with standard breadboards and prototyping boards.

Suitable for

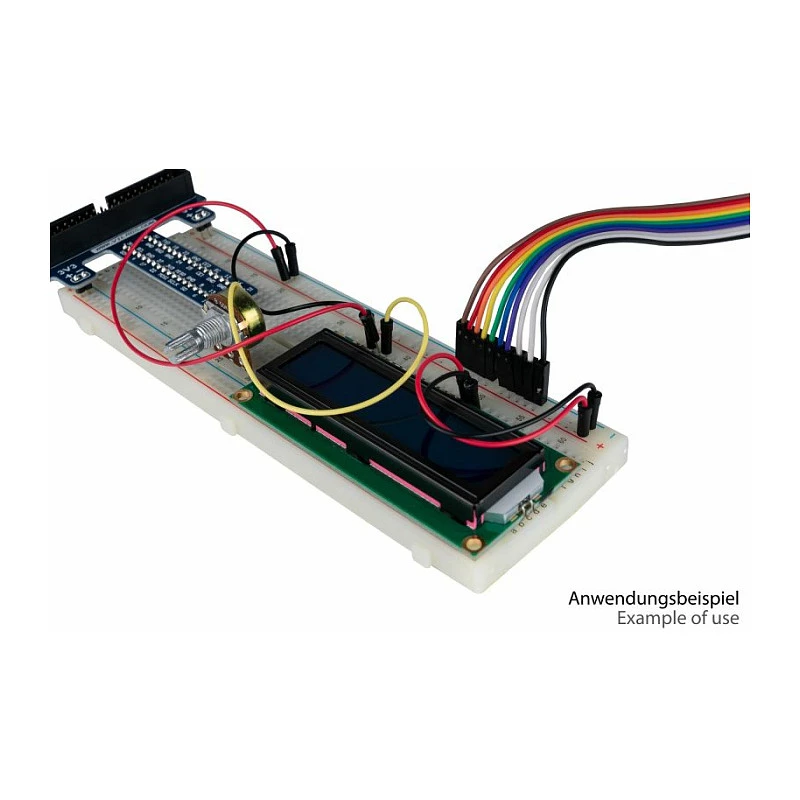

• Arduino and Raspberry Pi projects
• Breadboard prototyping
• Circuit connections and test leads
• DIY electronics and hobbyist projects

Key specifications

• Product Type: Jumper Wire Set
• Number of Wires: 40
• Connector Type (End 1): Male Pin
• Connector Type (End 2): Female Socket
• Configuration: Male-to-Female (M-F)
• Separable Wires: Yes
• Wire Length: Approx. 20 cm
• Wire Gauge: 24 AWG
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Color: Multicolour
• Pin Spacing: 2.54 mm (0.1 inch)
• Voltage Rating: < 50V DC
• Current Rating: < 1A
• Operating Temperature: -25°C to +85°C

Recommendations

For optimal performance, use these jumper wires with standard 2.54 mm pitch breadboards and ensure connections are secure. Avoid exceeding the voltage and current ratings to prevent damage. Ideal for educational projects, rapid prototyping, and testing circuits.
