Káblová priechodka DeLOCK 19003 optický kábel hliník 2 m x 16 mm -40 až 200 °C

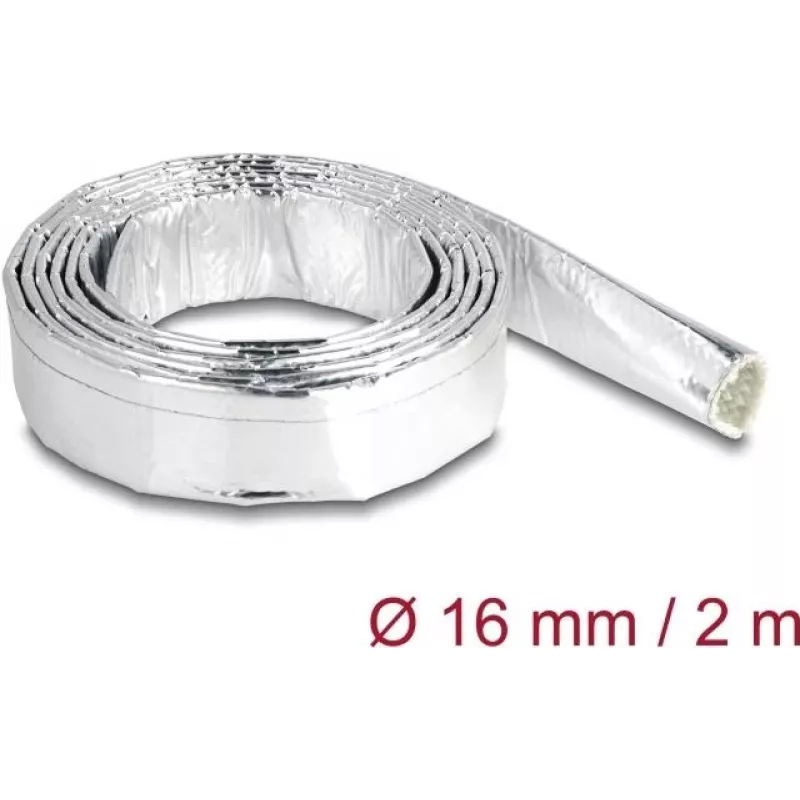

The DeLOCK Cable Sleeve is a protective tube made of glass fiber with an aluminium foil layer. It is 2 m long with a 16 mm internal diameter and is designed to shield cables, electrical tubes and wires from high temperatures and solar radiation while allowing operation in environments between -40 and 200 °C.

Advantages

The combination of glass fiber and aluminium foil provides mechanical stability and effective thermal reflection. The aluminium layer reflects over 95% of incident radiation, reducing heat buildup on the enclosed cables. The sleeve is silver in colour and offers long-term protection in demanding temperature ranges.

Suitable for

• Protecting electrical cables and wires from heat and sunlight
• Insulating small tubes and hoses in vehicles or machinery
• Applications requiring a compact, flexible protective cover (16 mm diameter)

Key specifications

• Length: 2 m
• Internal diameter: 16 mm
• Material: glass fiber with aluminium foil
• Temperature range: -40 to 200 °C
• Colour: silver
• Brand: DELOCK, MPN: 19003, EAN: 4043619190034

How to use

Slide the sleeve over the cable bundle, tube or wire to be protected. For multiple cables, gather them together and push the sleeve along their length or cut the sleeve to the required length before installation. Ensure the sleeve covers the area exposed to heat or sunlight and secure the ends with appropriate clips or heat-resistant tape if needed.

Recommendations

Use the sleeve within the specified temperature range (-40 to 200 °C) and check compatibility with nearby chemicals or sharp edges. When cutting the sleeve, seal the cut edges if necessary to prevent fraying of the glass fiber.
