Káblový gender adaptér InLine 69927M — USB adaptér (gender adaptér)

Compact USB-C female connector:Only 74 mm long – ideal for device connections where space is limited.
IP68 waterproof:Robust connection, protected against water, dust, and mechanical stress – for outdoor and industrial applications.
Reliable connection:Supports 5 Gb/s data transfer, 2 A current and 5 V voltage – ideal for data and charging applications.
Shielded housing:Reduces electromagnetic interference – for stable signal quality in EMC-critical environments.
Simple, secure installation:With screw connection and seal – can be mounted without tools, vibration and weather resistant.

The compact InLine® USB-C cable coupling with IP68 protection has been specially developed for applications where a reliable USB-C connection is required in confined spaces – for example, in distribution boxes, industrial enclosures or outdoor installations.

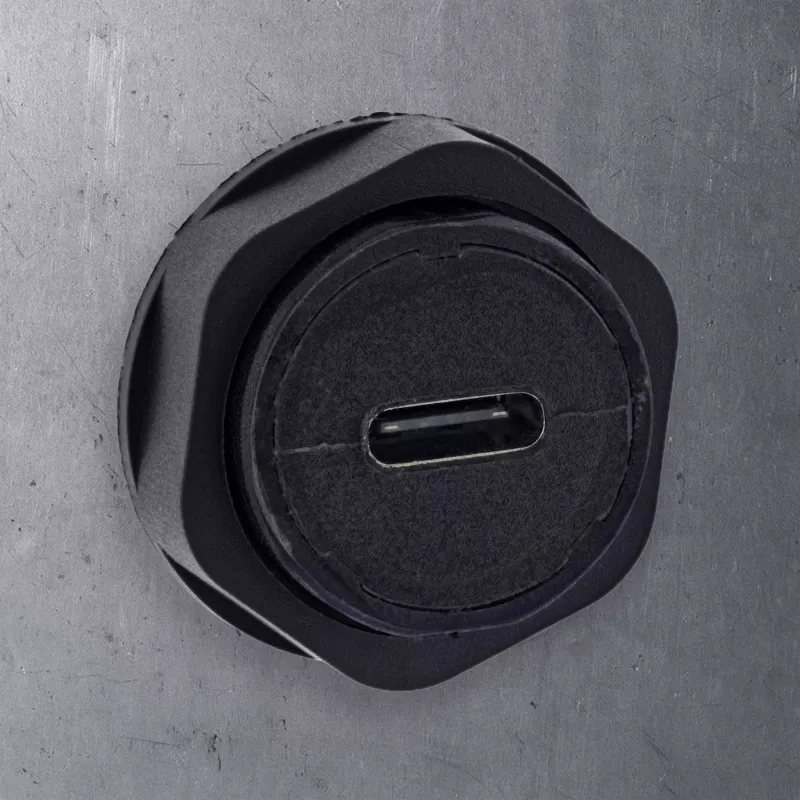

With a total length of only 74 mm, this connector can be easily integrated even in compact enclosures. The shielded USB-C socket (on both sides) supports data transfers of up to 5 Gb/s and also offers a charging function with 2 A at 5 V.

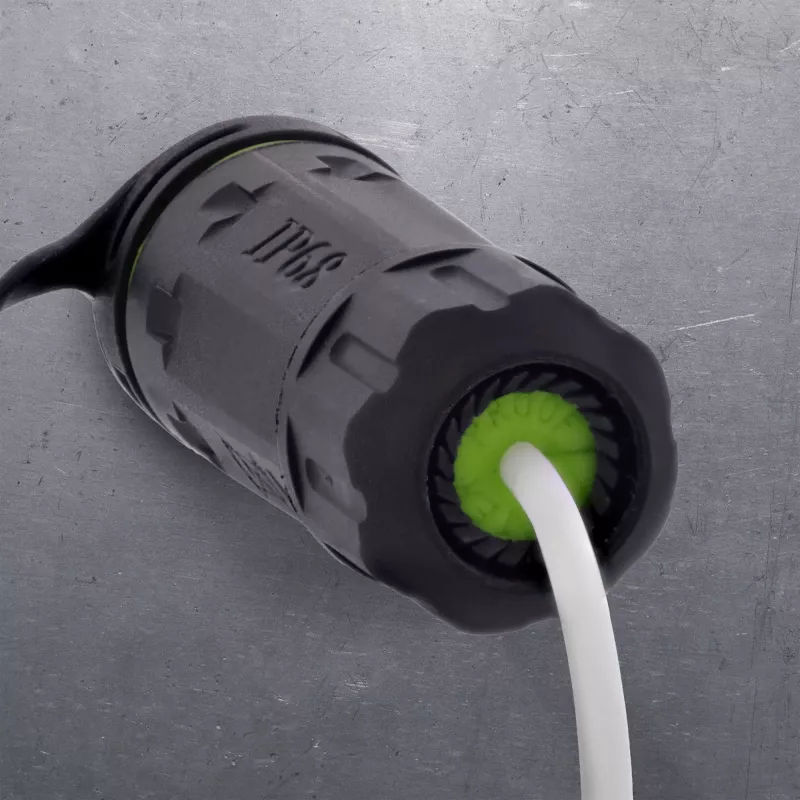

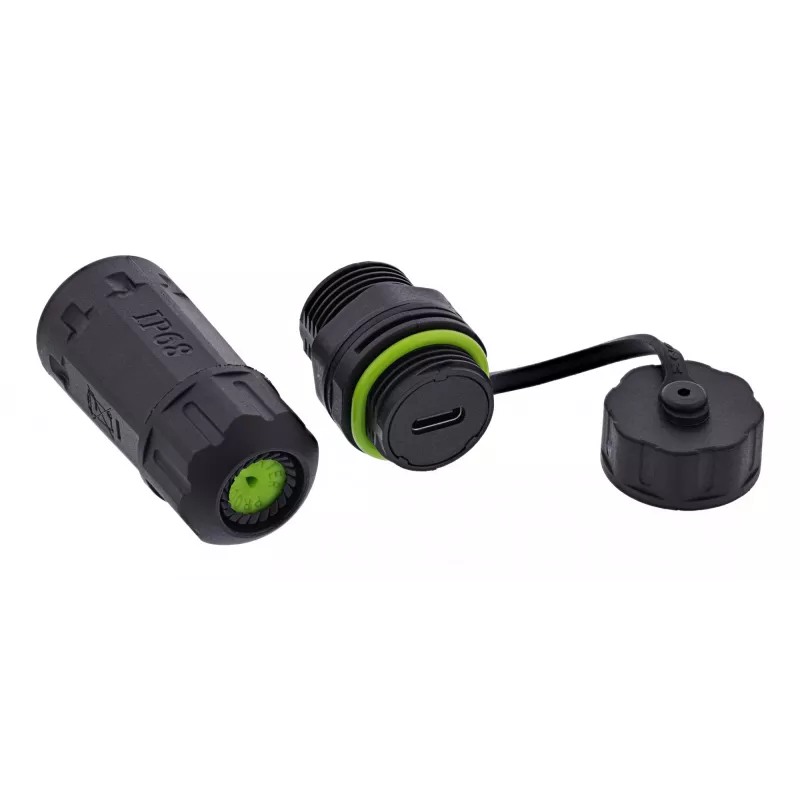

Installation is quick and tool-free thanks to the integrated screw system. The combination of a green sealing ring and rubber gasket ensures a robust, IP68-compliant seal – reliably protected against moisture, dust, dirt, and mechanical stress.
Ideal for harsh environments, industrial facilities, or professional outdoor IT installations – anywhere where reliable USB-C connectivity is required in confined spaces.

Material: Nylon (PA66)
Thread size: M20
Module: USB-C socket/socket
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927M. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 85 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 30 mm

How to use

Mount the connector into a compatible M20 cutout or gland location and insert cables of the recommended diameters. Secure the halves using the integrated screw system until the rubber gasket and silicone seal compress to form the IP68 seal. Connect USB-C cables or devices to each side to establish data and charging connections. No special tools are required for installation; ensure correct cable orientation and firm tightening to maintain the protective seal.

Recommendations

For best performance, use shielded USB-C cables and avoid exceeding the specified current and voltage. Regularly inspect seals and connections in harsh environments and replace the gasket if damaged to retain IP68 protection.
