InLine 92505C Svorkovnica s dvojitou zásuvkou RJ45, rovná, DIN lišta

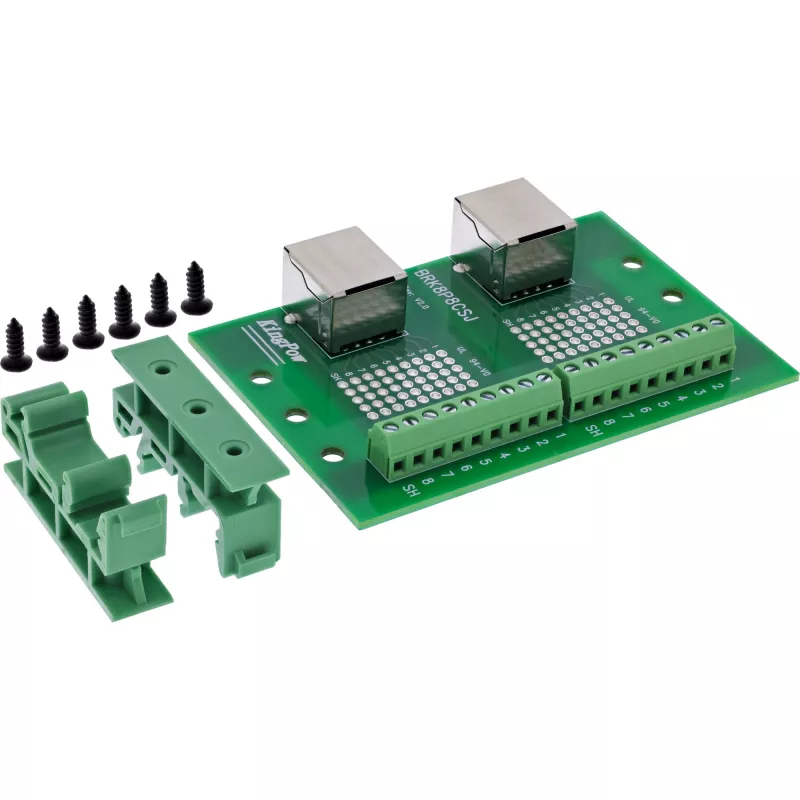

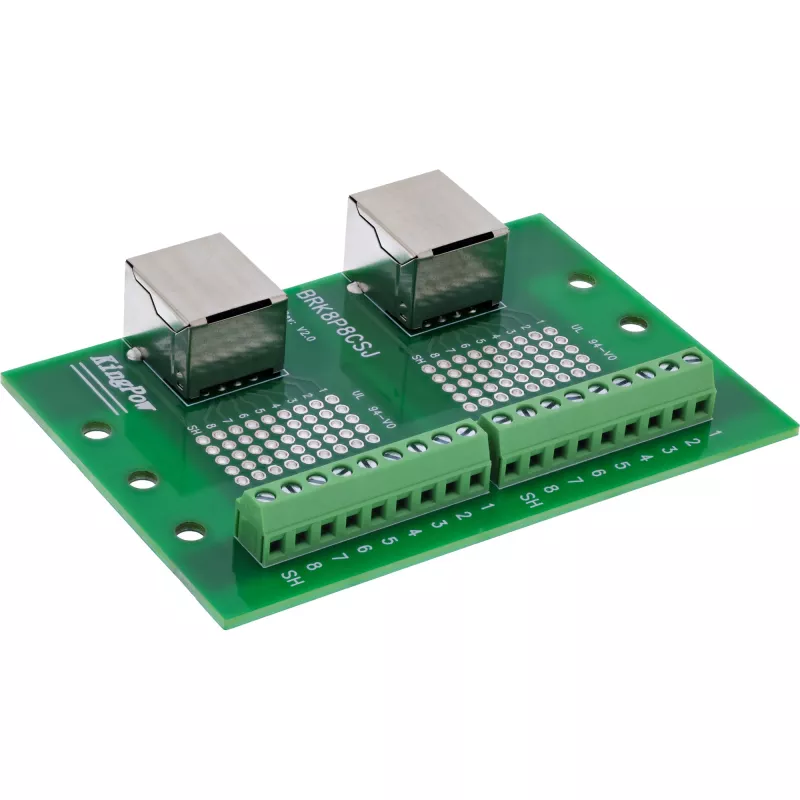

The InLine 92505C is a DIN rail terminal block with two straight RJ45 sockets (8P8C) that are independently connected to two screw terminal strips. Each strip has 9 terminals (8 signals plus shield) with a 5.0 mm pitch, allowing solder-free wiring of 16–26 AWG single wires using a flat-head screwdriver up to 2.5 mm. The module features a pre-mounted DIN rail clip for integration into top-hat rail systems.

Key features

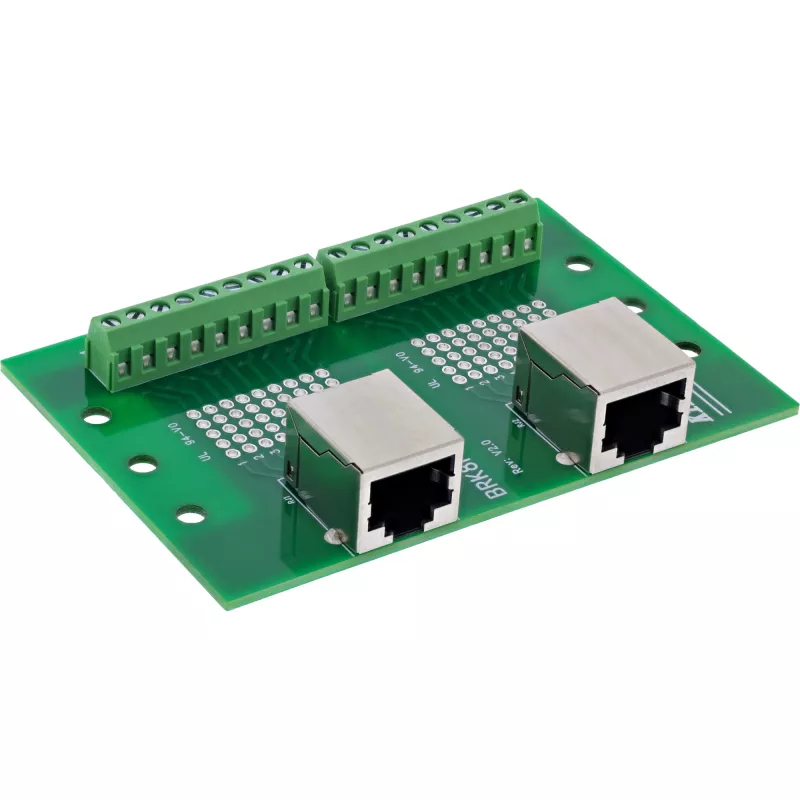

• Two straight RJ45 sockets (8P8C) with separate signal routing
• Two screw terminal strips, each with 9 terminals (8 signals + shield), 5.0 mm pitch
• Tool-assisted wiring with flat-head screwdriver ≤ 2.5 mm
• Connection range: 16–26 AWG

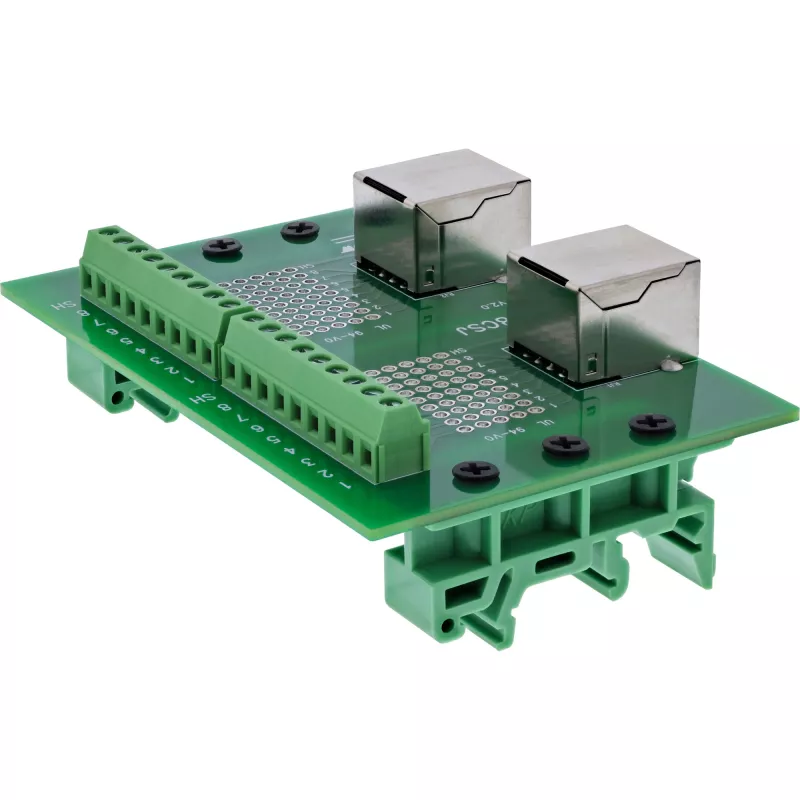

• Pre-mounted DIN rail clip for top-hat rail mounting
• EVA insulation on underside

Specifications

• Brand: InLine
• MPN: 92505C
• Type: For top-hat rail
• Side A: 2x RJ45 socket
• Rated current: 1.0 A per pin
• Max. operating voltage: 100 V between two signals
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +70 °C
• Dimensions: approx. 60.45 × 89.7 × 43.0 mm (W × H × D)
• Design: Straight
• Country of origin: Taiwan
