Káblový konektor DeLOCK 66724 D-Sub HD 26 pin čierny strieborný

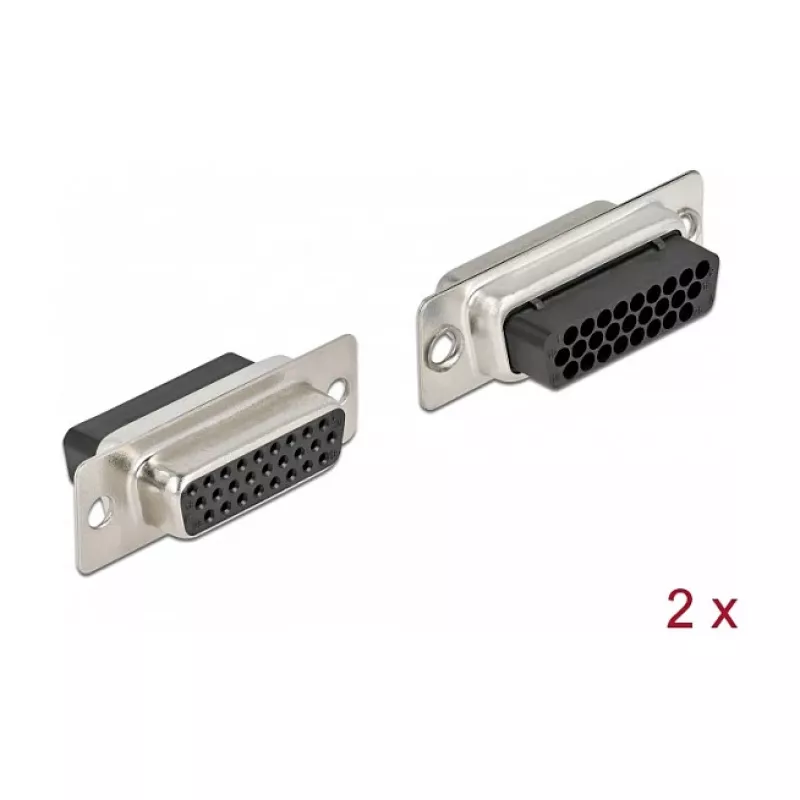

The Wire Connector DeLOCK 66724 D-Sub HD 26 Pin Black Silver is a female D-Sub High Density connector designed for compact electronic interfaces where a 26-pin connection is required. The connector combines a black housing with silver contacts for a neutral aesthetic and reliable electrical contact. Supplied as a pack of two in a polybag, each unit has a width of 15.7 mm, a depth of 39.1 mm and a height of 12.5 mm, suitable for panel or cable terminations in a variety of equipment assemblies.

Advantages

The DeLOCK D-Sub HD connector provides a standardized 26-pin interface in a compact form factor, enabling high-density connections in limited spaces. Its metal contacts ensure consistent electrical conductivity while the molded housing offers mechanical protection. Supplied in pairs, the product facilitates replacement or dual installations and its neutral black and silver finish integrates easily with common equipment designs.

Suitable for

• Connecting peripheral devices and control modules in industrial equipment
• Signal and data routing in embedded systems and communication devices
• Panel connections and cable assemblies in test rigs and measurement instruments
• Repair or upgrade of devices requiring a 26-pin D-Sub HD female interface

Key specifications

• Connector type: D-Sub High Density, female, 26 pins
• Colour: black housing with silver contacts
• Pack quantity: 2 pieces per polybag
• Dimensions (W × D × H): 15.7 mm × 39.1 mm × 12.5 mm
• Application: cable and panel terminations for signal/data connections

How to use

Prepare the mating cable or panel cutout to match the connector dimensions and pin layout. Align the connector with its counterpart and engage the mating mechanism according to the receiving connector type. Ensure all contacts are fully seated and secure any fastening screws or retention hardware if present. When installing into cable assemblies, follow standard soldering, crimping or wiring procedures appropriate for D-Sub high-density contacts and verify continuity after assembly.

Recommendations

For reliable performance, verify compatibility of pinouts before installation and avoid excessive mechanical stress on the connector body and cable. Use appropriate strain relief and cable routing to minimize vibration and bending at the connection point. Store unused connectors in original packaging to protect contacts from contamination and mechanical damage.
