Káblový reléový modul PSZ-02M modrý DIN lišta 2-kanál 16A 230V AC Tech Sterowniki

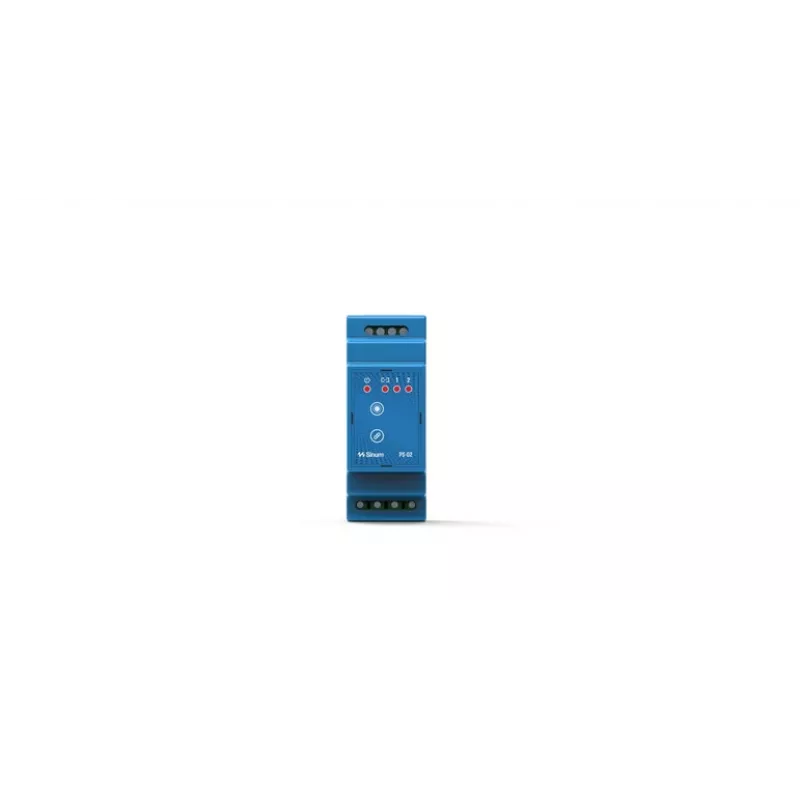

The Tech Sterowniki PSZ-02M is a professional wired relay module designed for DIN rail mounting. It features two independent SPDT relay channels, each capable of switching up to 16A at 250V AC or 30V DC. The module is controlled by 230V AC and includes LED status indicators for each relay. Its compact 2-module width (35mm) and blue housing make it ideal for industrial control panels and automation systems.

Advantages

Reliable switching with high current capacity; clear LED status indication; easy screw terminal connections; space-saving DIN rail design.

Suitable for

• Industrial automation and control systems
• Building management systems
• Lighting control
• Motor and pump control
• HVAC applications

Key specifications

• Product Type: Wired Relay Module
• Mounting: DIN Rail (TS-35)
• Channels: 2
• Contact Configuration: 2 x SPDT (NO/NC)
• Max Switching Current: 16 A per contact
• Max Switching Voltage AC: 250 V AC
• Max Switching Voltage DC: 30 V DC
• Control Voltage: 230 V AC
• Power Consumption: < 1 W
• Operating Temperature: 5 - 50 °C
• Connection: Screw Terminals
• Housing Color: Blue
• Status Indication: LED per relay
• Protection Class: IP20
• Module Width: 2 DIN modules (35 mm)

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper ventilation. Suitable for indoor use only.
