Kaiser Elektro HaloX 180 inštalačné puzdro s 190 mm tunelom

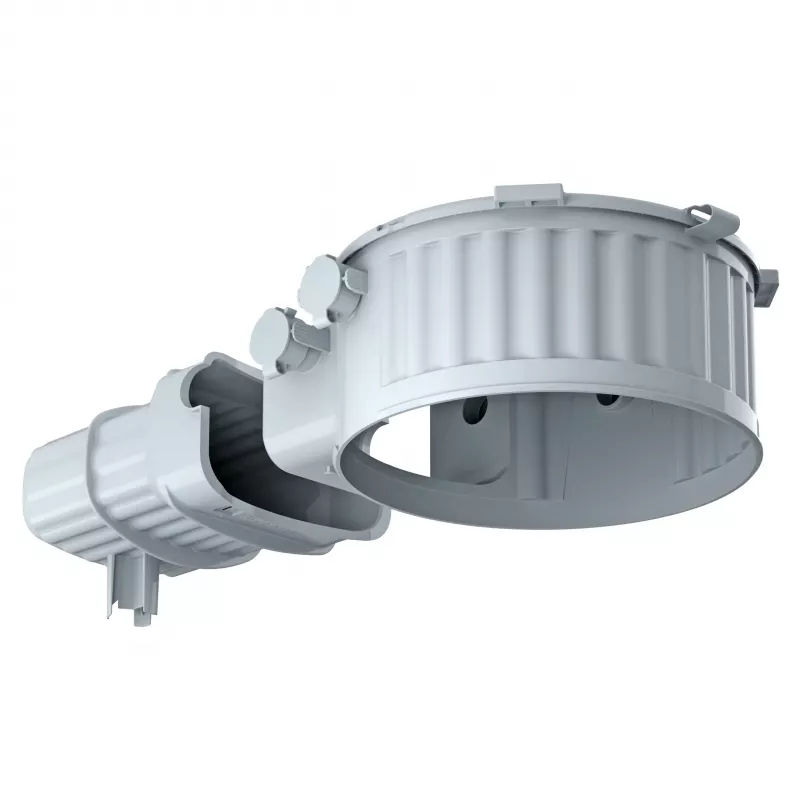

Universal installation housing for hollow walls and suspended ceilings, featuring an extendable tunnel that increases installation depth to 190 mm. The halogen-free plastic construction with glow-wire resistance up to 850°C ensures safety in recessed spotlight and loudspeaker applications.

Advantages

Air-tight and sound-insulating design maintains building envelope integrity. Multiple flexible cable entries accommodate various wiring and conduit configurations. Suitable for LED luminaires without power limitation.

Suitable for

• Recessed spotlights
• Loudspeakers
• Electrical devices in hollow walls and suspended ceilings

Key specifications

• Outer diameter: 180 mm
• Installation opening diameter: 160 mm
• Base housing depth: 100 mm
• Maximum installation depth with tunnel: 190 mm
• Extendable tunnel length: 190 mm
• Material: halogen-free plastic
• Glow-wire test: 850°C
• Protection class: IP20
• Maximum luminaire power (halogen): 50 W
• Maximum luminaire power (LED): unlimited
• Colour: orange

Recommendations

For installations requiring additional depth, the integrated tunnel provides flexibility while maintaining fire safety and acoustic performance.
