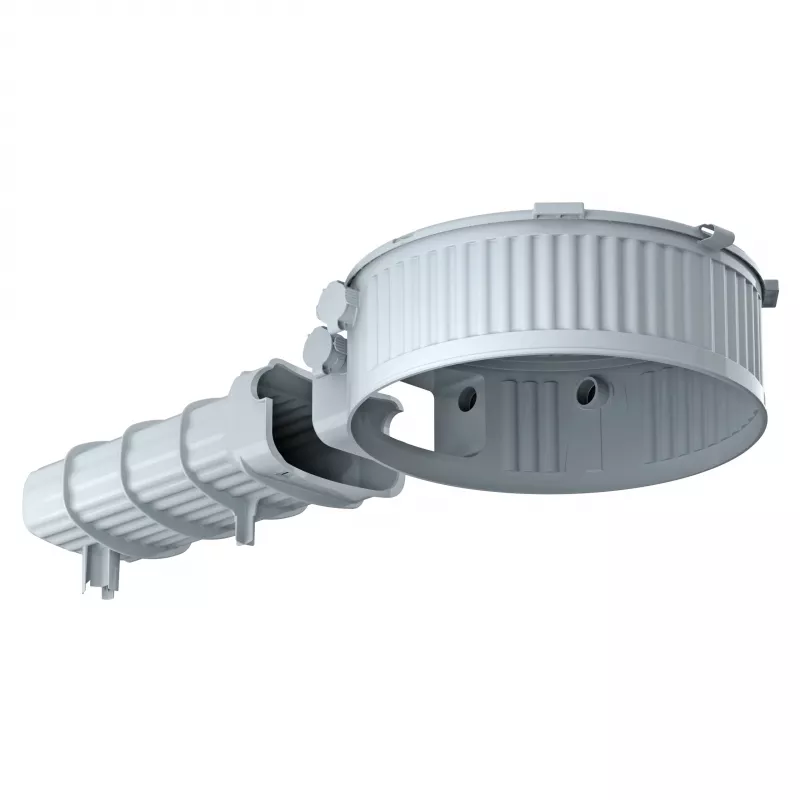

Kaiser Elektro HaloX 250 puzdro vstavaného svietidla s tunelom 325 mm

The Kaiser Elektro HaloX 250 with 325 mm tunnel is a recessed luminaire housing engineered for fire-rated installations in ceilings and walls. Its tool-free installation and integrated strain relief set it apart from conventional housings, allowing quick and secure mounting without additional components. The housing accommodates halogen and LED luminaires, with adjustable depth and cut-out diameter to fit various construction scenarios.

Highlights

• Multi-rated fire protection: F30, F60, F90
• Airtight and sound-insulating design
• Tool-free installation with integrated strain relief
• Adjustable installation depth: 125–250 mm
• Adjustable cut-out diameter: 68–82 mm
• Halogen-free plastic material

In daily use

Designed for flush mounting in fire protection ceilings and walls, the HaloX 250 ensures compliance with fire safety requirements while simplifying installation. The adjustable depth and cut-out diameter provide flexibility for different luminaire sizes and ceiling thicknesses. Its airtight construction contributes to energy efficiency and sound insulation, making it suitable for residential and commercial applications.

Full specifications

• Product type: Recessed luminaire housing
• Series: Kaiser HaloX
• Max. luminaire power (halogen): 50 W low voltage, 20 W high voltage
• Max. luminaire power (LED): Unlimited within thermal limits
• Housing diameter: 250 mm
• Tunnel length: 325 mm
• Tunnel diameter: 25 mm
• Cable entries: 8 x M25, 2 x M20
• Material: Halogen-free plastic
• Mounting type: Flush-mounted
• Protection class (housing): IP20

Final note

The HaloX 250 with tunnel 325 is a reliable choice for fire-rated recessed lighting installations, combining safety, flexibility, and ease of use.
