Kaiser Elektro vetruodolná rozvodná krabica 9066-01

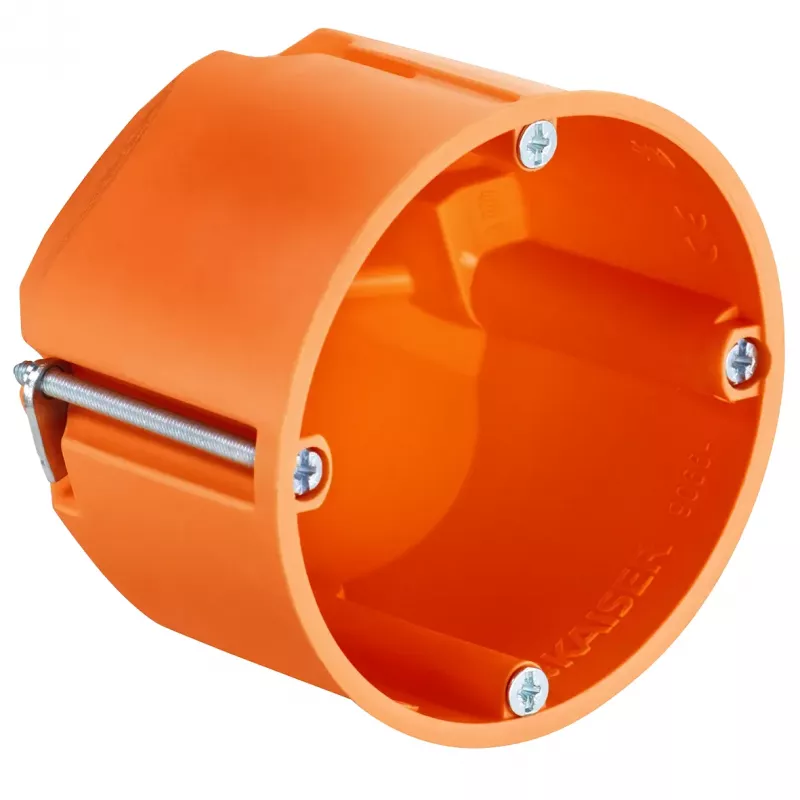

The Kaiser Elektro Windproof Junction Box 9066-01 is a high-quality cavity wall junction box designed for airtight installations. Made from halogen-free polypropylene, it ensures safety and durability in residential and commercial electrical systems. With 8 membrane entries and a snap-on lid, this box provides easy cable management while maintaining windproof integrity.

Advantages

Windproof and airtight design meets DIN 4108-11 standards, preventing drafts and energy loss. Halogen-free material reduces toxic smoke in case of fire. Compact 74 mm diameter fits standard cavity wall cutouts. Snap-on lid allows quick access without tools.

Suitable for

• Flush mounting in cavity walls
• Airtight electrical installations
• Residential and commercial wiring
• Use with cables up to 11.5 mm diameter

Key specifications

• Product Type: Junction Box
• Mounting: Cavity Wall (Flush)
• Material: Polypropylene (PP), Halogen-free
• Protection Class: IP30
• Number of Entries: 8 (membrane type)
• Max Cable Diameter: 11.5 mm
• Lid: Snap-on
• Terminals: Not included (empty box)
• Colour: Orange
• Diameter: 74 mm
• Depth: 48 mm
• Temperature Range: -25°C to +40°C
• Standards: DIN EN 60670-1, DIN EN 60670-22, DIN 4108-11

Recommendations

For optimal airtight performance, pair with compatible cable glands and ensure proper sealing around entries. Suitable for use in passive house and energy-efficient buildings.
