Kaiser Elektro zapustená odbočná krabica 150 UP 1096-01, polypropylén, sivá/biela

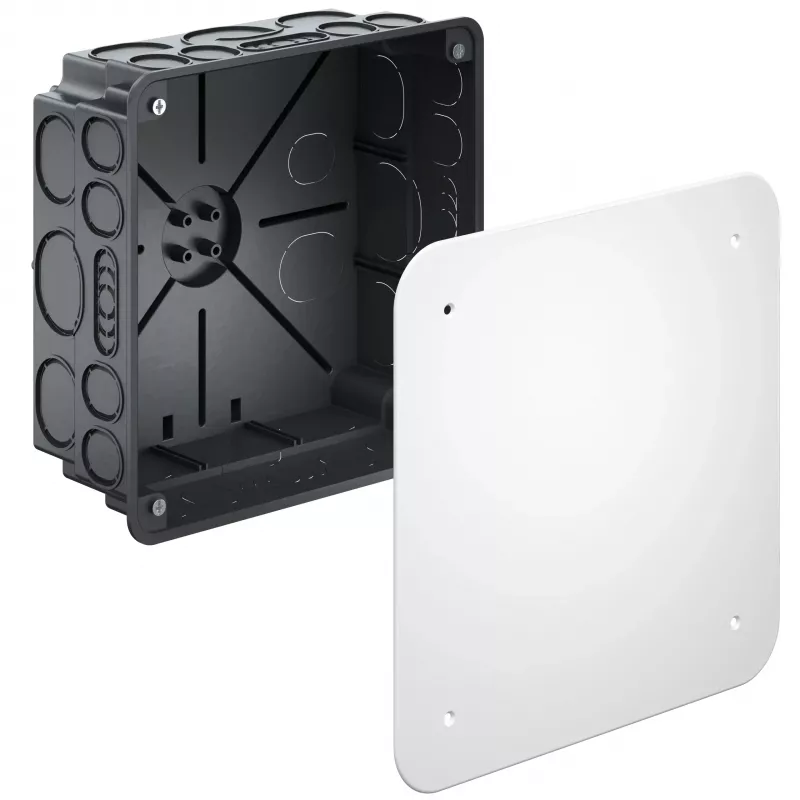

The Kaiser Elektro Junction Box 150 UP 1096-01 is a high-quality flush-mounted junction box designed for professional electrical installations. Made from halogen-free polypropylene, it offers excellent durability and safety for solid walls, masonry, and concrete applications.

Advantages

This junction box features a robust screw-on lid with four screws for secure closure, flexible membrane cable entries (M20/M25) for easy installation, and integrated cable retention. It is glow wire tested to 850 °C, ensuring high fire resistance. The box is suitable for use with individual wiring and meets DIN EN 60670-1 and DIN EN 60670-22 standards.

Suitable for

• Flush-mounted installations in solid walls, masonry, and concrete
• Electrical junction and connection points in residential and commercial buildings
• Use with cables up to 400 V and 16 A rated current

Key specifications

• Mounting Type: Flush-mounted (Unterputz)
• Material: Polypropylene (PP), halogen-free
• Ingress Protection: IP20
• External Dimensions: 150 x 150 x 70 mm (L x W x D)
• Number of Cable Entries: 10 (flexible membrane, M20/M25)
• Lid Type: Screw-on lid with 4 screws
• Glow Wire Test: 850 °C
• Operating Temperature: -5 to +60 °C
• Rated Voltage: 400 V
• Rated Current: 16 A
• Colour: Grey (box), White (lid)

Recommendations

For optimal performance, use with appropriate cable glands and ensure proper sealing of unused entries. This junction box is ideal for new installations or retrofitting in existing flush-mounted systems.
