Kaiser Repro RS1+RA1 5510 kopírovací stojan

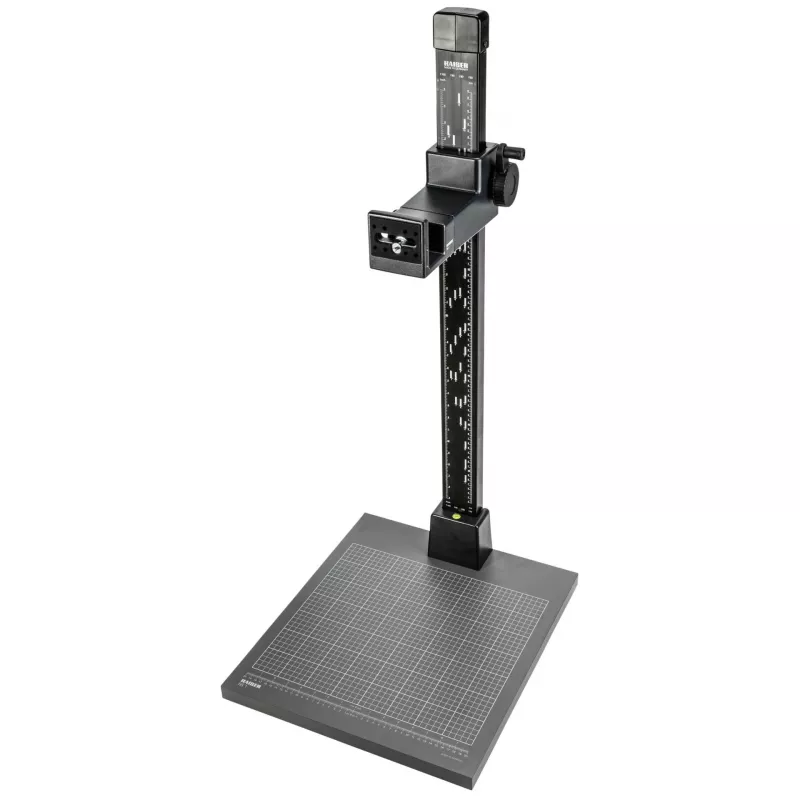

Reproducing documents and small objects with a camera often results in blurry, poorly aligned images due to unstable setups. The Kaiser Repro RS1+RA1 5510 solves this by providing a rock-solid baseboard and a precision-adjustable column, ensuring every shot is sharp and perfectly framed.

Who is it for

Archivists, e-commerce photographers, and hobbyists who need consistent, high-quality digitization of flat materials or small products. It accommodates DSLR, mirrorless, and medium format cameras up to 1.5 kg.

Main features

• Sturdy matte gray baseboard (480 x 400 mm) with printed grid and cm/inch scales for accurate positioning.
• Matte black anodized aluminum column (700 mm height) reduces reflections and ensures durability.
• Hand crank with friction drive and cable pulley allows precise height adjustment for sharp focus.
• Camera arm offers 170 mm horizontal adjustment range, with standard 1/4"-20 tripod thread.
• Freestanding design on baseboard; compatible with external repro lights like Kaiser RB 2180/2182.

Specifications

• Baseboard dimensions: 480 x 400 mm (18.9 x 15.7 inches)
• Column height: 700 mm (27.6 inches)
• Camera mount thread: 1/4"-20
• Horizontal adjustment range: 170 mm (6.7 inches)
• Maximum camera load: 1.5 kg (3.3 lbs)
• Construction materials: Aluminum, steel, wood
• Baseboard surface: Matte gray, anti-reflective
• Height adjustment mechanism: Hand crank with friction drive and cable pulley

Tips

Pair with Kaiser RB 2180 or RB 2182 repro lights for even illumination. Ensure your camera and lens combination does not exceed the 1.5 kg load capacity to maintain stability and precision.
