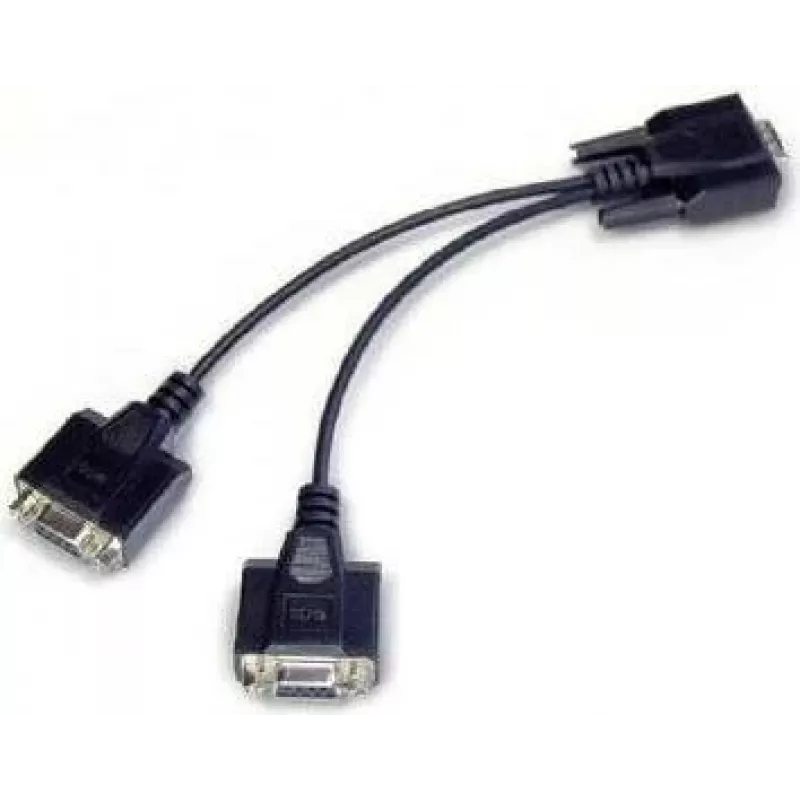

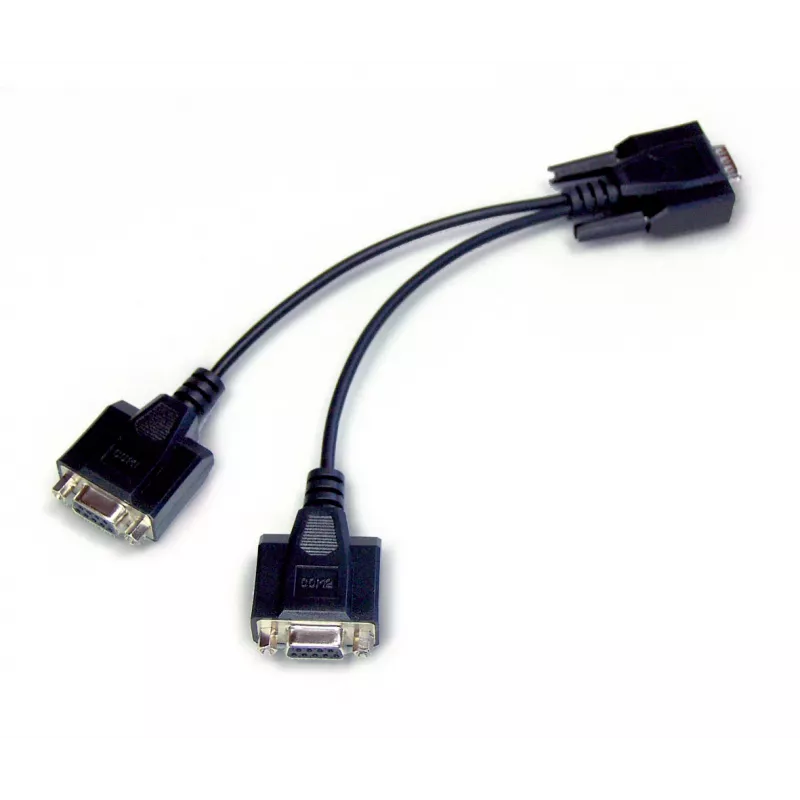

Kern CFS-A04 RS-232 Y-splitterový kábel na pripojenie dvoch zariadení k váhe

RS-232 Y-splitter cable that enables parallel connection of two peripheral devices to a single RS-232 data interface on Kern scales and other compatible equipment. It splits one RS-232 port into two parallel output ports, allowing simultaneous data communication with multiple devices such as printers, PCs, external displays, or data loggers.

Advantages

Connects two devices to one RS-232 port without the need for additional hardware or complex configuration. The parallel data connection ensures both devices receive the same data stream, making it ideal for applications requiring simultaneous output to a printer and a computer.

Suitable for

• Kern scales with RS-232 interface
• Connecting a printer and a PC to the same scale
• Data logging while displaying weight on an external display
• Any RS-232 compatible device with a D-Sub 9-pin connector

Key specifications

• Input connector: 1x RS-232 D-Sub 9-pin male
• Output connectors: 2x RS-232 D-Sub 9-pin female
• Cable length: 1.5 meters
• Colour: Black
• Jacket material: PVC

Recommendations

Verify that your scale's RS-232 output can drive two devices simultaneously. For best results, use devices with similar baud rate settings.
