Keystone modul DeLOCK 86301

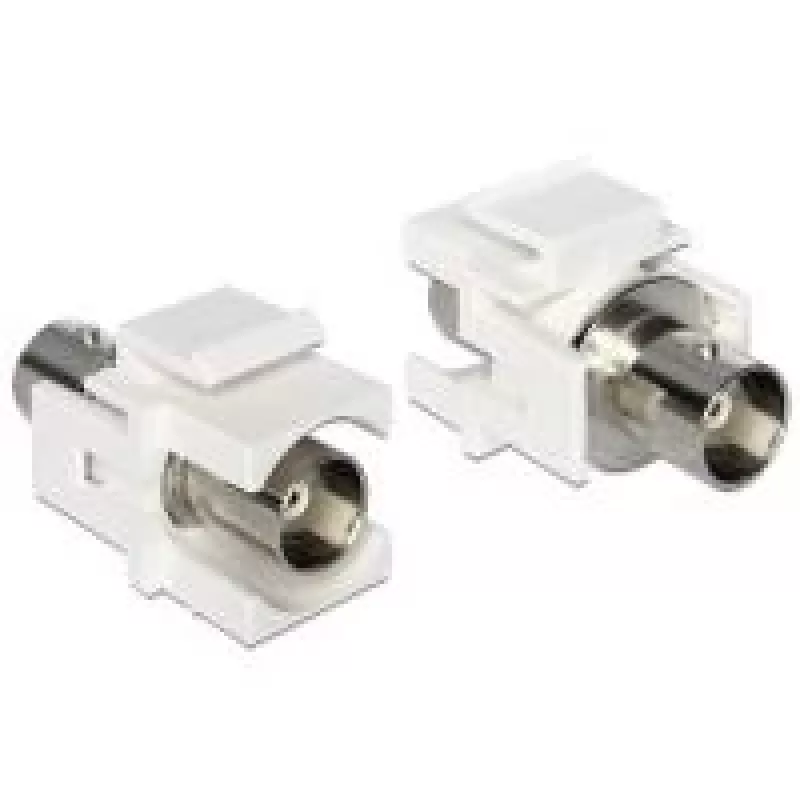

This Delock Keystone Module 86301 provides two BNC connectors for connecting antenna or video cables. Its standardized keystone dimensions (18 mm width, 32.5 mm depth, 22.3 mm height) allow snap-in mounting into keystone patch panels, face plates or surface-mount boxes, and the white colour integrates with common installations.

Advantages

The module offers two BNC ports for reliable video and audio signal transmission and a compact keystone form factor for easy installation. Standardized dimensions ensure compatibility with common keystone wall plates and panels, while the white finish maintains a discreet appearance in professional or residential setups.

Suitable for

• Video surveillance systems (CCTV) requiring BNC connections
• Audio/video installations using coaxial BNC cables
• Keystone patch panels and face plates in professional or home AV setups
• Surface-mount boxes where keystone modules are used

Key specifications

• Brand: DELOCK
• Model / MPN: 86301
• Connector 1: BNC
• Connector 2: BNC
• Product colour: White
• Dimensions (W x D x H): 18 mm x 32.5 mm x 22.3 mm

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect BNC cables to the front and rear BNC connectors as required by your installation. Ensure secure connections by pushing the BNC plugs onto the sockets and rotating or locking according to the cable type. For removal, press the module release tab (if present) and pull the module out of the plate or panel.

Recommendations

Use this keystone module in compatible keystone wall plates, patch panels or surface-mount boxes. Verify that BNC cable types and lengths are appropriate for your video or audio application and avoid excessive bending near the connectors to maintain signal integrity.
