Keystone modul DeLOCK 86342

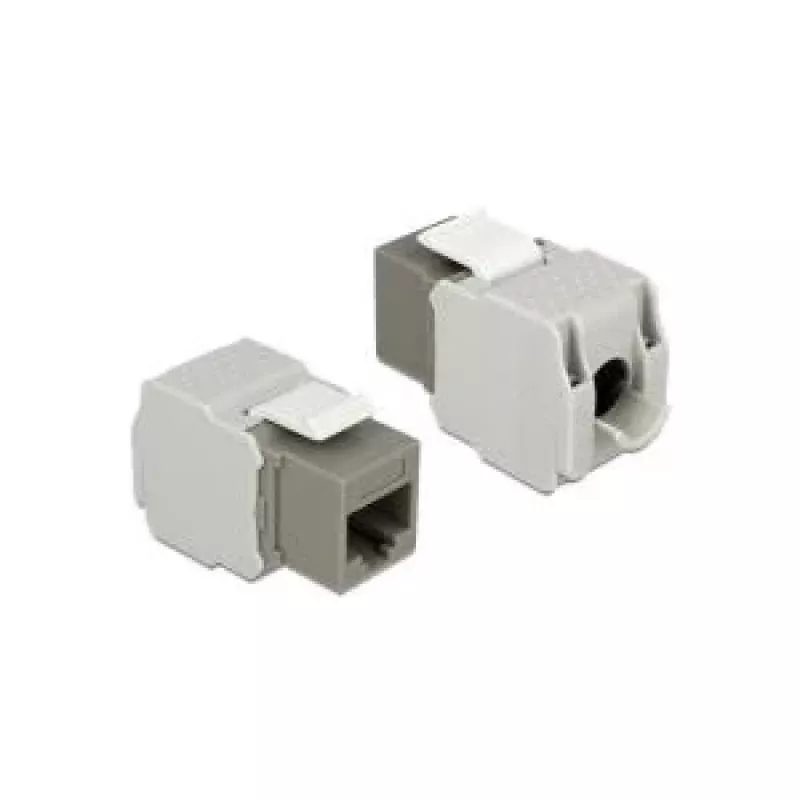

The DeLOCK 86342 keystone module connects twisted pair cable to an RJ45 female port. It has standardised dimensions for snap-in mounting in keystone patch panels, face plates or surface-mount boxes and is intended for use in structured network installations where a compact, modular RJ45 feed-through is required.

Advantages

The module offers a compact keystone form factor with a grey finish and integrated RJ-45 and LSA (punch-down) termination. Its standardised size enables tool-free snap-in installation into compatible panels or wall plates, providing a clean and organised cabling point. The durable construction supports stable mechanical and electrical connection in office or home networking environments.

Suitable for

• Creating custom patch panels
• Installing RJ45 ports in face plates or wall plates
• Surface-mount box installations
• Patch panel or outlet repairs and upgrades

Key specifications

• Brand: DELOCK
• Model / MPN: 86342
• EAN: 4043619863426
• Connectors: RJ45 female and LSA (punch-down) for twisted pair cable
• Color: Grey
• Form factor: Keystone module (standardised snap-in dimensions)

How to use

Terminate the twisted pair cable onto the module's LSA/punch-down contacts according to the required wiring scheme (T568A or T568B). Once terminated, align the keystone module with the panel or face plate opening and press it into place until it snaps securely. Connect an RJ45 plug to the front port as needed. Ensure proper cable strain relief and routing within the enclosure or wall box.

Recommendations

Verify compatibility of the keystone opening dimensions with the target patch panel, face plate or surface-mount box before installation. Use the correct wiring standard consistently across the installation and use a suitable punch-down tool to ensure reliable terminations.
