Keystone modul DeLOCK 86345

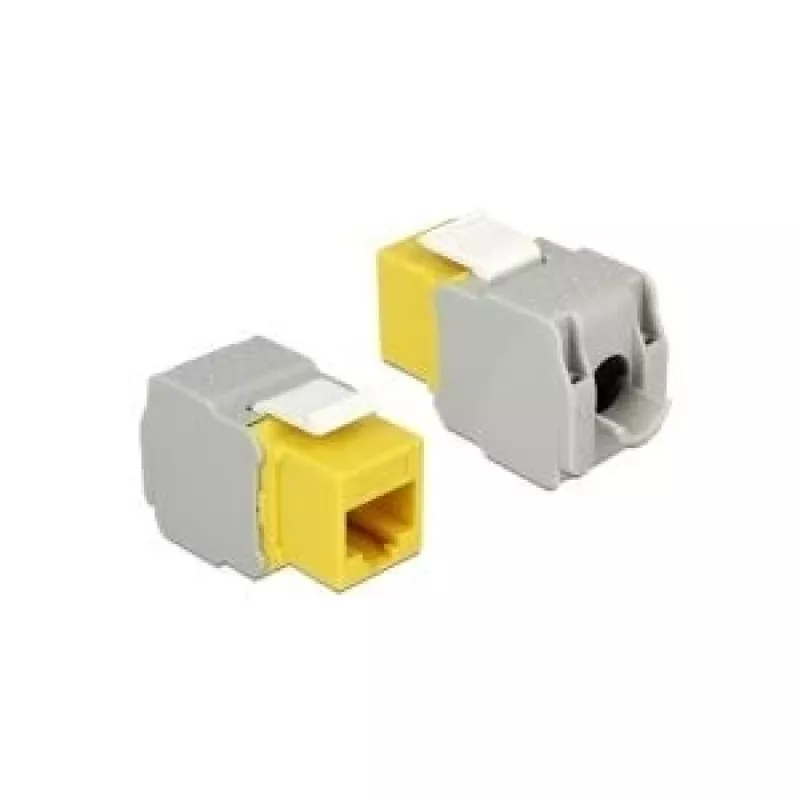

This Delock Keystone Module 86345 allows connection of twisted pair cable to an RJ45 female port. With standardised keystone dimensions and a grey-and-yellow design, the module fits snap-in into keystone patch panels, faceplates or surface-mount boxes and provides durable, reliable network connectivity for installations.

Advantages

The module combines an RJ45 female interface with an LSA termination block for direct connection of twisted pair cables. Its standard keystone format enables easy snap-in mounting and straightforward integration into existing network panels and wall plates. The compact, durable construction supports stable performance in structured cabling environments.

Suitable for

• Keystone patch panels
• Face plates and wall outlets
• Surface-mount boxes
• Network cabling installations using twisted pair cable

Key specifications

• Brand: DELOCK
• Model / MPN: 86345
• Connectors: RJ45 female and LSA termination
• Format: Keystone module (standard dimensions)
• Colour: Grey and yellow
• Category: Accessories for networks

How to use

Terminate the twisted pair cable onto the LSA block according to the wiring standard in use (e.g., T568A/T568B), then snap the keystone module into the desired patch panel, face plate or surface-mount box until it locks. Plug the network patch cable into the RJ45 female port to establish the network connection. Ensure proper cable routing and strain relief to maintain stable contacts.

Recommendations

Use appropriate cable preparation tools for LSA termination and verify wiring with a cable tester after installation. Install the module in compatible keystone openings and avoid excessive mechanical stress on the connectors during mounting and use.
