Keystone modul DeLOCK 86370

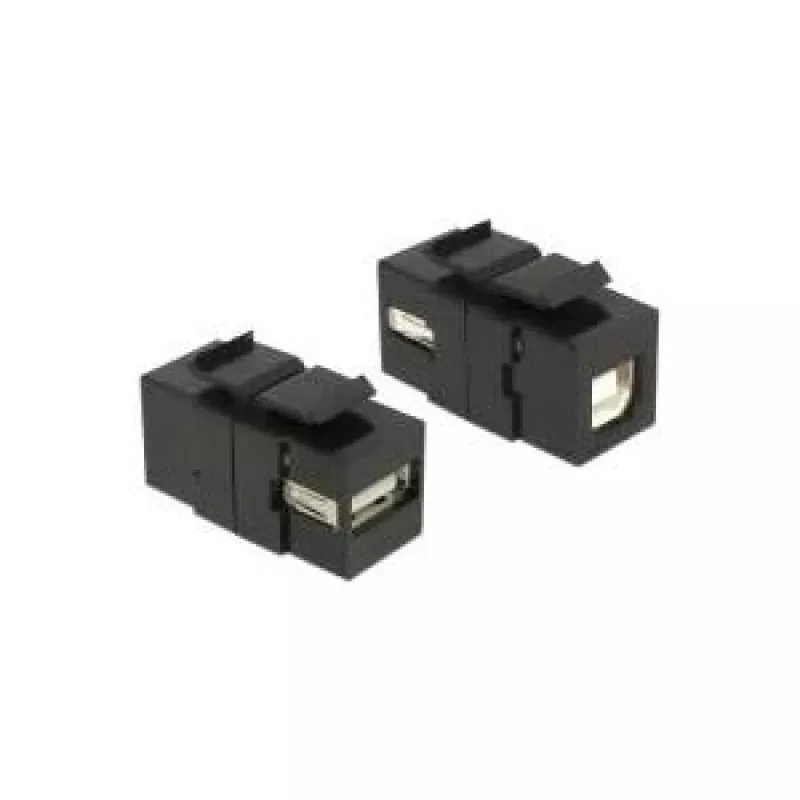

The DeLOCK 86370 Keystone Module provides a compact panel-mount solution with a USB 2.0 A and a USB 2.0 B connector. It is intended to extend or join USB cables and fits standard keystone cutouts for installation in patch panels, face plates or surface-mount boxes. The module measures 22.3 mm in width and 16.8 mm in height and is finished in black to match common keystone wall plates.

Advantages

The keystone format enables snap-in mounting into standard keystone panels and plates without additional tools. Offering both a USB 2.0 A and USB 2.0 B connector, the module supports easy extension or reconfiguration of USB cabling. Its compact dimensions save space in panels and enclosures while the black colour provides neutral visual integration.

Suitable for

• Extending or joining USB 2.0 cables
• Installation in keystone patch panels
• Use with keystone face plates and surface-mount boxes
• Space-constrained enclosure or wall plate setups

Key specifications

• Connector 1: USB 2.0 A
• Connector 2: USB 2.0 B
• Width: 22.3 mm
• Height: 16.8 mm
• Colour: Black

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect the USB 2.0 A and USB 2.0 B cables to the respective connectors to extend, join or adapt the USB connection. Ensure connectors are seated fully to maintain reliable electrical contact.

Recommendations

Use the module with USB 2.0 cables and devices to preserve performance expectations for USB 2.0 signalling; avoid forcing incompatible connectors and verify the keystone panel or plate accepts standard keystone modules of the stated dimensions.
