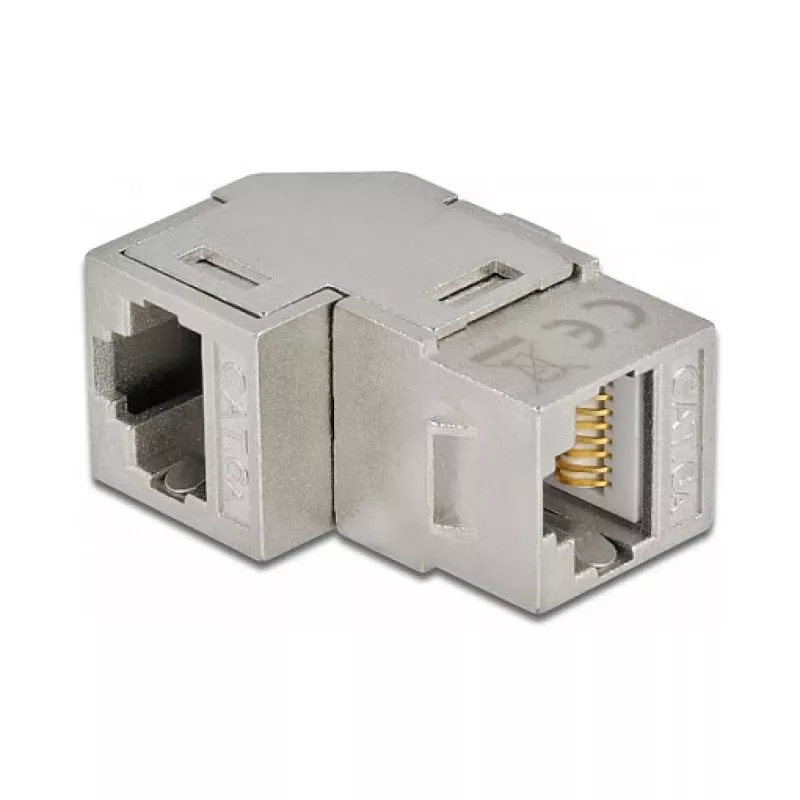

Keystone modul DeLOCK 86997 zahnutý

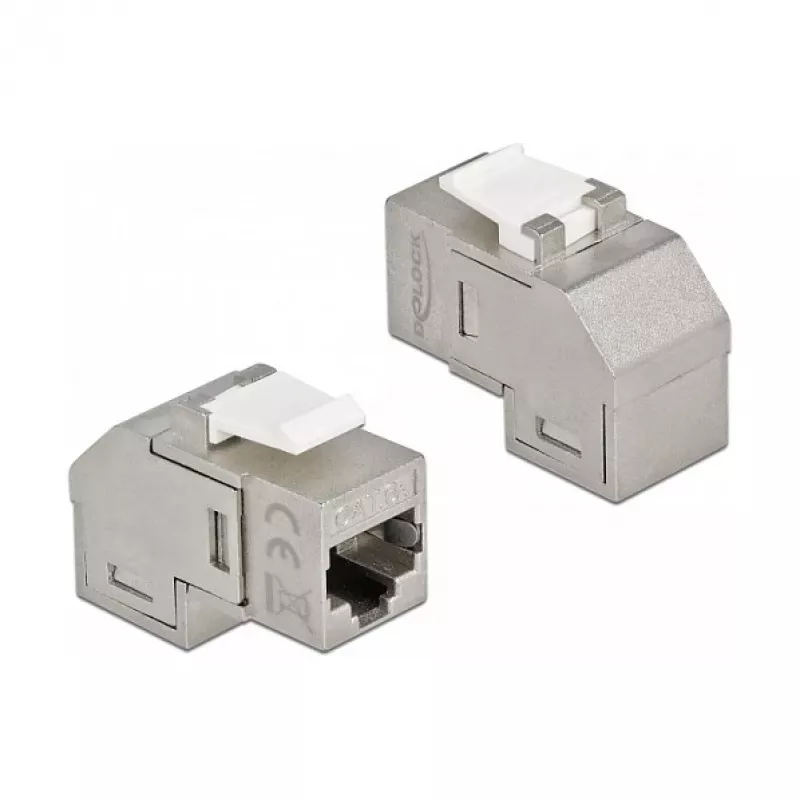

The DeLOCK 86997 Angled Keystone Module is a compact snap-in module designed for extending twisted pair cables and providing an RJ-45 network connection. Its standardized dimensions and angled design allow installation in keystone patch panels, face plates or surface-mount boxes where a space-saving, panel-mounted RJ-45 interface is required.

Advantages

This angled keystone module offers a space-efficient form factor with standardised dimensions for easy snap-in mounting. The integrated RJ-45 connector provides a reliable network interface while the silver and white finish ensures a neutral appearance in patch panels and face plates. The module is sold individually, allowing flexible deployment and replacement.

Suitable for

• Patch panels and keystone frames
• Face plates and wall plates
• Surface-mount boxes and small enclosures
• Extending or terminating twisted pair network cables

Key specifications

• Brand: DELOCK
• Model / MPN: 86997
• EAN: 4043619869978
• Connector: RJ-45
• Orientation: Angled
• Dimensions (W x D x H): 19.4 mm x 33.8 mm x 16.7 mm
• Colour: Silver / White
• Sold: Single unit

How to use

Insert the keystone module into a compatible keystone opening of a patch panel, face plate or surface-mount box until it snaps into place. Terminate the twisted pair cable to the RJ-45 connector following the appropriate wiring standard (e.g., T568A or T568B) and verify the connection with network testing equipment. For replacement, depress the module latch and pull it out, then insert a new module in the same manner.

Recommendations

Use the DeLOCK 86997 in keystone-compatible panels and plates that accept standard keystone dimensions. Follow industry wiring standards for RJ-45 termination and verify connections after installation. Avoid excessive bending of cables at the angled connector to maintain signal integrity.
