Keystone modul Digitus Cat. 6A tienený set s inteligentným správcom káblov 24 kusov

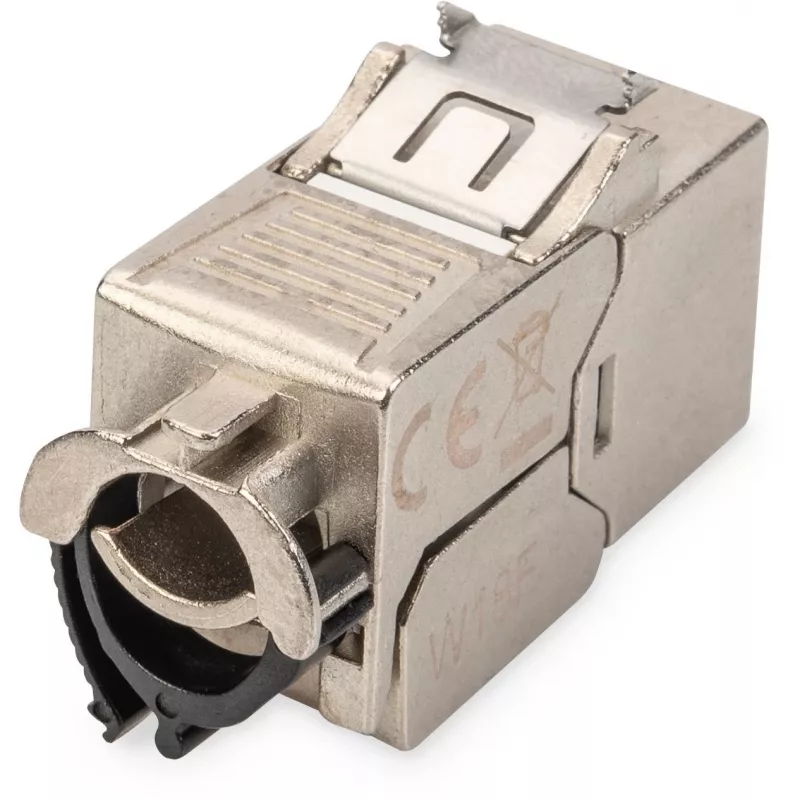

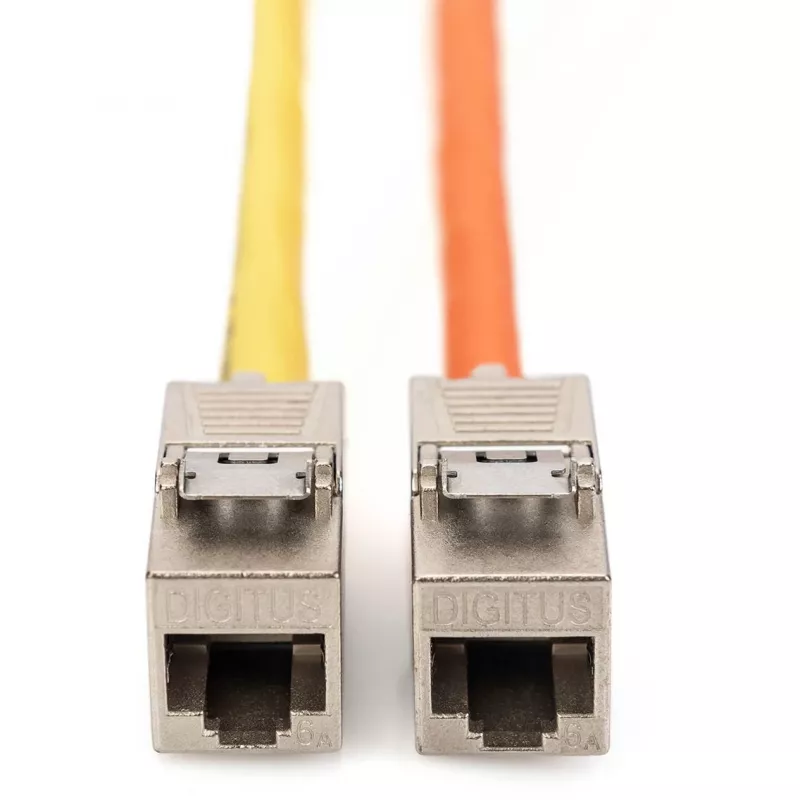

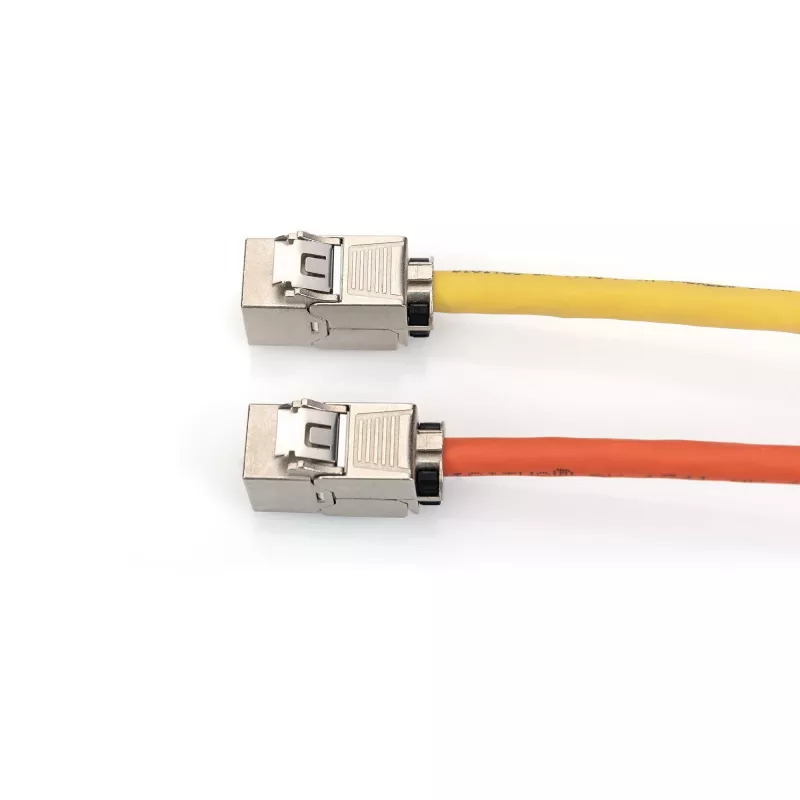

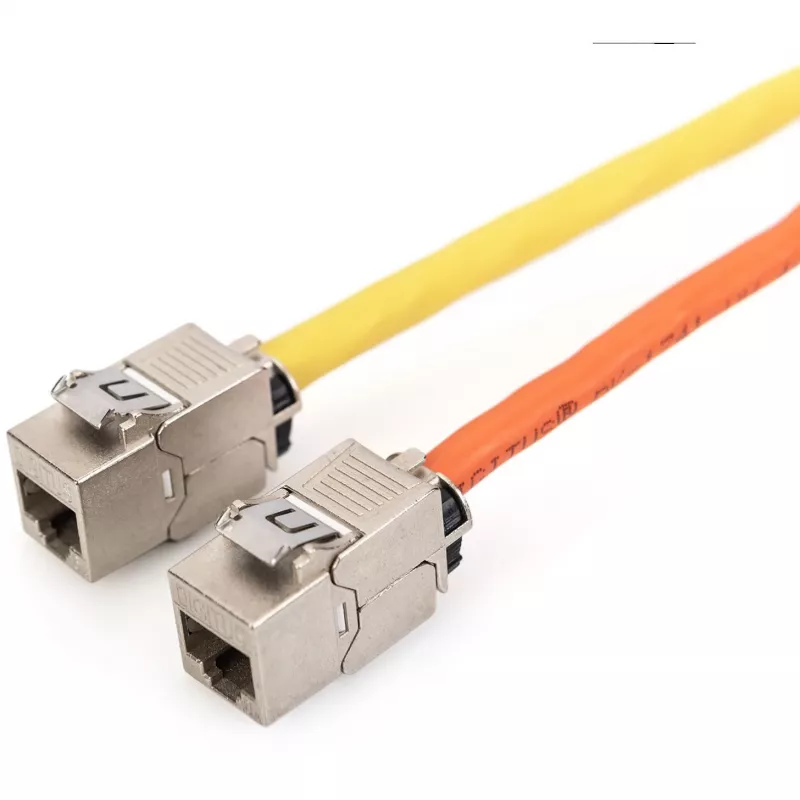

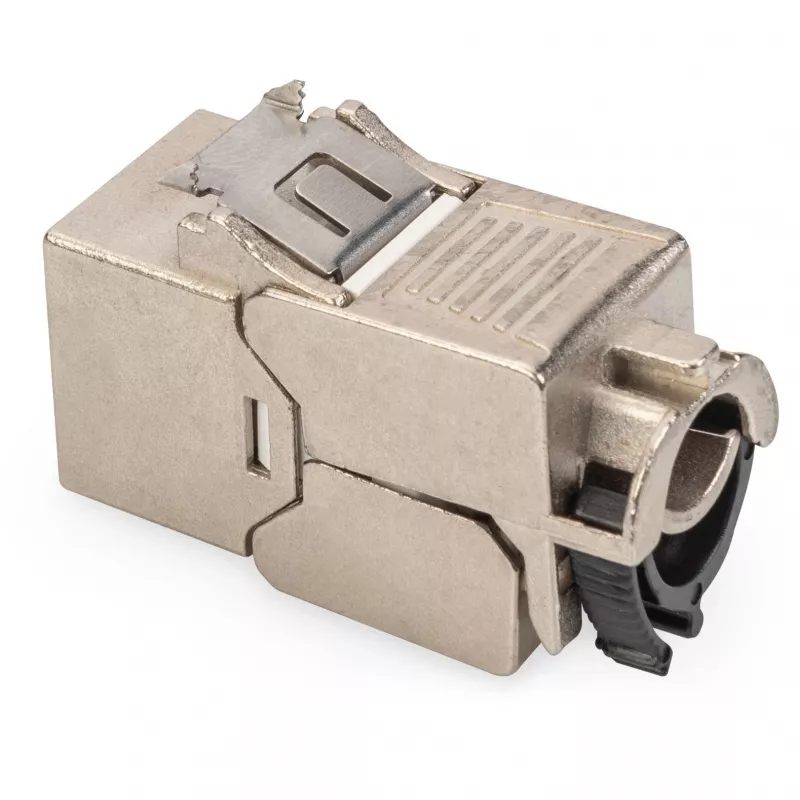

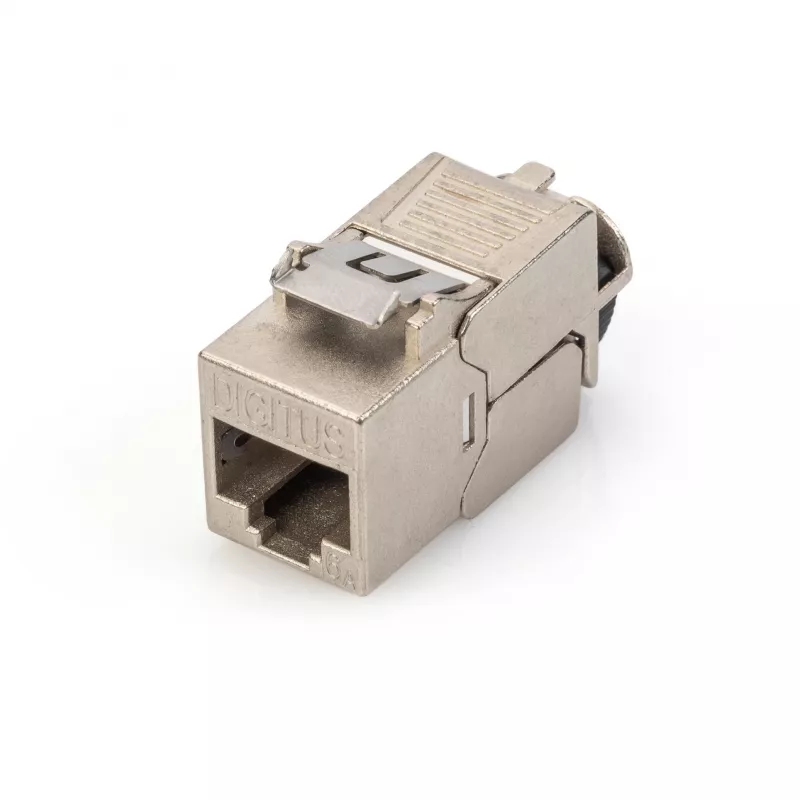

The DIGITUS Cat. 6A shielded keystone module set (24 pcs, model DN-93619-24) is a compact, tool-free RJ45 connector solution for high-speed network installations. Each module provides 360° shield contact, a metal locking lever and an intelligent, resealable cable manager for reliable cable grip and fixation. The flat design allows series installation of 24 modules in a 483 mm (19") 1U panel and is compatible with modular junction boxes.

Advantages

These shielded Cat. 6A keystone modules support PoE standards IEEE 802.3af/at/bt and use an LSA insulation-displacement connector with color-coded termination for EIA/TIA 568 A & B. The modules offer full shield contact for improved EMC performance, a metal locking lever for secure jack retention, and a dust protection cap for the RJ45 jack. Tool-free assembly and a compact form factor simplify field installation and high-density panel mounting.

Suitable for

• Structured cabling of high-speed Ethernet networks (Cat. 6A)
• 19" patch panels (1U) and modular junction boxes
• Environments requiring shielded connections and PoE delivery
• Field installations where tool-free assembly is preferred

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93619-24
• Standard: Cat. 6A, shielded
• Connector: RJ45 keystone with LSA insulation-displacement termination
• Shield contact: 360°
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE)
• Quantity: 24 pieces
• Dimensions (per module): 14.5 mm width × 34.5 mm depth × 21 mm height
• Color: silver
• Country of manufacture: China
• Certification: GHMT

How to use

Terminate the network cable into the LSA insulation-displacement connector following the color-coded scheme for EIA/TIA 568 A or B. Insert the cable into the intelligent cable manager and reseal for cable grip and fixation. Snap the keystone module into the compatible 19" panel or modular junction box until the metal locking lever engages. Fit the dust protection cap when the RJ45 jack is not in use.

Recommendations

Install modules in rows to maximize panel density; verify PoE budget and grounding in shielded installations and follow EIA/TIA wiring standards during termination.
