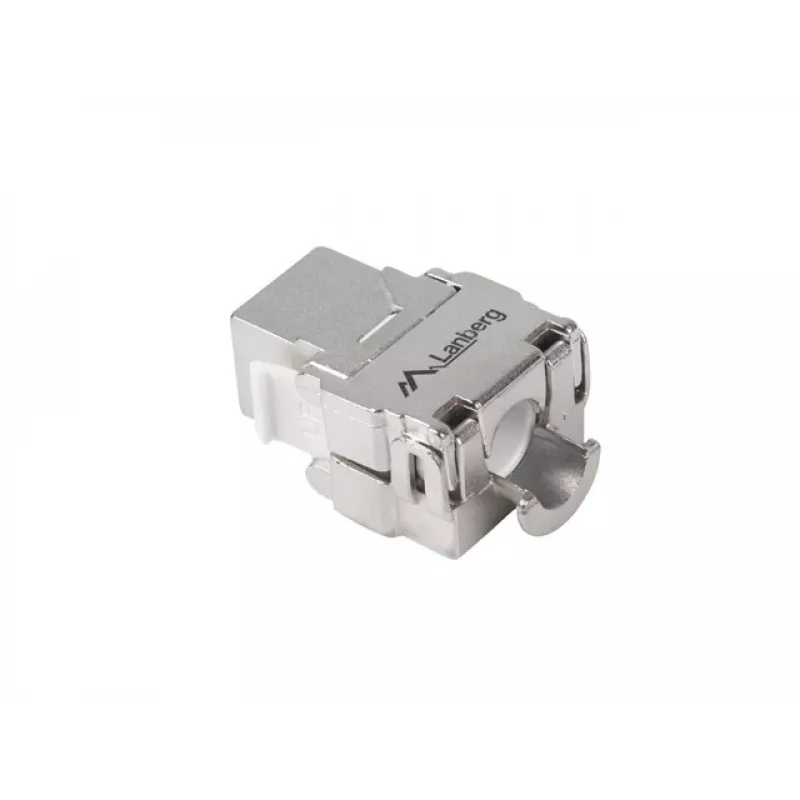

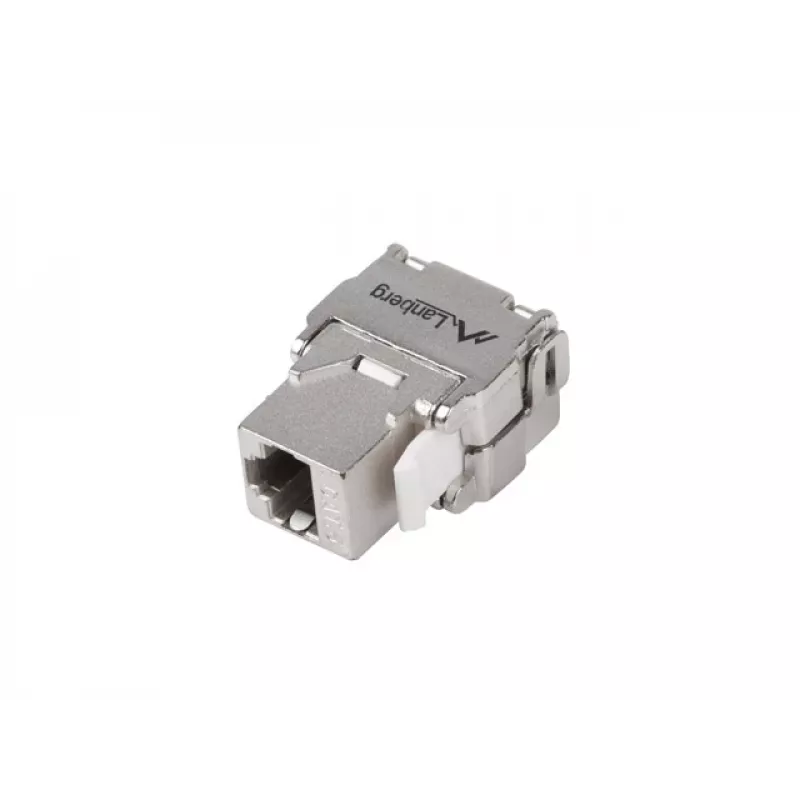

Keystone modul Lanberg KSF6-2000

Lanberg KSF6-2000 is a Cat.6 FTP toolless keystone module with a female RJ45 (8P/8C) socket and an LSA-style internal connector. The flat keystone (dimensions for mounting aperture 16.10 x 14.50 mm) fits into standard 45x45 adapters, electrical frames or modular panels and is suitable for structured cabling where a shielded Cat.6 connection is required. The module supports both 568A and 568B wiring schemes and is built on a PCBA printed circuit board with stainless-steel exterior colour.

Advantages

The module provides a shielded FTP Cat.6 RJ45 port compliant with EN 50173-1:2011, EN 60603-7-4 and ANSI/TIA-568-C.2 standards, supporting stranded and solid conductors from 22 to 26 AWG (up to 0.644 mm). Toolless, slotted universal connectors accept LSA-compatible punchdown tools and allow easy termination in either 568A or 568B sequence. PoE is supported up to 36 V, and the compact flat form factor enables installation into varied keystone adapter frames and panels.

Suitable for

• Structured cabling installations in residential and commercial premises
• 45x45 modular wall plates and adapter frames
• Modular patch panels and electrical equipment frames
• Shielded Cat.6 network segments requiring FTP protection

Key specifications

• Connector: 1 x female RJ45 (8P/8C) external, LSA-style internal
• Category: Cat.6 (shielded, FTP)
• Standards: EN 50173-1:2011, EN 60603-7-4, ANSI/TIA-568-C.2
• Wire compatibility: stranded and solid, 22–26 AWG (≤0.644 mm)
• Wiring: supports 568A and 568B
• PoE support: up to 36 V
• Mounting aperture (H x W): 16.10 x 14.50 mm
• MPN: KSF6-2000, Brand: LANBERG

How to use

Insert the keystone module into a compatible adapter or panel aperture sized approximately 16.10 x 14.50 mm until it snaps into place. Prepare the network cable by stripping the outer jacket to expose pairs, arrange conductors according to either the 568A or 568B colour code printed on the connector, and terminate each conductor into the slotted LSA-style contacts. Use an LSA-compatible punchdown tool if required to ensure secure connections. After termination, verify shielding continuity and test the link with appropriate network testers.

Recommendations

For reliable performance, use shielded FTP cable throughout the shielded segment and maintain proper grounding of the keystone and associated panels. Limit PoE voltage to the specified 36 V and test each terminated port for continuity, pair integrity and Cat.6 performance according to the referenced standards.
