Klauke 103R10 káblová koncovka, 16 mm², M5, pocínovaná, meď, sivá, 20 mm

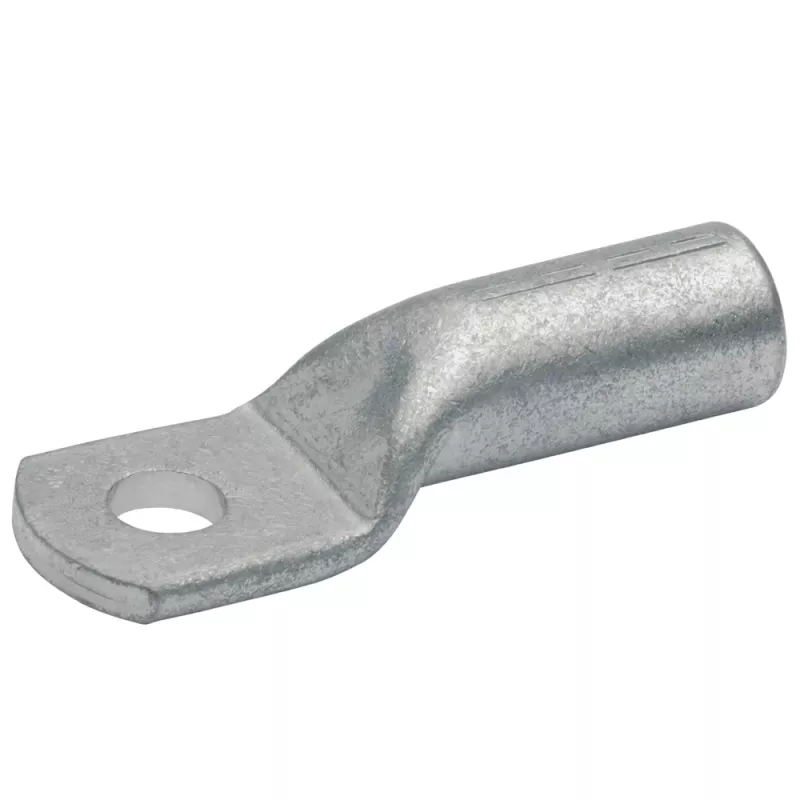

The Klauke 103R10 is a high-quality tubular cable lug designed for reliable and permanent connections of copper conductors. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion resistance and conductivity. This lug is suitable for crimping and complies with DIN 46235 standards, ensuring professional-grade performance in electrical installations.

Advantages

Tin-plated surface provides long-lasting protection against oxidation and corrosion. Electrolytic copper ensures optimal electrical conductivity. Precision manufacturing guarantees a secure fit and consistent crimping results. RoHS and halogen-free compliance makes it environmentally friendly and safe for use in sensitive environments.

Suitable for

• Power distribution systems
• Control cabinets and switchgear
• Industrial machinery and equipment
• Automotive and marine electrical systems
• Renewable energy installations (solar, wind)

Key specifications

• Conductor cross-section: 16 mm²
• Bolt hole diameter: M5 (5.3 mm)
• Material: Electrolytic copper (E-Cu), tin-plated
• Overall length: 20 mm
• Barrel inner diameter: 5.8 mm
• Barrel outer diameter: 8.5 mm
• Palm width: 12 mm
• Palm thickness: 1.5 mm
• Temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V
• Standard: DIN 46235
• RoHS compliant: Yes
• Halogen-free: Yes

Recommendations

For best results, use with a suitable crimping tool designed for tubular cable lugs. Ensure the conductor is properly stripped and inserted fully into the barrel before crimping. Always follow local electrical codes and manufacturer instructions.
