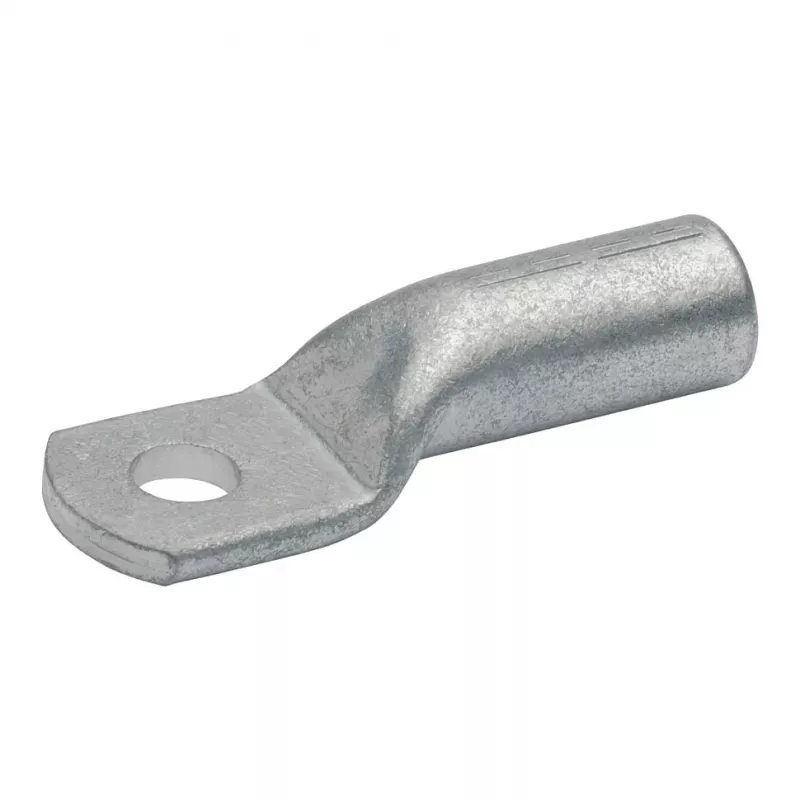

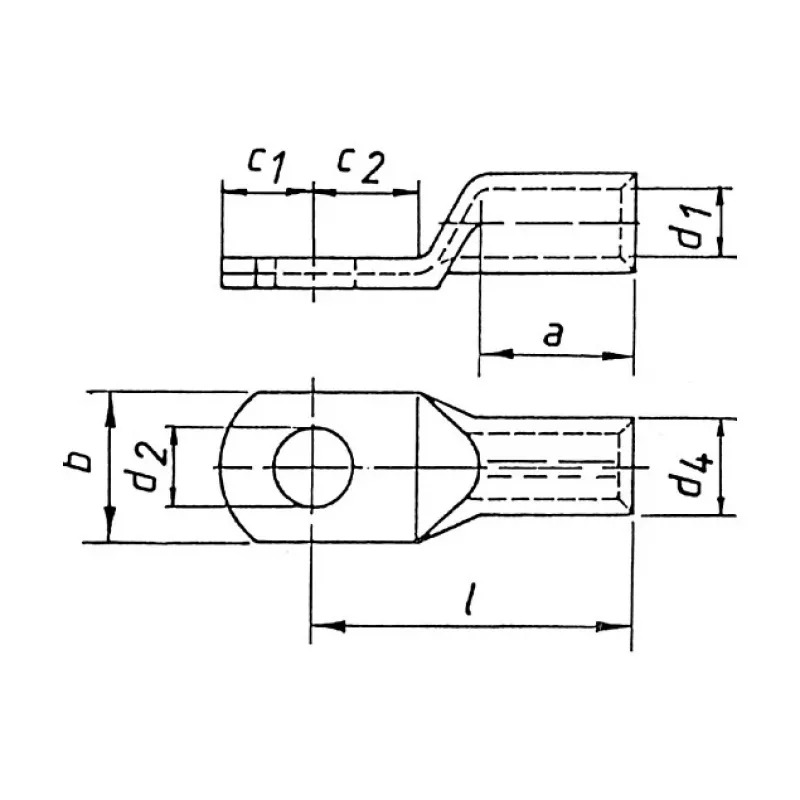

KLAUKE 104R6 rúrkový káblový koncovka, 25 mm², M6, pocínovaná meď, sivá

The KLAUKE 104R6 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This uninsulated crimp connector is suitable for fine-stranded, multi-stranded, and solid copper conductors, making it a versatile choice for professional electrical installations.

Advantages

• High-purity electrolytic copper (>99.9%) for optimal electrical conductivity
• Tin-plated surface provides superior corrosion protection
• Seamless drawn tube construction ensures mechanical strength
• Complies with DIN 46235 standard for quality and reliability
• Suitable for a wide range of conductor types

Suitable for

• Electrical panel building
• Power distribution systems
• Industrial machinery wiring
• Automotive and marine applications

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 25 mm²
• Bolt Hole Size: M6
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Standard: DIN 46235
• Connection Method: Crimp
• Insulation: Uninsulated
• Length: 20 mm
• Colour: Silver-grey (metallic)
• Temperature Range: -40°C to +120°C
• Number of Bolt Holes: 1

Recommendations

For best results, use with a suitable crimping tool and ensure proper conductor preparation. Always follow manufacturer guidelines for installation.
