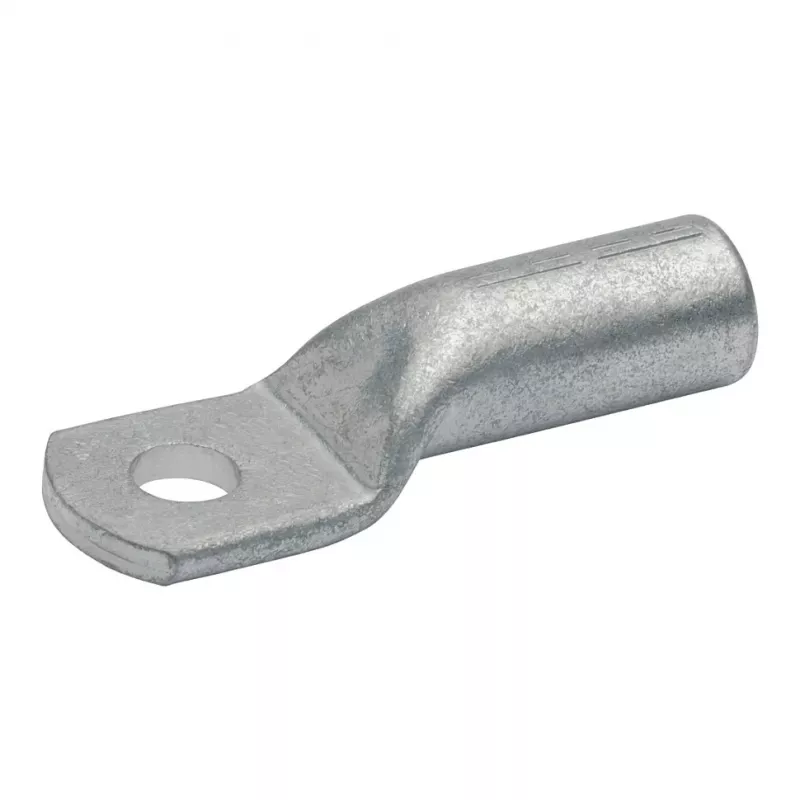

Klauke 105R12 rúrkový káblový ok, pocínovaná meď, 35 mm², M12

The Klauke 105R12 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This cable lug is suitable for fine-stranded, multi-stranded, and solid copper conductors with a cross-section of 35 mm². With a bolt hole diameter of 12.5 mm (M12 bolt size) and an overall length of 48 mm, it is ideal for power distribution, control cabinets, and industrial wiring applications.

Advantages

Tin-plated surface provides superior corrosion protection and long-term reliability. Inspection hole allows for visual verification of proper conductor insertion. Compatible with a wide range of conductor types, offering flexibility in installation. Meets industrial standards similar to DIN 46235, ensuring consistent quality and performance.

Suitable for

• Power distribution systems
• Control cabinets and switchgear
• Industrial wiring and automation
• Electrical panel installations

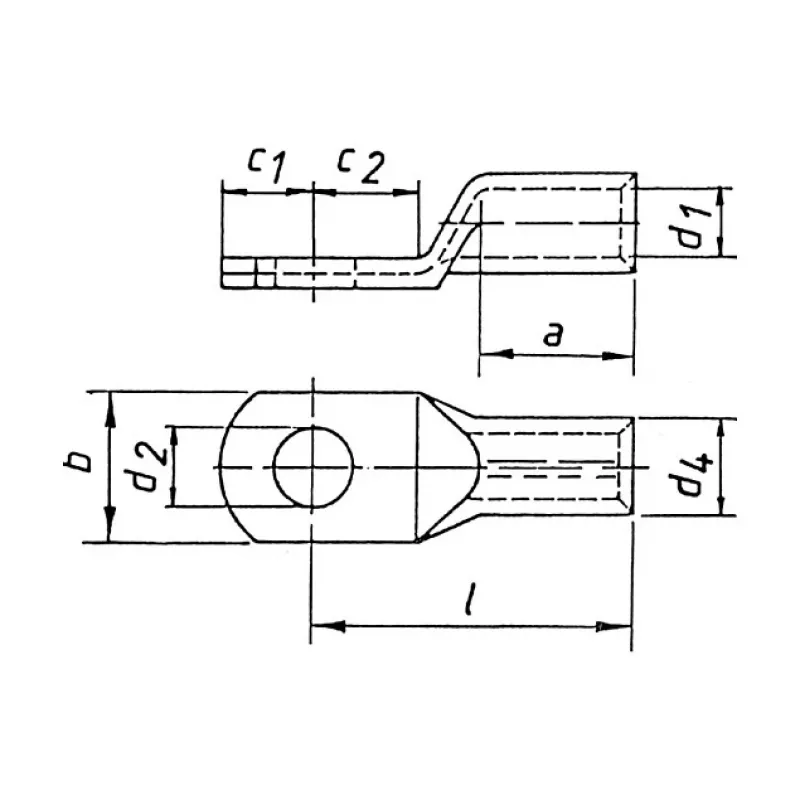

Key specifications

• Product Type: Tubular Cable Lug
• Material: Electrolytic Copper (E-Cu), tin-plated
• Conductor Cross-Section: 35 mm²
• Bolt Hole Diameter: 12.5 mm (M12)
• Inner Barrel Diameter: 8.2 mm
• Overall Length: 48 mm
• Palm Width: 20 mm
• Connection Method: Crimp
• Operating Temperature Range: -40°C to +120°C
• Max. Voltage Rating: 1000 V (1 kV)
• Color: Silver-grey
• Standard Compliance: Industrial Standard (similar to DIN 46235)

Recommendations

For optimal performance, use with appropriate crimping tools and dies designed for 35 mm² copper lugs. Ensure proper conductor stripping and insertion before crimping. Always follow manufacturer's instructions and applicable electrical codes.
