Klauke 107R12 káblová koncovka, meď, 70 mm², M12, pocínovaná, sivá

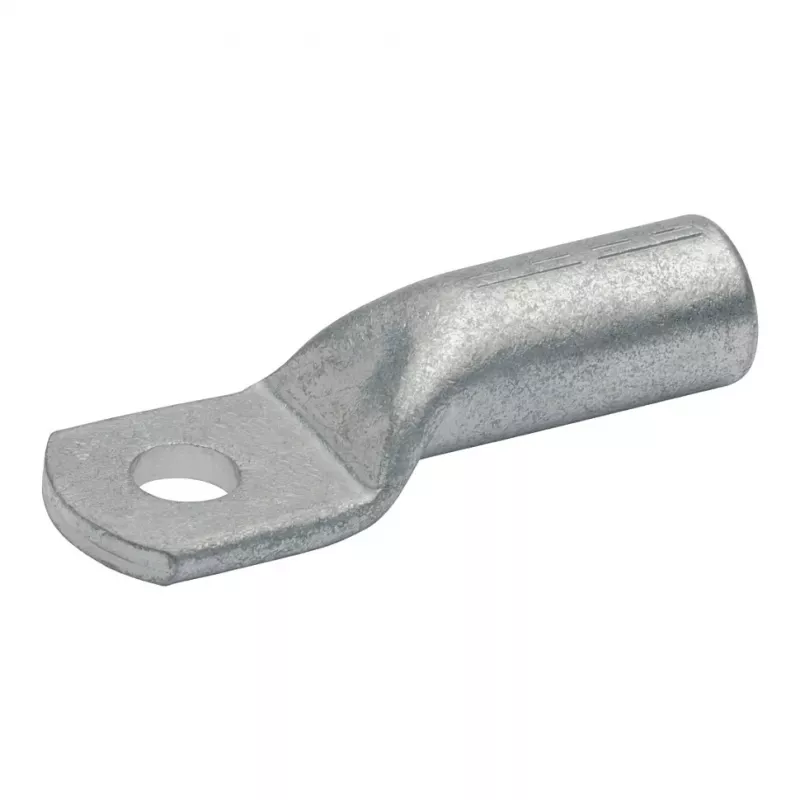

The Klauke 107R12 is a high-quality tubular cable lug designed for reliable crimp connections of copper conductors in electrical installations. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion resistance and conductivity. This cable lug complies with DIN 46235 and is suitable for conductors up to 1000 V.

Advantages

Tin-plated surface prevents oxidation and ensures long-lasting performance. The tubular barrel design provides a secure crimp connection, reducing contact resistance. Suitable for a wide temperature range from -50°C to +150°C.

Suitable for

• Copper conductors in power distribution
• Electrical panels and switchgear
• Industrial machinery and equipment
• Automotive and marine electrical systems

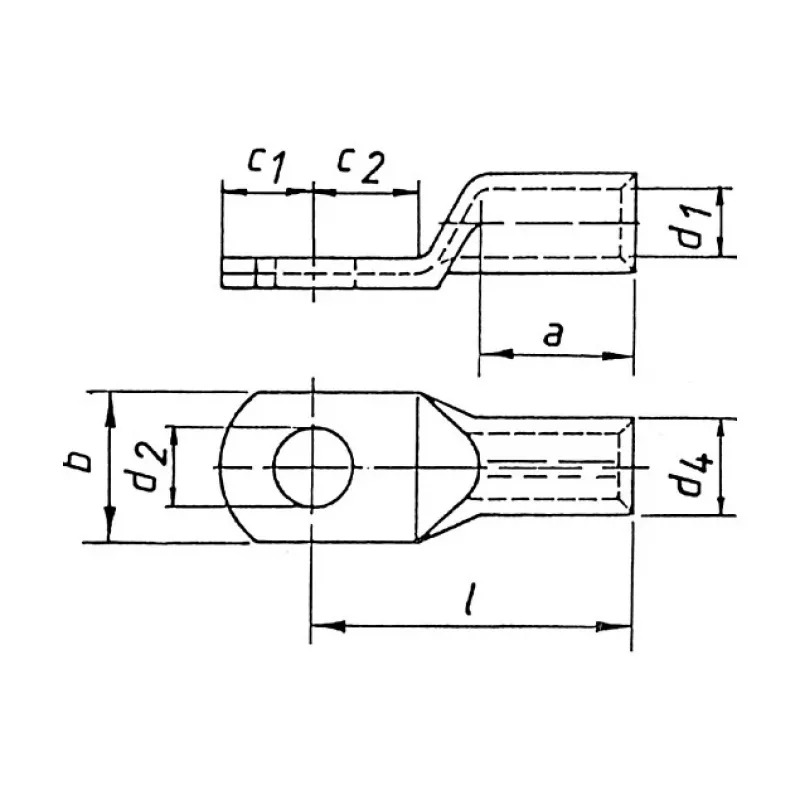

Key specifications

• Conductor cross-section: 70 mm²
• Bolt hole diameter: 12 mm (M12)
• Overall length: 52 mm
• Palm width: 23 mm
• Inner diameter: 11.5 mm
• Outer diameter: 15.5 mm
• Wall thickness: approx. 2 mm
• Material: Electrolytic copper, tin-plated
• Colour: Metallic grey (tin)
• Standard: DIN 46235

Recommendations

For optimal performance, use with a suitable crimping tool and ensure proper conductor preparation. Always follow manufacturer guidelines for crimping force and die selection.
