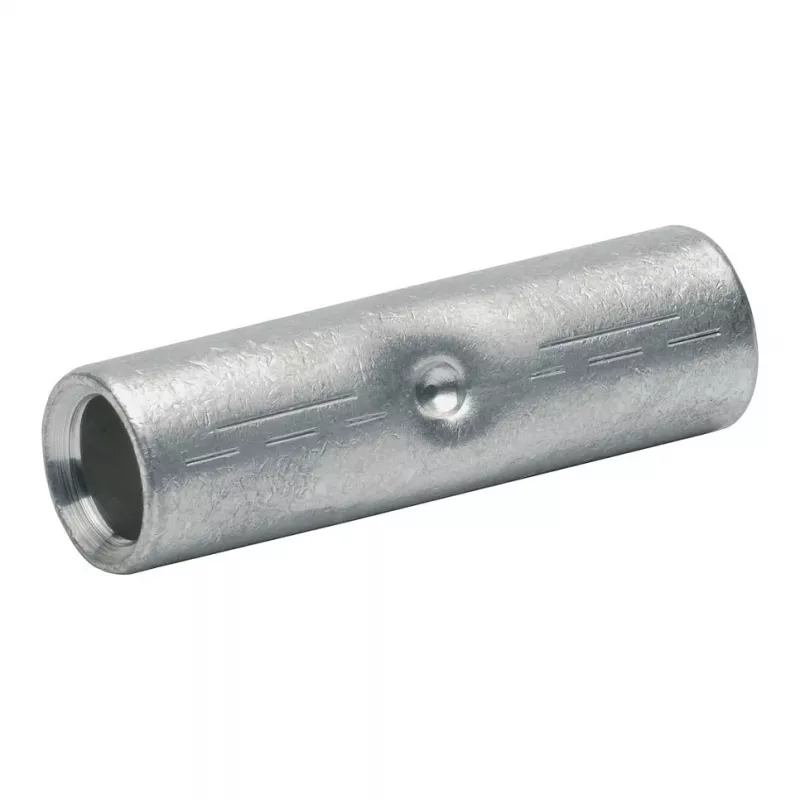

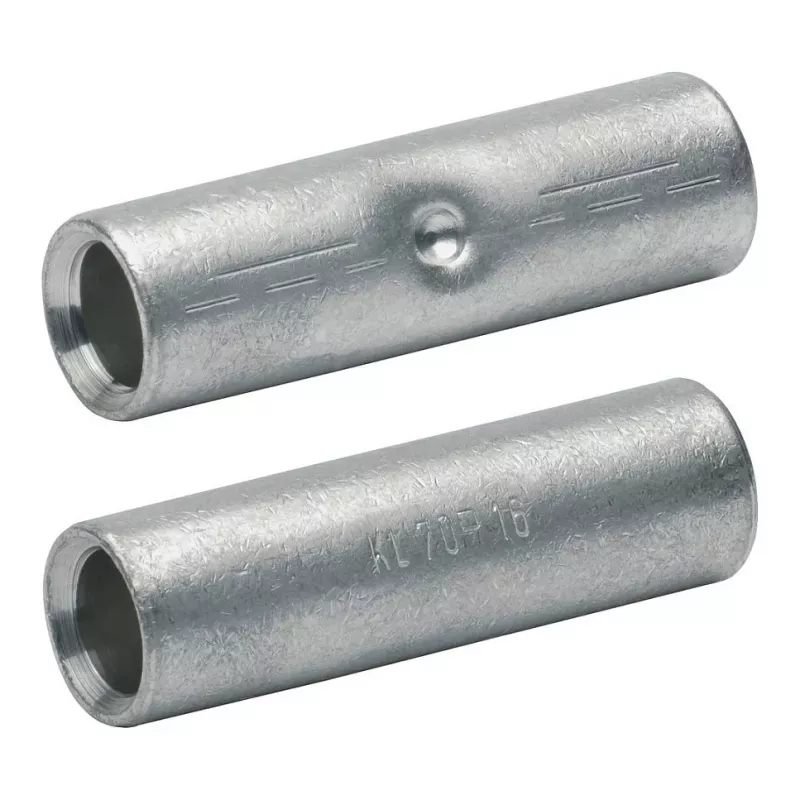

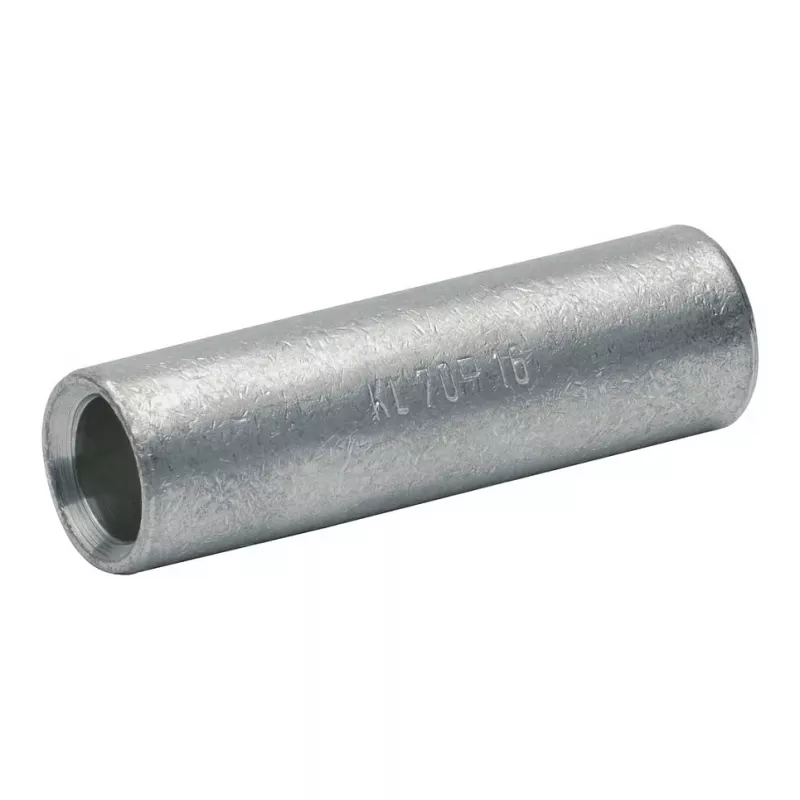

Klauke 122R lisovacia spojka 10 mm² rúrková spojka, pocínovaná meď

The Klauke 122R press connector is a high-quality tube connector designed for permanent and reliable connections of copper conductors. Manufactured from electrolytic copper (E-Cu) with a galvanically tinned surface, it ensures excellent corrosion resistance and long-term conductivity. This connector is suitable for stranded and fine-stranded copper conductors with a cross-section of 10 mm² and is crimped using the hexagonal crimping method according to DIN 46235. It is ideal for use in electrical installations, switchgear, and control cabinets where secure and durable connections are required.

Advantages

High-quality electrolytic copper ensures optimal electrical conductivity. Galvanic tinning provides excellent corrosion protection. Hexagonal crimping guarantees a secure and permanent connection. Wide operating temperature range from -50 °C to +150 °C. RoHS and halogen-free compliant for environmental safety.

Suitable for

• Connecting two copper conductors in electrical installations
• Use in switchgear and control cabinets
• Industrial and commercial wiring applications
• Power distribution systems up to 1000 V

Key specifications

• Conductor cross-section: 10 mm²
• Connector type: Tube connector (Rohrverbinder)
• Material: Electrolytic copper (E-Cu), tinned
• Standard: DIN 46235
• Crimping type: Hexagonal crimping
• Length: 45 mm
• Outer diameter: 8.5 mm
• Inner diameter: 4.5 mm
• Operating temperature: -50 °C to +150 °C
• Rated voltage: Up to 1000 V
• RoHS compliant: Yes
• Halogen-free: Yes

Recommendations

For optimal results, use with a suitable Klauke crimping tool and die set designed for hexagonal crimping of 10 mm² connectors. Always follow the manufacturer's instructions and applicable electrical codes.
