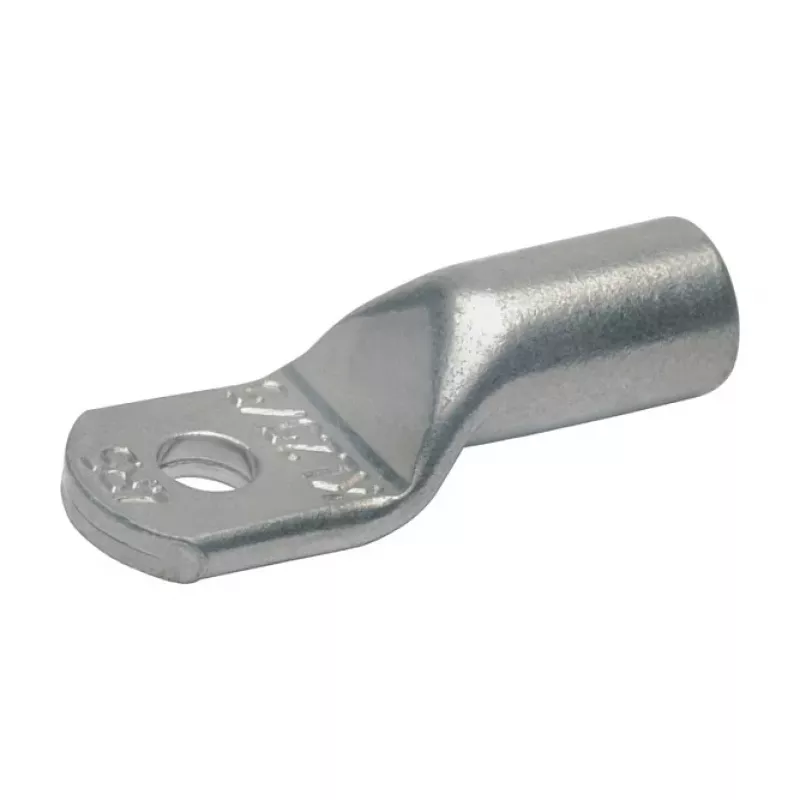

Klauke 5R10 kruhový káblový ok - pocínovaná meď - 35 mm² - M10

The Klauke 5R10 is a high-quality ring terminal lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tinned surface, this lug ensures excellent conductivity and corrosion resistance. It is suitable for crimping onto copper conductors with a cross-section of 35 mm² and features a bolt hole diameter of 10 mm (M10). The straight design and inspection hole facilitate easy installation and verification. Compliant with DIN 46235, this terminal lug is ideal for use in industrial, commercial, and automotive applications where secure and long-lasting connections are required.

Advantages

• High conductivity electrolytic copper (E-Cu) for minimal power loss
• Tinned surface provides excellent corrosion protection
• Inspection hole allows visual confirmation of proper conductor insertion
• Straight design simplifies crimping in tight spaces
• Complies with DIN 46235 for standardized quality

Suitable for

• Power distribution systems
• Control cabinets and switchgear
• Automotive and marine electrical systems
• Industrial machinery and equipment
• Renewable energy installations

Key specifications

• Cable cross-section: 35 mm²
• Bolt hole diameter: 10 mm (M10)
• Material: Electrolytic copper (E-Cu), tinned
• Connection type: Crimp
• Design: Straight
• Standard: DIN 46235
• Voltage rating: Up to 1000 V
• Temperature range: -50°C to +120°C
• Barrel inner diameter: 8.5 mm
• Barrel outer diameter: 12.5 mm
• Ring width: 18 mm
• Ring thickness: 3 mm
• Color coding (Klauke): Blue

Recommendations

For optimal performance, use with a suitable crimping tool designed for 35 mm² copper lugs. Ensure the conductor is fully inserted into the barrel before crimping. Verify the crimp connection with a pull test if required.
