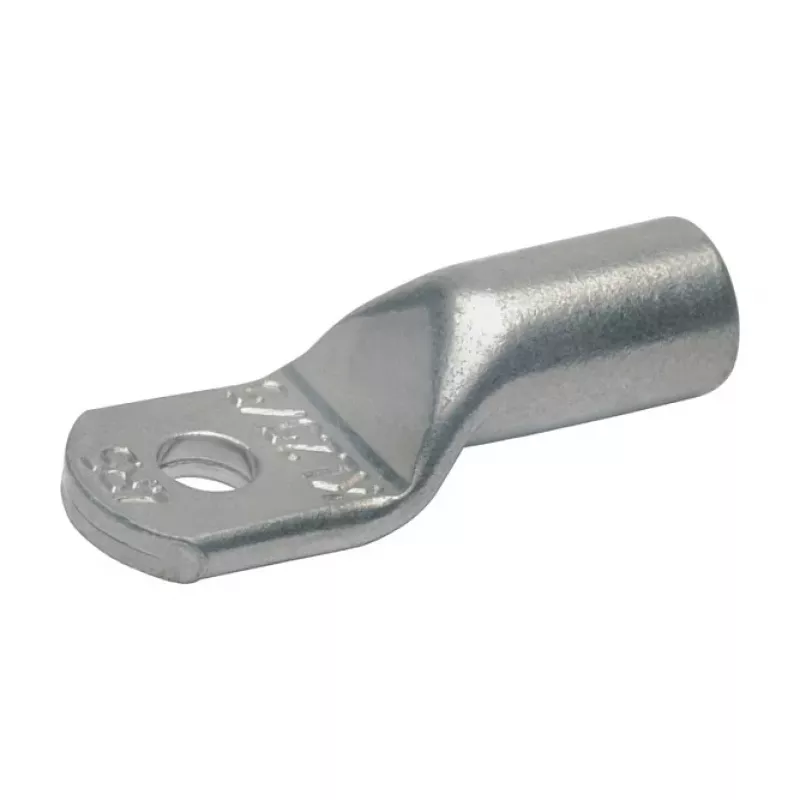

Klauke 9R16 rúrkový káblový ok, pocínovaná meď, 120 mm², M16

The Klauke 9R16 is a high-quality tubular ring lug designed for reliable electrical connections in power distribution and industrial applications. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. It is suitable for stranded copper conductors with a cross-section of 120 mm² and features a bolt hole diameter of 16.5 mm (M16). The straight, uninsulated design complies with DIN 46235 and is compatible with hexagonal crimping tools, especially those from Klauke.

Advantages

Tin-plated surface provides superior corrosion protection and long-term reliability. Electrolytic copper material ensures optimal electrical conductivity. Straight tubular design allows for easy and secure crimping. Complies with DIN 46235 for standardized performance. Wide operating temperature range from -55°C to +150°C.

Suitable for

• Electrical connections in power distribution systems
• Industrial machinery and equipment
• Automotive and transportation applications
• Renewable energy installations

Key specifications

• Cable Cross-Section: 120 mm²
• Bolt Hole Diameter: 16.5 mm
• Bolt Size: M16
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Connection Type: Crimp
• Design: Tubular, Straight
• Standard Compliance: DIN 46235
• Conductor Type: Stranded Copper Conductors
• Operating Temperature Range: -55°C to +150°C
• Number of Holes: 1
• RoHS Compliant: Yes

Recommendations

For optimal crimping results, use Klauke hexagonal crimping tools. Ensure proper conductor stripping and insertion before crimping. Always follow applicable electrical codes and safety guidelines.
