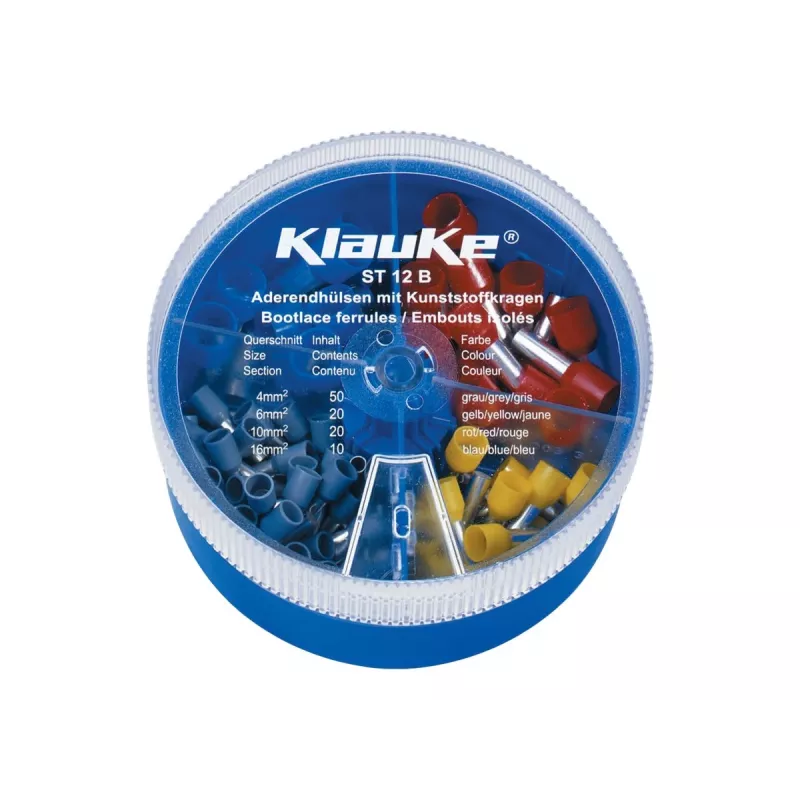

KLAUKE sada izolovaných káblových koncoviek 4-16 mm², 275 ks, DIN 46228 časť 4

This KLAUKE wire ferrule assortment set provides a comprehensive selection of insulated ferrules for professional wiring applications. The set includes 275 pieces covering sizes from 4 mm² to 16 mm², all compliant with DIN 46228 Part 4. Ideal for electrical installations, control cabinets, and industrial maintenance, these ferrules ensure reliable and secure connections.

Advantages

High-quality electrolytic copper with electro-tin plating ensures excellent conductivity and corrosion resistance. The polypropylene insulation provides durability and a wide operating temperature range. Color-coded per DIN standard for easy size identification. Funnel entry simplifies wire insertion, reducing installation time.

Suitable for

• Electrical panel building
• Control cabinet wiring
• Industrial automation
• Professional electricians and technicians

Key specifications

• Product Type: Wire Ferrule Assortment Set
• Insulation: Insulated
• Standard: DIN 46228 Part 4
• Wire Cross-Section Range: 4 - 16 mm²
• Ferrule Material: Electrolytic Copper, Electro-tin plated
• Insulation Material: Polypropylene (PP)
• Color Coding: DIN Standard
• Included Sizes: 4 mm² (Grey, 100 pcs), 6 mm² (Blue, 100 pcs), 10 mm² (Yellow, 50 pcs), 16 mm² (Red, 25 pcs)
• Total Pieces: 275
• Max. Operating Temperature: +105 °C
• Max. Voltage Rating: 600 V
• Insulation Flammability Rating: UL 94 V-2
• Funnel Entry: Yes
• Storage Case Material: Plastic

Recommendations

For best results, use with a compatible crimping tool designed for insulated ferrules. Always follow local electrical codes and manufacturer guidelines.
