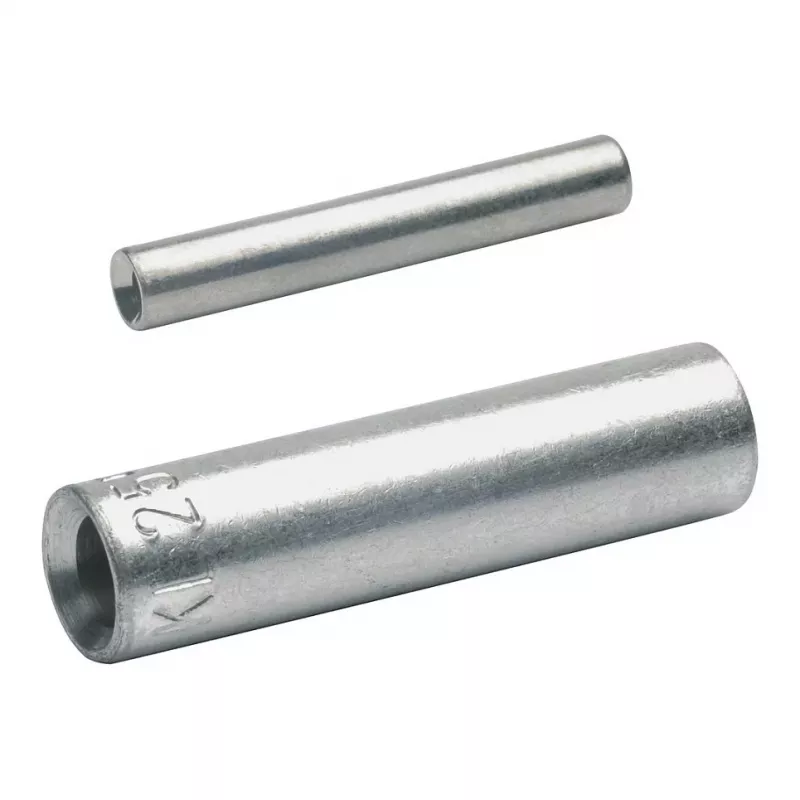

Klauke SV16 spojka pre plný vodič 16 mm², neizolovaná, pocínovaná meď

The Klauke SV16 is a high-quality butt connector designed for solid conductors with a cross-section of 16 mm². Manufactured from electrolytic copper (E-Cu) with a tinned surface, this non-insulated connector ensures reliable and durable electrical connections. It is suitable for crimping and complies with DIN 46234 standards, making it ideal for electrical wiring, panel building, and industrial installations.

Advantages

This butt connector offers excellent conductivity and corrosion resistance thanks to its tinned copper construction. It is halogen-free and RoHS compliant, ensuring environmental safety. The connector is easy to install using standard crimping tools and provides a secure, long-lasting connection.

Suitable for

• Electrical wiring and cable assemblies
• Panel building and switchgear
• Industrial installations and machinery
• Automation and control systems

Key specifications

• Connector Type: Butt Connector
• Insulation: Non-insulated
• Conductor Cross-Section: 16 mm²
• Conductor Type: Solid Conductor
• Connection Method: Crimp
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tinned

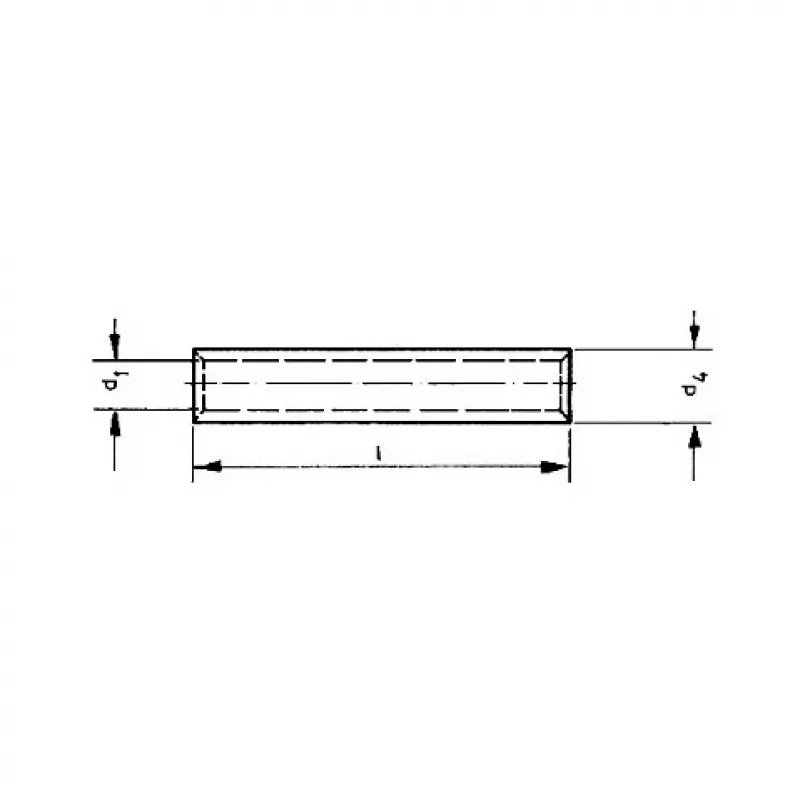

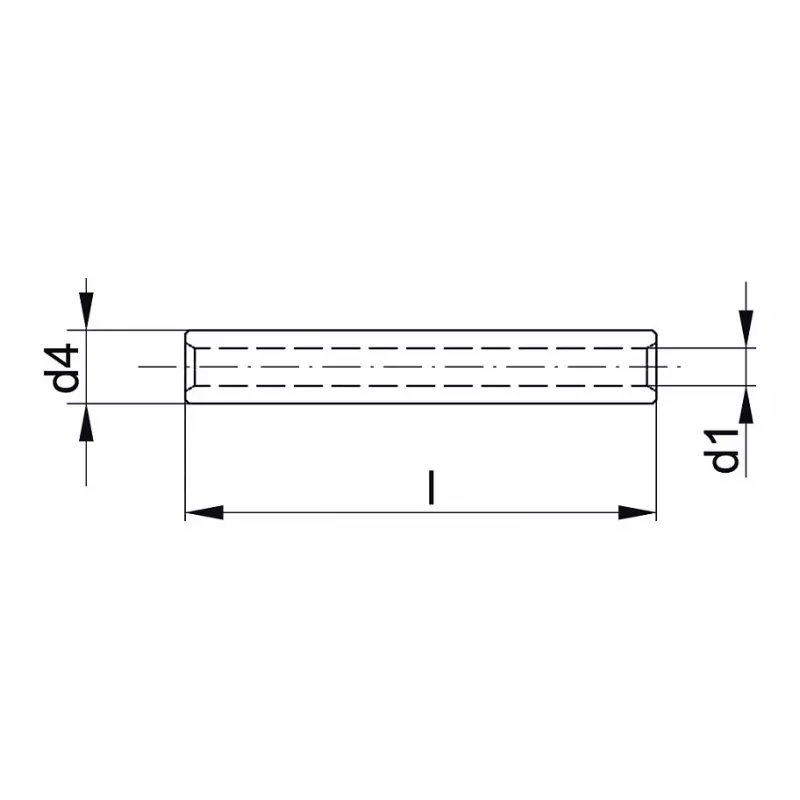

• Length: 40 mm
• Inner Diameter: 5.8 mm
• Outer Diameter: 8.5 mm
• Color: Metallic (Tinned)
• Operating Temperature Range: -55°C to +150°C
• Standards: DIN 46234
• RoHS Compliant: Yes
• Halogen-Free: Yes

Recommendations

For optimal performance, use with appropriate crimping tools and ensure the conductor is properly stripped before insertion. This connector is not suitable for stranded conductors.
