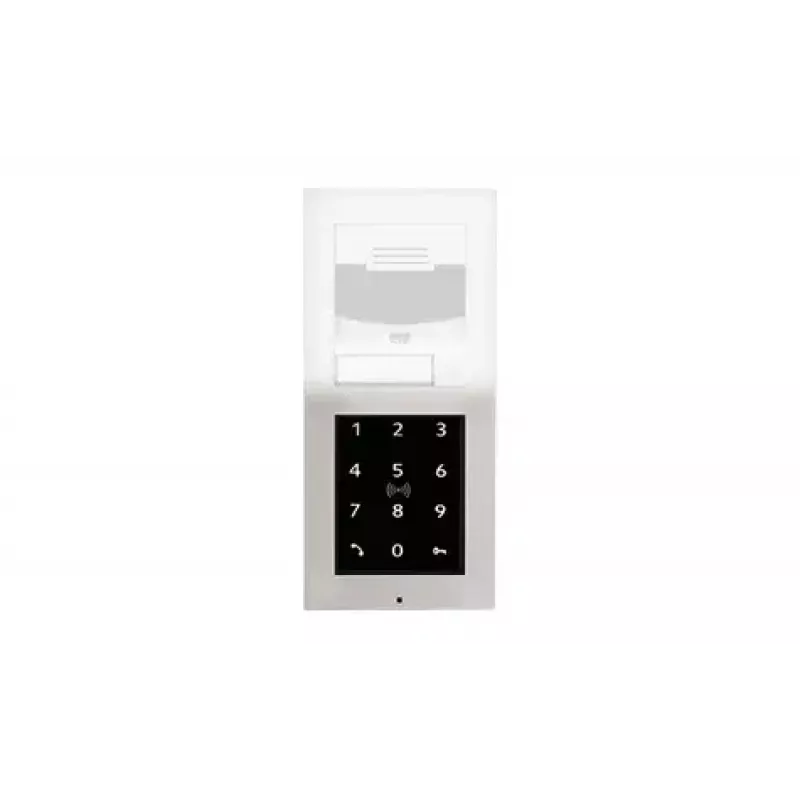

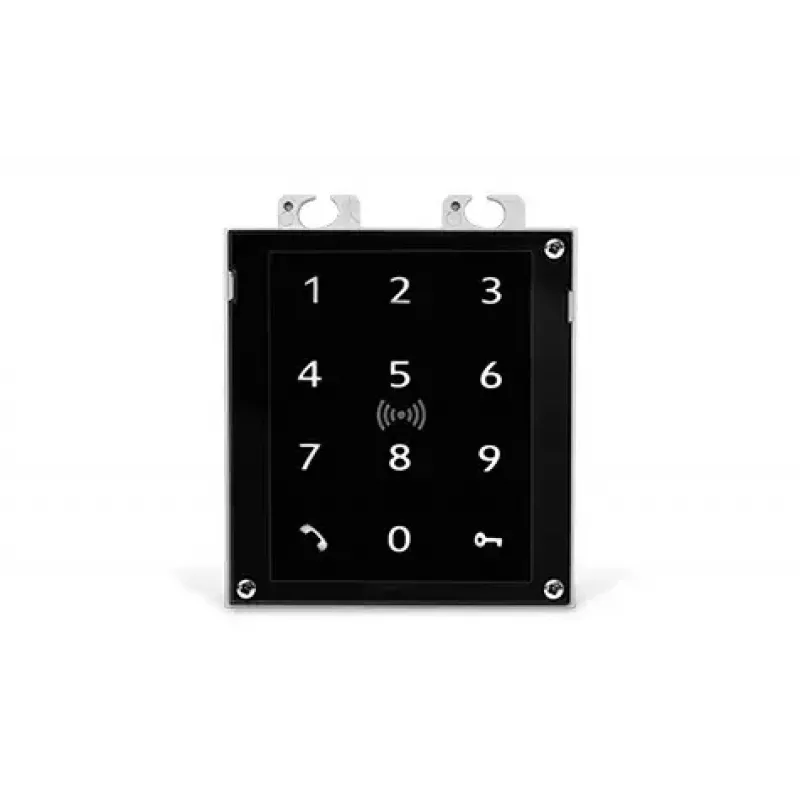

Klávesnica 2N 9155083

The 2N 9155083 Keypad is a module designed for 2N IP Verso and 2N LTE Verso intercoms that integrates a capacitive touch keypad with a secured multi-frequency RFID reader. The device supports access control functions including PIN entry via the touch keypad and card reading across several RFID frequencies, allowing compatibility with basic 125 kHz cards as well as 13.56 MHz smart and secured cards. Its black finish and compact form factor enable straightforward integration with compatible 2N systems.

Advantages

The module combines capacitive touch input and an RFID reader in a single unit, reducing installation complexity. The multi-frequency reader broadens compatibility with a wide range of RFID media from unsecured 125 kHz tags to secured 13.56 MHz smart cards. PIN verification through the keypad adds an additional security layer. The product is manufactured for seamless compatibility with 2N IP Verso and 2N LTE Verso intercom panels.

Suitable for

• Entry control on residential and commercial intercom installations
• Access systems requiring both card and PIN authentication
• Upgrading existing 2N IP Verso or LTE Verso panels with touch input and RFID

Key specifications

• Manufacturer: 2N
• Model / MPN: 9155083
• EAN: 8595159513379
• Compatibility: 2N IP Verso, 2N LTE Verso
• Input: Capacitive touch keypad for PIN entry
• RFID: Multi-frequency reader supporting 125 kHz and 13.56 MHz cards
• Colour: Black

How to use

Install the module into a compatible 2N IP Verso or LTE Verso mounting slot following the intercom manufacturer’s installation instructions. Connect the module to the panel bus and configure access credentials in the 2N administration interface. Users present RFID cards to the reader for card-based access or enter a PIN on the capacitive keypad for PIN-based verification. The keypad and reader can be used together to require both card and PIN for two-factor access control if configured.

Recommendations

Use the module with supported 2N panels and configure access policies in the 2N management software. For secured environments, enable two-factor authentication (card + PIN) and register only trusted RFID credentials. Follow 2N’s installation and maintenance guidelines to ensure reliable operation.
