Kliešte Gedore 1552074 šírka 66 mm výška 33 mm hmotnosť 204 g

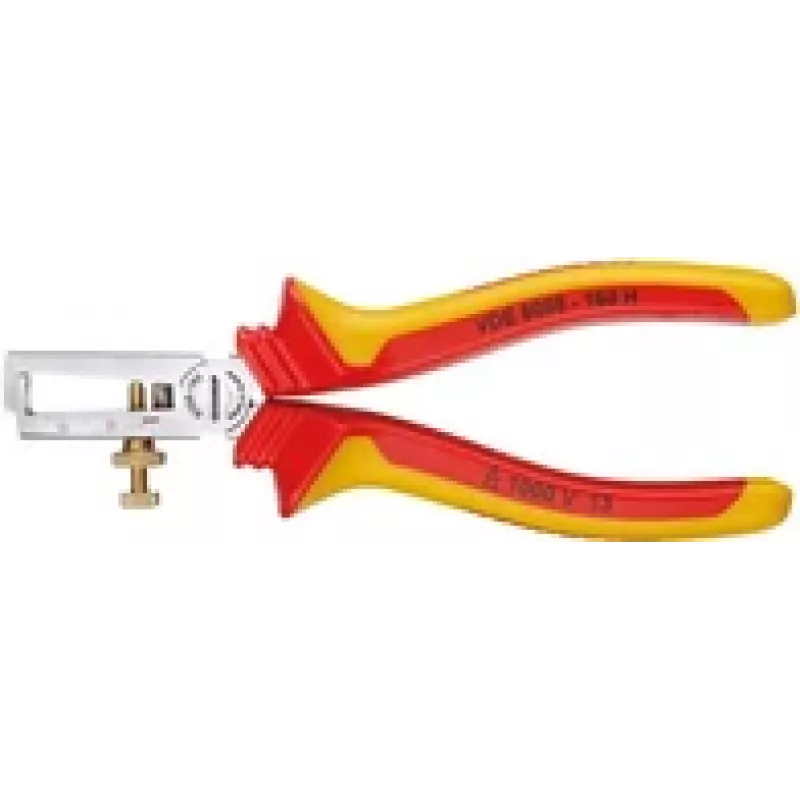

Plier Gedore 1552074 is a compact hand tool with a width of 66 mm, height of 33 mm and weight of 204 g. It is designed for working with electrical and general-purpose cables and for precision gripping and manipulation in confined spaces. The tool features an opening stop, a return spring and a brass adjusting screw, and is manufactured from Gedore special hardened and tempered steel with a chrome-plated finish. Handles are fitted with VDE insulating sleeves rated for use up to 1000 V in accordance with EN 60900/IEC 60900.

Advantages

The plier combines hardened and tempered Gedore steel with chrome plating for corrosion resistance and durability. VDE-insulated handles provide electrical protection up to 1000 V, while the opening stop and spring allow controlled operation. A brass adjusting screw enables fine adjustment for gripping cables from 0.8 to 6.0 mm².

Suitable for

Key specifications

How to use

Grip the plier by the insulated handles and adjust the brass screw to set the desired opening for the cable diameter. Use the jaws to hold, strip or position cables within the 0.8–6.0 mm² range. The opening stop and spring assist in controlled one-hand operation. Follow standard safe working practices when working on or near live circuits; only use the insulation for voltage protection up to the specified rating.

Recommendations

Inspect the tool before use for any damage to the VDE sleeves or chrome finish. Do not exceed the rated cable size or voltage protection. Clean and lightly lubricate the pivot periodically and store the plier dry to maintain performance and insulation properties.
