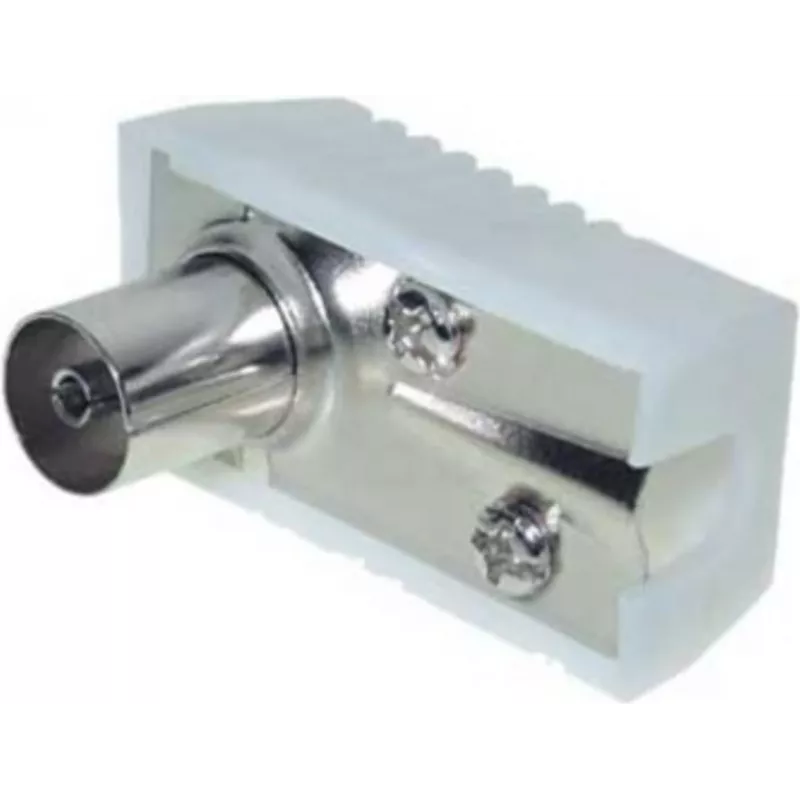

Koaxiálna uhlová spojka ShiverPeaks 82021 — pravouhlý koaxiálny spojovací prvok pre anténne systémy

The Coaxial Angle Coupling ShiverPeaks 82021 is a right-angle coaxial connector intended for antenna and RF cabling tasks where space constraints require a perpendicular change in cable direction. It delivers a compact mechanical reorientation of coaxial lines while maintaining electrical continuity, allowing antennas, cables and devices to be connected in confined installations without excessive bending of coaxial cable.

Advantages

This right-angle coaxial connector reduces strain on cables by redirecting the coaxial path at 90°, helping to preserve connector integrity and signal performance. Its compact form factor supports tighter cable routing and neater installations behind equipment or inside enclosures. The design provides a stable mechanical junction that facilitates secure mating between antenna leads and RF components while minimizing the footprint of the connection.

Suitable for

• Reorienting antenna feeds in wall-mounted or ceiling installations
• Routing coaxial lines in cabinets, enclosures, and rack equipment
• Connecting antennas to routers, modems, or external RF devices in tight spaces
• Field installs where reduced cable bending is necessary to maintain signal integrity

Key specifications

• Connector type: right-angle coaxial coupling suitable for standard antenna cabling
• Orientation: 90-degree mechanical reorientation to change cable direction
• Color and finish: white housing for discreet installations
• Compatibility: designed for typical antenna and RF coaxial lines used in Wi‑Fi and related systems
• Mechanical design: compact profile for limited-space routing and reduced cable stress

How to use

Align the coupling with the mating coaxial connector on the antenna or device and gently push until the connectors seat fully. Ensure the connector is oriented to provide the desired 90° change in cable direction before making the mechanical engagement. After connection, verify that the cable is not kinked and that the coupling provides a smooth transition; secure the cable as needed with clips or ties to relieve strain on the joint and maintain stable RF contact.

Recommendations

For best results, use the coupling where direct bending of coaxial cable would exceed manufacturer-recommended bend radii. Avoid exposing the connector to excessive moisture or corrosive environments and check mechanical fittings periodically to ensure continued electrical continuity and a clean, low-loss RF path.
