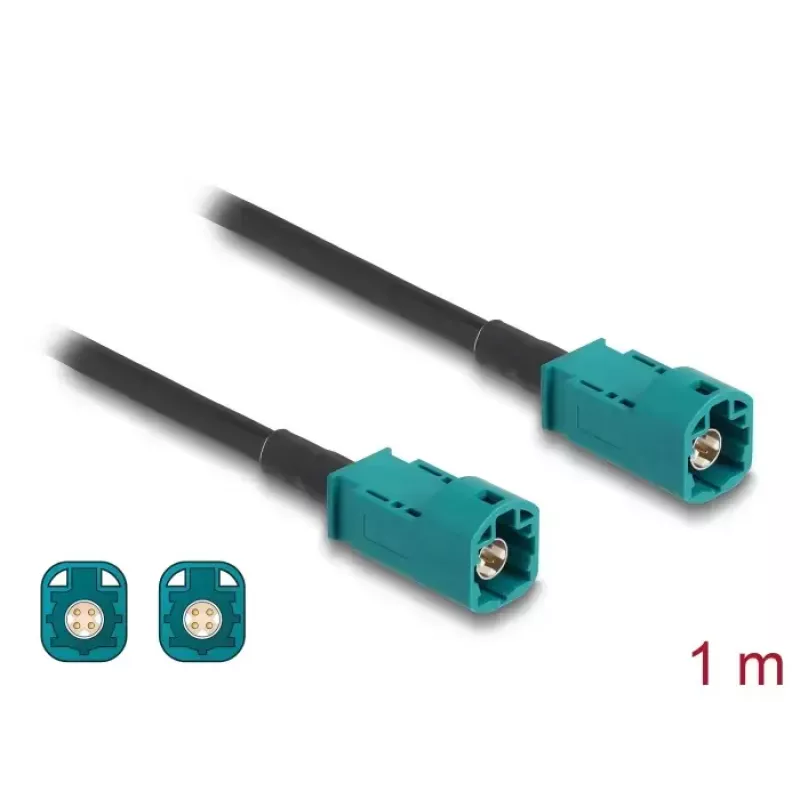

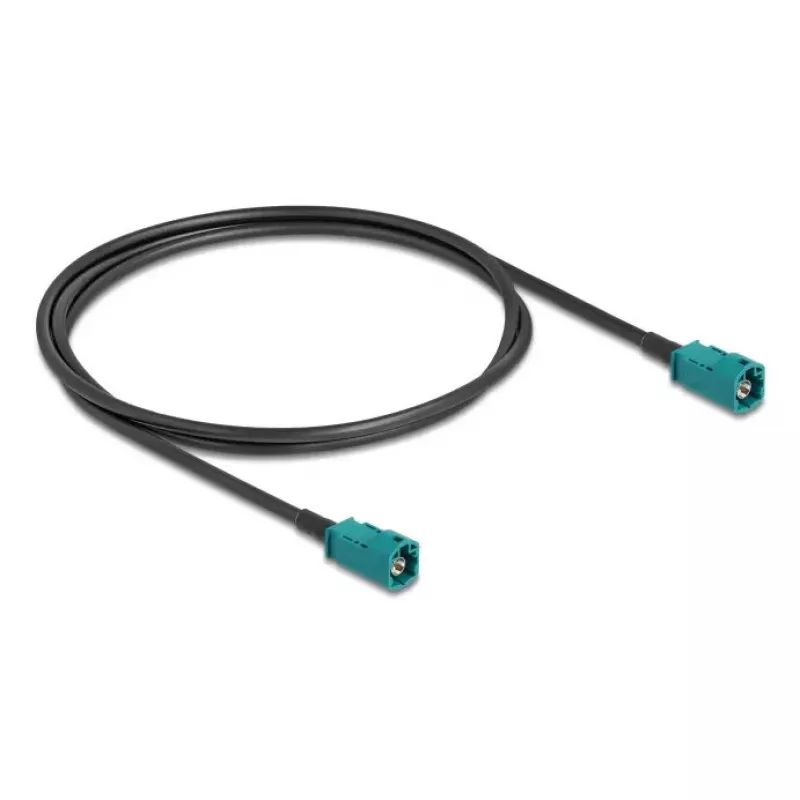

Koaxiálny kábel DELOCK 90678 HSD Z na HSD Z, 1 m, čierny/modrý

The DELOCK 90678 coaxial cable is a 1 m interconnect with HSD Z connectors on both ends, designed for high-speed data and video transmission in automotive and fixed installations. The cable features a compact form factor and a black/blue jacket for easy identification. Constructed to meet the electrical requirements of HSD Z systems, it provides a controlled impedance path suitable for reliable signal transfer between compatible devices.

Advantages

This cable delivers a balanced combination of compact size and electrical performance for short-distance intra-system connections. The HSD Z male straight connectors on both ends ensure consistent mating with HSD Z sockets and simplify routing in confined spaces. Its 100 Ω characteristic impedance supports signal integrity for data and video links where matched impedance is required.

Suitable for

Key specifications

How to use

Ensure both mating sockets accept HSD Z male straight connectors before installation. Route the cable following vehicle or equipment manufacturer guidelines to avoid sharp bends and pinch points; maintain the minimum bend radius recommended for automotive coaxial assemblies. Push each connector fully into the corresponding receptacle until a secure mechanical engagement is felt. For best electrical performance, avoid excessive pulling on the cable and keep connectorized ends free from contaminants during installation.

Recommendations

Store unused cables in a dry, dust-free environment and protect connector ends with caps or covers when not connected. When integrating into vehicle systems, secure the cable with appropriate clips or ties to prevent movement and reduce the risk of wear. Verify system compatibility with a 100 Ω coaxial link to maintain signal integrity.
