Koaxiálny konektor DeLOCK 90356

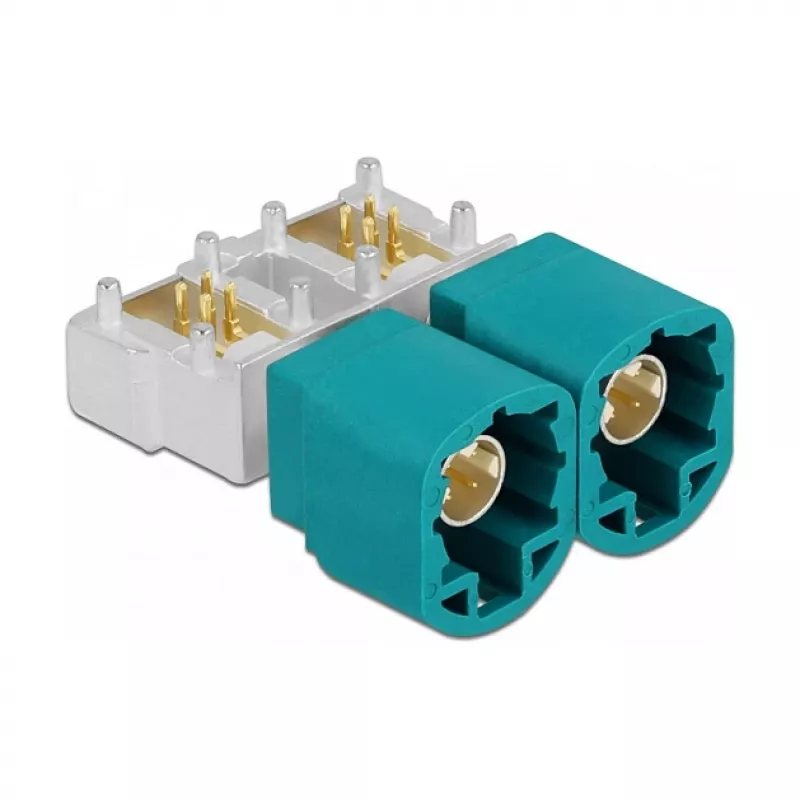

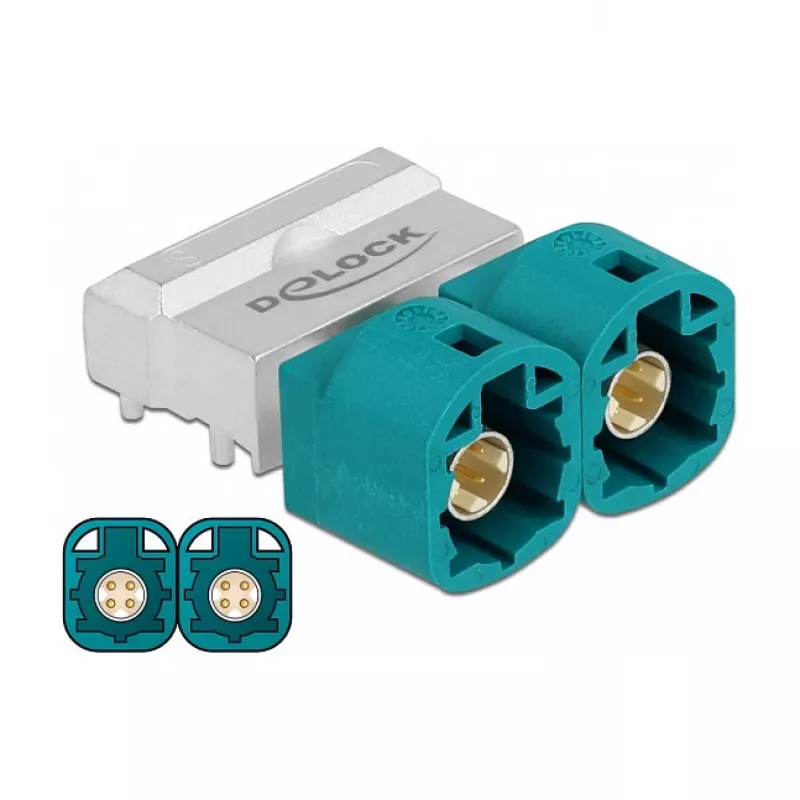

The DeLOCK 90356 coaxial connector is designed for reliable connections of electronic components in vehicles and other electronic applications. It features HSD Z male connectors on both ends and comes in a compact, blue polybag packaging. Dimensions are 23 mm width, 30 mm depth and 14 mm height, making it suitable for installations with limited space.

Advantages

The HSD Z male-to-male configuration provides stable coaxial signal transmission. Compact dimensions and a blue colour make the connector easy to identify and install in tight setups. Packaged in a polybag, the product is protected during storage and transport.

Suitable for

Key specifications

How to use

Align the HSD Z male connectors with the corresponding female HSD Z ports and insert firmly until the connection is seated. Ensure connectors are oriented correctly to avoid damage to pins. Use in accordance with vehicle manufacturer guidance or system wiring diagrams and secure the cable to prevent strain on the connector.

Recommendations

Verify compatibility with the target device’s HSD Z interface and the required signal type before installation. Avoid excessive bending near the connector and protect the connection from moisture and contaminants in automotive environments.
