Koaxiálny konektor DeLOCK 90526

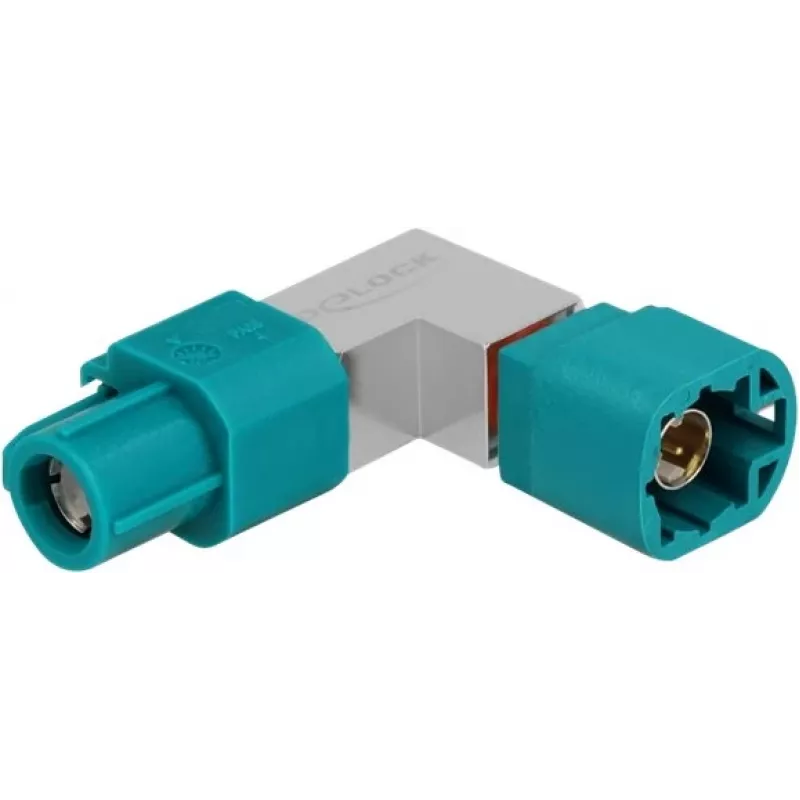

The DeLOCK 90526 coaxial connector is designed for reliable signal transmission in automotive and electronic applications. It features HSD Z connectors on both ends in a male configuration and comes in a compact blue polybag package. The connector's small dimensions make it suitable for tight installation spaces while maintaining stable coaxial connectivity.

Advantages

This coaxial connector uses HSD Z male contacts on both ends to ensure consistent connection quality. Its compact dimensions (29 × 35 × 12 mm) allow installation in confined areas. The product is supplied in a protective polybag and has a blue exterior for easy identification.

Suitable for

Key specifications

How to use

Align each HSD Z male connector with the corresponding female HSD Z socket and insert until secure contact is made. Verify mechanical retention and signal continuity after installation. Use standard procedures for routing and securing coaxial cables to avoid strain on the connector.

Recommendations

For reliable long-term performance, avoid excessive bending near the connector, ensure mating parts are free of debris, and confirm compatibility with the vehicle or device's HSD Z interface before installation.
