Koaxiálny konektor N-typ DeLOCK 90017

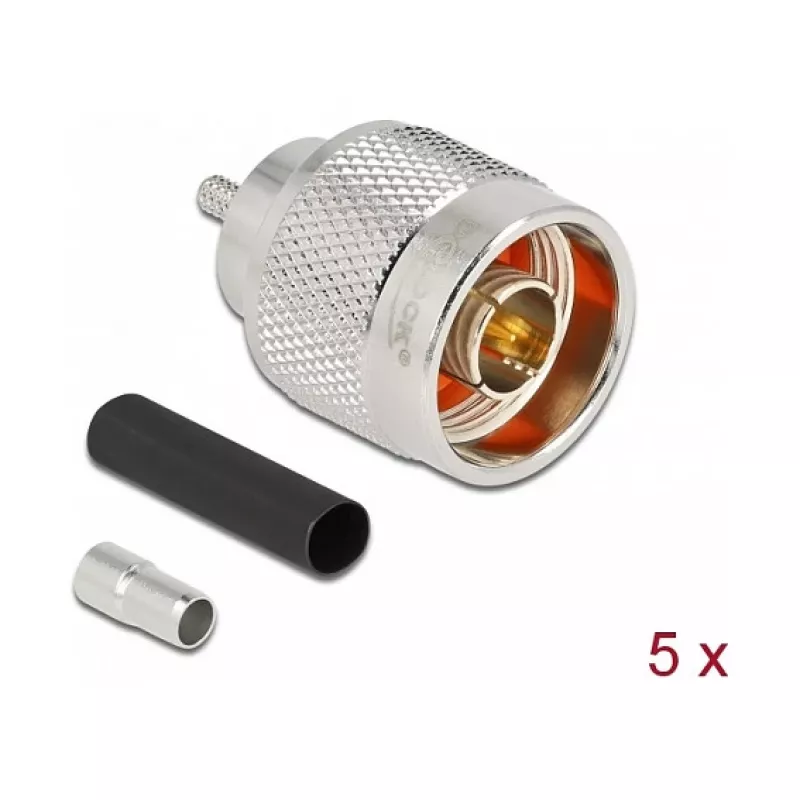

The DeLOCK 90017 N-type coaxial connector is designed for 50 Ω impedance applications in radio frequency systems. It includes a matching shrink tube and nickel-plated contacts to provide durable, corrosion-resistant signal transmission. With compact dimensions (20 mm × 30.3 mm × 20 mm) and a pack quantity of 5 pieces, this connector is suitable for multiple installations and project use.

Advantages

The connector offers 50 Ω impedance compatibility and nickel-plated contacts for improved conductivity and corrosion resistance. Its compact size allows integration into limited-space assemblies, and the included shrink tube ensures a secure and protected cable termination. Supplied in a pack of five, it supports bulk installation and replacement needs.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket and dielectric to the dimensions recommended for N-type terminations. Slide the supplied shrink tube onto the cable, fit and secure the connector according to standard N-type assembly procedures, and apply heat to the shrink tube to provide strain relief and environmental protection. Verify continuity and impedance match with appropriate RF test equipment after assembly.

Recommendations

Use the connector in environments and systems designed for 50 Ω impedance to maintain signal integrity; avoid exposure to severe mechanical stress and corrosive environments despite the nickel plating. Inspect assembled terminations and test for proper electrical performance before deployment.
