Koaxiálny konektor N-typ DeLOCK 90020

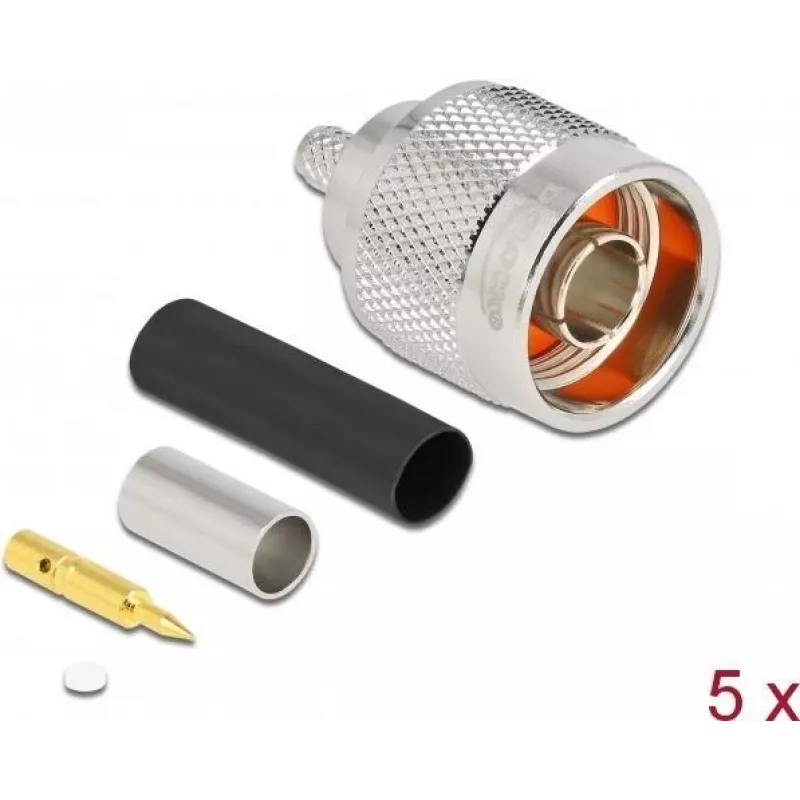

The DeLOCK 90020 N-type coaxial connector with matching shrink tube is intended for connecting components in radio frequency technology. It is designed for 50 Ω impedance applications and comes in a compact metal housing with nickel-plated contacts for durability and reliable electrical performance. The pack contains five identical connectors, each finished in silver colour and suitable for use where robust RF connections are required.

Advantages

The N-type connector provides stable 50 Ω impedance matching and nickel-plated contacts to resist corrosion and ensure consistent signal transfer. Its compact dimensions (approximately 20 mm width, 30 mm depth, 20 mm height) allow easy installation in confined spaces. Supplied as a set of five, the product supports multiple terminations or small projects without separate purchases.

Suitable for

Key specifications

How to use

Prepare the coaxial cable according to the connector manufacturer's stripping dimensions, slide the shrink tube over the cable, attach the N-type connector to the cable end and secure the contact and outer conductor as required. Position the matching shrink tube over the assembled joint and apply heat to shrink it for mechanical protection. Verify the connection for continuity and correct impedance before placing the assembly into service.

Recommendations

For reliable RF performance, use this connector in 50 Ω systems only, ensure proper cable preparation and secure mechanical assembly, and avoid excessive bending near the connector to maintain signal integrity.
