Koaxiálny konektor samec DeLOCK 65858

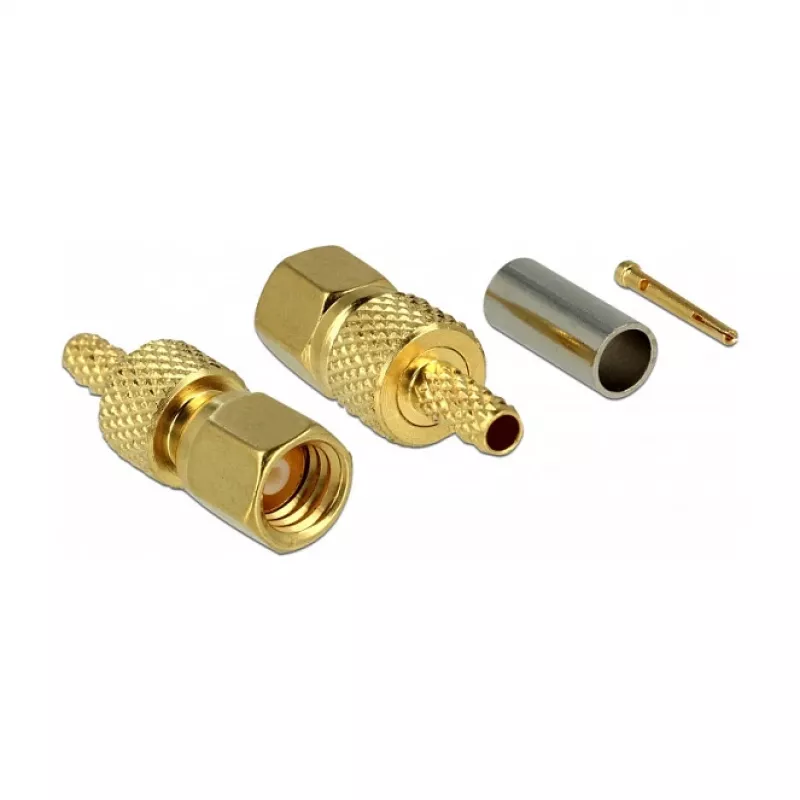

The DeLOCK 65858 coaxial connector is an SMC-type plug designed for 50 Ω radio frequency applications. With a 6 mm outer diameter and an overall depth of 18.8 mm, this single-piece, gold-coloured connector is supplied in a polybag and intended for use where a compact, standard-impedance SMC connection is required.

Advantages

The SMC form factor with 50 Ω impedance provides compatibility with RF components that follow the same standard. Its 6 mm outer diameter and 18.8 mm depth offer a compact footprint suitable for tight installations. The gold-coloured finish supports reliable metal-to-metal contact and corrosion resistance in typical application environments.

Suitable for

• Connecting SMC-based RF modules and components
• Low- to mid-frequency coaxial signal paths requiring 50 Ω impedance
• Equipment or test setups where a compact SMC plug is needed

Key specifications

• Connector type: SMC
• Impedance: 50 Ω
• Outer diameter: 6 mm
• Depth: 18.8 mm
• Colour: Gold
• Packaging: Polybag, single piece
• Brand: DELOCK, MPN: 65858, EAN: 4043619658589

How to use

Align the SMC plug with the corresponding SMC jack and insert straight to ensure proper mating of centre conductors and outer contact. Apply gentle axial pressure until the connector seats; avoid excessive force. For removal, pull straight out while supporting the mating connector to prevent stress on cables or PCB-mounted jacks.

Recommendations

Use the connector in systems specified for 50 Ω impedance to maintain signal integrity. Inspect mating surfaces for contamination or damage before connecting and store the product in its polybag until installation to prevent contamination.
