Koaxiálny konektor samec DeLOCK 89689

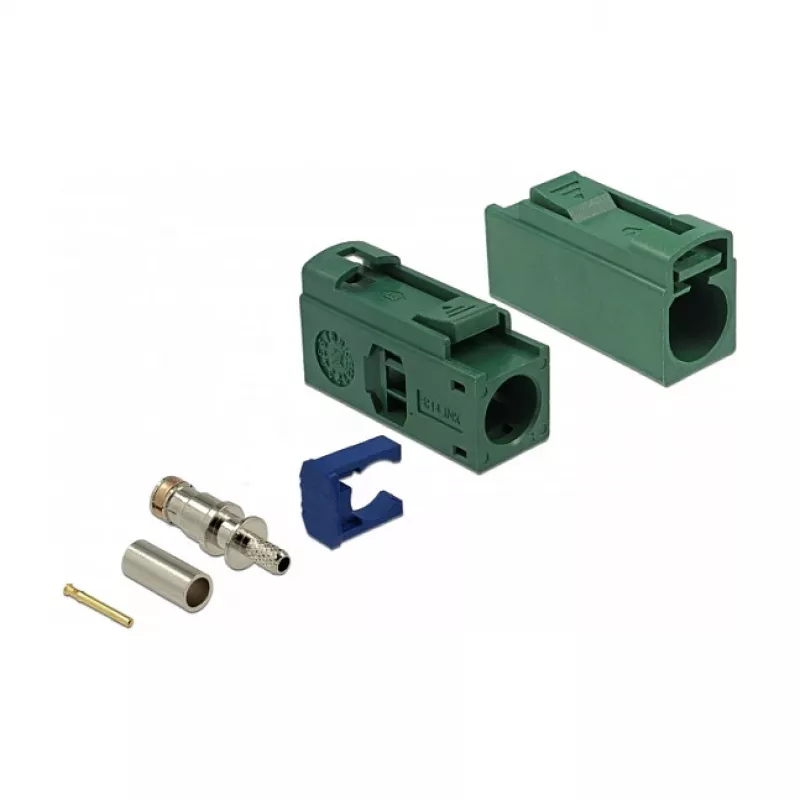

The DeLOCK 89689 coaxial connector is a compact FAKRA E male jack with gold-plated contacts designed for reliable signal transmission in radio frequency applications. Its small dimensions (13.8 mm × 25 mm × 9.5 mm) make it suitable for tight installation spaces, and it is supplied as a single unit in a polybag. The connector is finished in green and intended for use where standard FAKRA E interfaces are required.

Advantages

Gold-plated contacts improve conductivity and corrosion resistance, while the FAKRA E form factor ensures compatibility with matching FAKRA female connectors. The compact size simplifies installation in confined spaces and the single-unit packaging allows easy replacement or integration into custom cabling setups.

Suitable for

Key specifications

How to use

Align the DeLOCK 89689 FAKRA E male connector with the corresponding FAKRA E female receptacle and insert until the connector locks into place. Ensure that contacts are clean and free of debris before mating. For cable assembly, follow the vehicle or device manufacturer’s wiring and crimping instructions to maintain signal integrity.

Recommendations

Use in environments and applications that match FAKRA E specifications; avoid exposing contacts to moisture or corrosive substances and handle the connector by the housing to prevent contact contamination.
