Koaxiálny konektor samec DeLOCK 89714

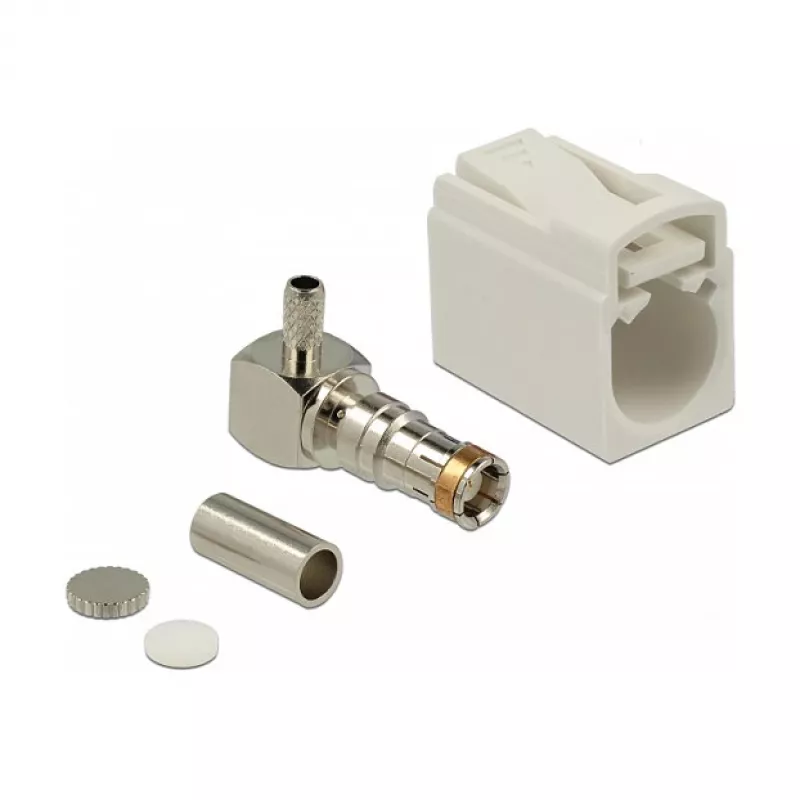

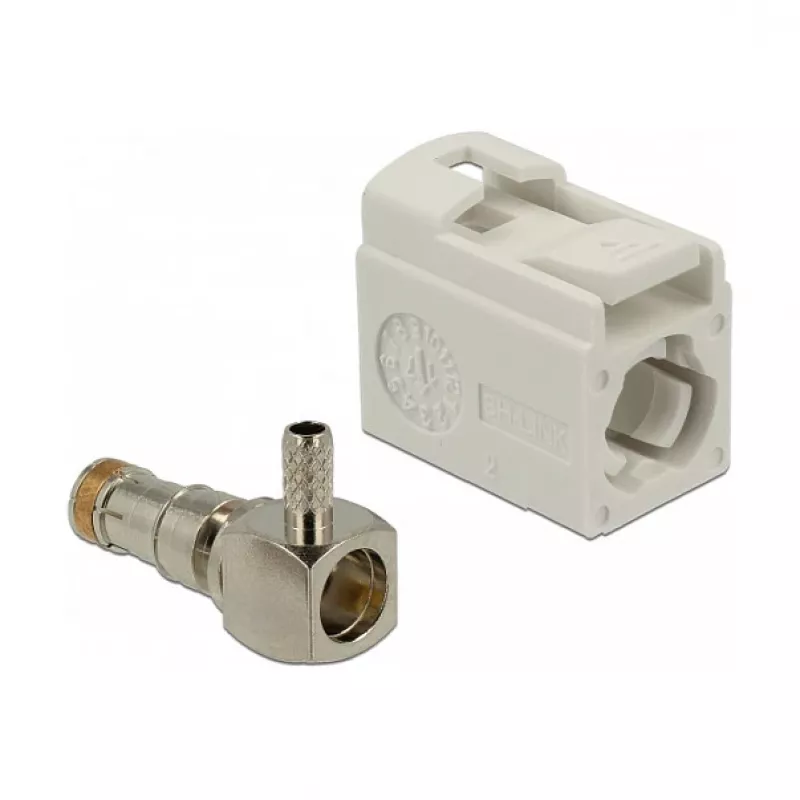

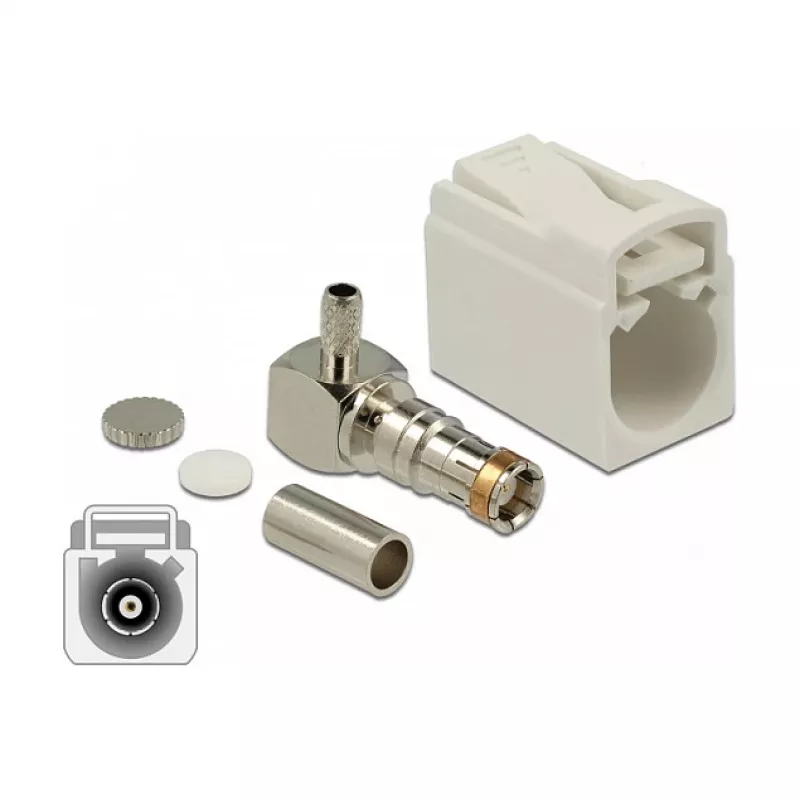

The DeLOCK 89714 coaxial connector is a right-angled FAKRA B male connector designed for reliable connections in automotive and telecommunications radio frequency systems. The compact unit measures 13.8 mm in width, 21.5 mm in depth and 9.5 mm in height and is supplied in a polybag. The connector body is stainless steel with white elements to match typical FAKRA coding.

Advantages

The 90° angle of the FAKRA B male connector enables space-saving installations in confined environments. Constructed with a stainless steel finish, it offers stable mechanical properties and consistent mating with FAKRA B counterparts. The connector is supplied in a protective polybag to prevent contamination prior to installation.

Suitable for

Key specifications

How to use

Align the FAKRA B male connector with the corresponding FAKRA B female socket and press until it clicks into place, ensuring a secure mechanical and RF connection. For removal, depress the release mechanism (if present) or carefully pull the connector straight out while supporting the mating component to avoid strain on the cable or socket.

Recommendations

Use in applications matching FAKRA B specifications and avoid excessive mechanical bending near the connector to maintain RF performance. Store in the supplied polybag until installation to keep contacts clean.
