Koaxiálny konektor TNC DELOCK 91765 — TNC konektor samec/samica pre koaxiálny kábel

This plug by Delock with matching shrink tube is suitable for connecting components of radio frequency technology. DELOCK 91765 is a TNC coaxial connector designed for connecting and terminating coaxial cables. The compact threaded TNC interface provides reliable RF signal transmission and secure mechanical connection, suitable for radio, antenna, GPS, test equipment and communication installations where a threaded coaxial coupling is required.

Advantages

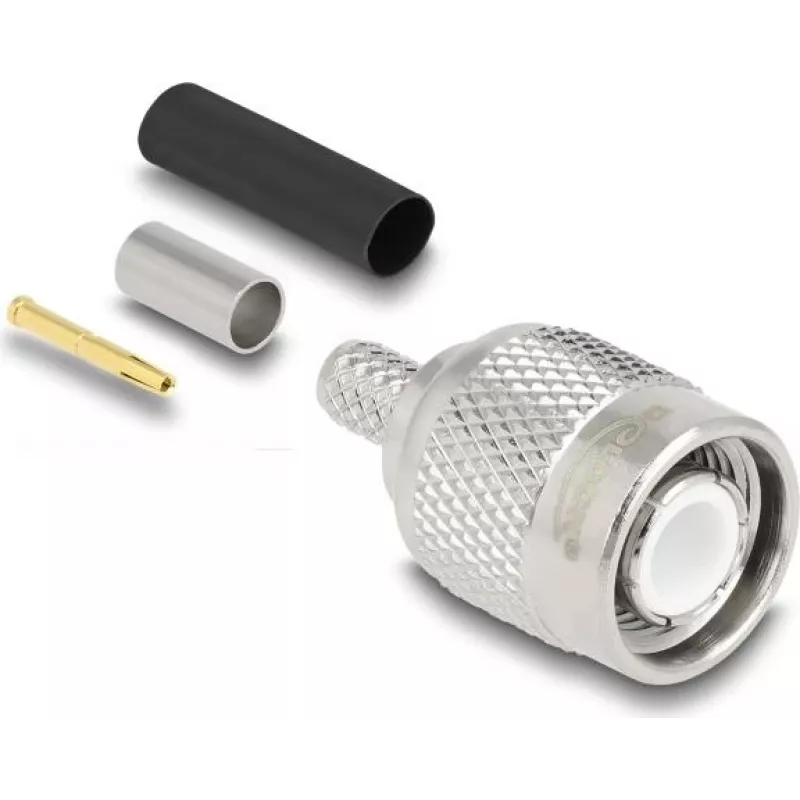

The TNC male/female connector offers a threaded coupling that ensures stable mechanical contact and reduced risk of accidental disconnection. It is specified for 50 Ω impedance and features a silver finish for corrosion resistance and consistent signal conductivity. The package includes one connector and a matching shrink tube for insulated, strain-relieved terminations.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping outer jacket, braid and dielectric to the dimensions appropriate for a TNC termination. Slide the supplied shrink tube onto the cable before assembling the connector. Fit the connector body and centre conductor according to standard TNC assembly practice, secure the threaded coupling to the mating connector and apply heat to the shrink tube to provide insulation and strain relief.

Recommendations

Use the connector in installations that require a reliable threaded RF connection and maintain proper cable preparation and torque on the threaded coupling to ensure optimal signal performance. Avoid using in environments with incompatible voltages or without appropriate sealing if exposed to moisture.
